Product description
^- Supplied with display and shackles
Sensor/display link: ZigBee 2.4 GHz (80 m)
Accuracy: +/- 0.2%.
Sensor electrical protection class: IP 65
Safety coefficient: minimum 4
Operating temperature: -20 to 40°C
Product details
^| Référence | CMU T | Précision (+/-) kg | Affichage minimum kg | Incrément kg | Affichage maximum kg | Poids kg |
| LLXh 15T | 15 | 30 | 25 | 5 | 16500 | 4 |
| LLXh 25T | 25 | 50 | 50 | 10 | 27500 | 6,60 |
| LLXh 50T | 50 | 100 | 100 | 20 | 55000 | 15,10 |
| LLXh 100T | 100 | 200 | 250 | 50 | 110000 | 46 |
| LLXh 250T | 250 | 500 | 500 | 100 | 275000 | 215 |

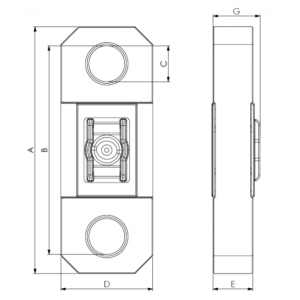

| Dimensions du dynamomètre | A mm | B mm | C mm | D mm | E mm | F mm | h mm | i mm | j mm |
| LLXh 15T | 320 | 247,5 | 47,5 | 130 | 58 | 48 | 26,7 | 131 | 82 |
| LLXh 25T | 360 | 277 | 56 | 134 | 68 | 58 | 26,7 | 131 | 82 |
| LLXh 50T | 440 | 338 | 72 | 164 | 98 | 86 | 26,7 | 131 | 82 |
| LLXh 100T | 660 | 488 | 108 | 260 | 118 | 104 | 26,7 | 131 | 82 |
| LLXh 250T | 905 | 685 | 150 | 424 | 248 | 190 | 26,7 | 131 | 82 |
- Supplied with display and shackles
Sensor/display link: ZigBee 2.4 GHz (80 m)
Accuracy: +/- 0.2%.
Sensor electrical protection class: IP 65
Safety coefficient: minimum 4
Operating temperature: -20 to 40°C
