Product description

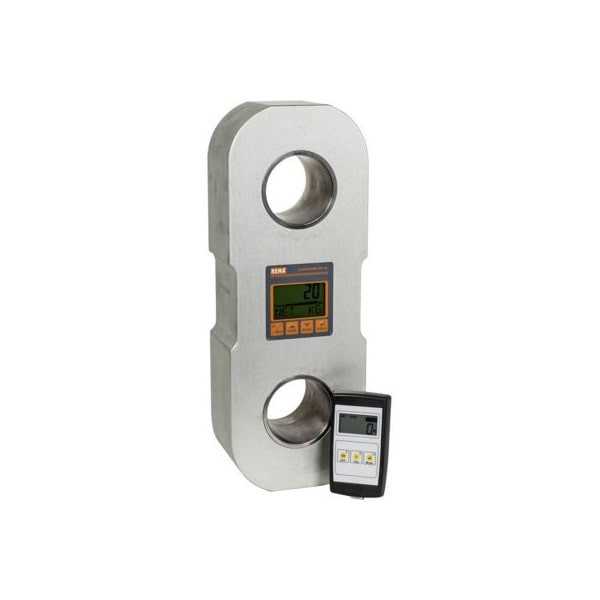

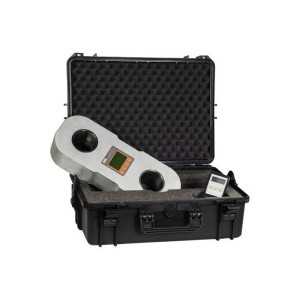

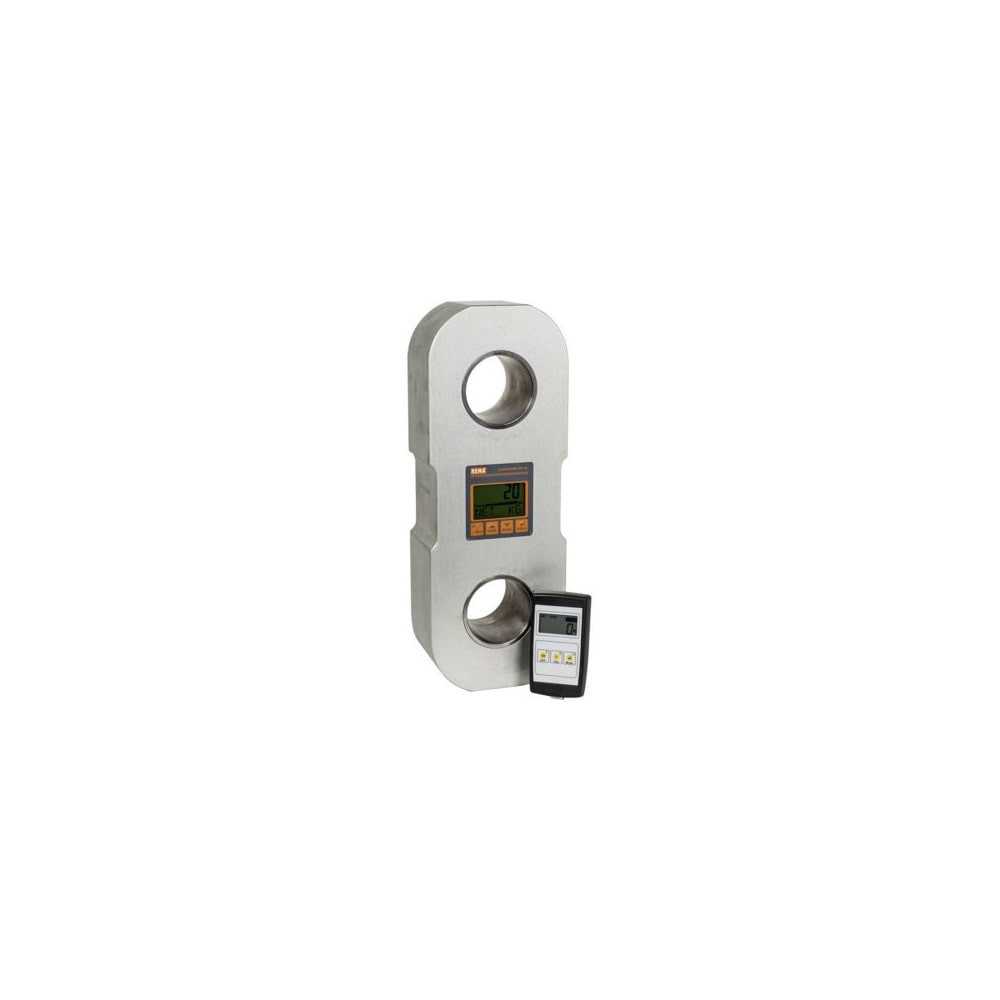

^The electronic dynamometer with remote control, model DSD04-05TX is a measuring device for lifting operations. The lifting product is supplied with a lyre shackle and a remote reader. The housing of the dynamometer is made of anodized aluminum, which offers better resistance to wear, corrosion and heat. The remote control is wireless with a maximum range of 50 meters.
Its overload indication is 10%. It has a safety factor of 5. The load cell is available in several versions with a WLL ranging from 5,000 to 50,000 kg and a resolution of 2 to 20 kg depending on the selected WLL.
For more information on our lifting product, please consult our customer service.
Product details
^| Référence | CMU kg | Résolution kg | CMU Manille lyre kg | Poids kg |
| DSD04-05TX/RX | 5000 | 2 | 6500 | 1,85 |
| DSD04-10TX/RX | 10000 | 5 | 12000 | 3,60 |
| DSD04-25TX/RX | 25000 | 10 | 25000 | 7 |
| DSD04-50TX/RX | 50000 | 20 | 55000 | 17 |
| Dimensions du dynamomètre | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| DSD04-05TX/RX | 232 | 85 | 54 | 27 | 32 | 168 | 32 |
| DSD04-10TX/RX | 315 | 100 | 59 | 39 | 49 | 203 | 56 |
| DSD04-25TX/RX | 350 | 126 | 70 | 55 | 70 | 210 | 70 |
| DSD04-50TX/RX | 450 | 165 | 98 | 77 | 98 | 260 | 95 |
