Product description

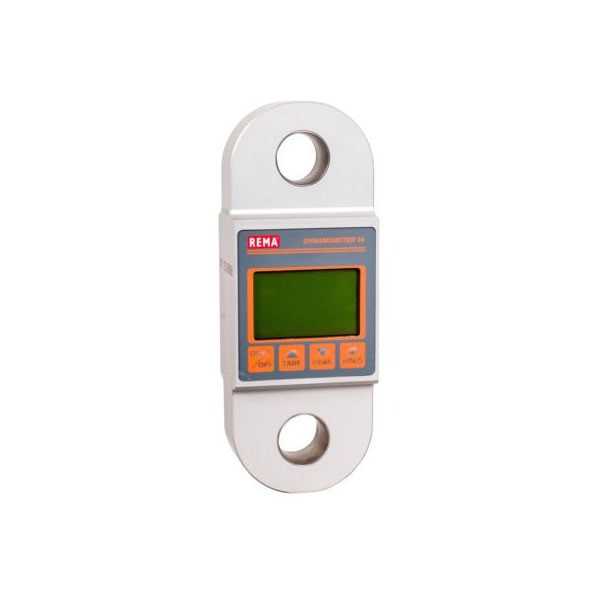

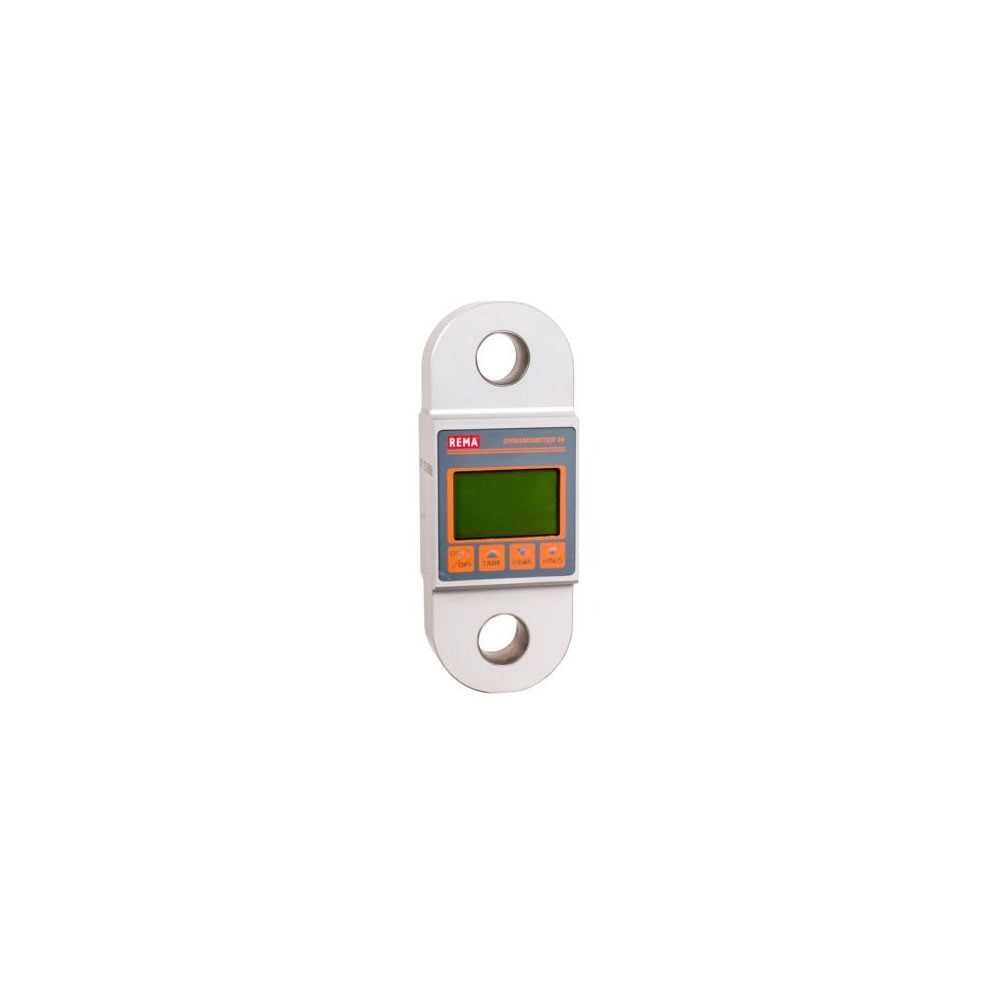

^The electronic dynamometer, model DSD04 is a measuring device for lifting operations. The lifting product is supplied with a lyre shackle and a remote reader. The housing of the dynamometer is made of anodized aluminum which offers a better resistance to wear, corrosion and heat.
Its overload indication is 10%. Its safety coefficient is 5. The dynamometer is available in several variations with a CMU ranging from 1 250 to 20 000 kg and a resolution of 0.5 to 10 kg depending on the CMU selected.
For more information on our lifting product, please consult our customer service.
Product details
^| Référence | CMU kg | Résolution kg | CMU Manille lyre kg | Poids kg |
| DSD04-1.25 | 1250 | 0.5 | 1500 | 0.70 |
| DSD04-2.5 | 2500 | 1 | 3250 | 1,35 |
| DSD04-5.0 | 5000 | 2 | 6500 | 1,85 |
| DSD04-10.0 | 10000 | 5 | 12000 | 3,60 |
| DSD04-20.0 | 20000 | 10 | 25000 | 7 |

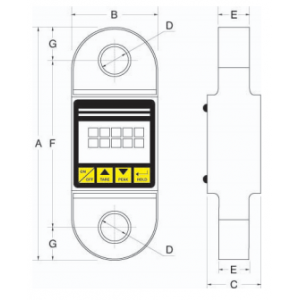

| Dimensions du dynamomètre | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| DSD04-1.25 | 190 | 85 | 54 | 16 | 16 | 142 | 25 |
| DSD04-2.5 | 215 | 85 | 54 | 21 | 25 | 159 | 28 |
| DSD04-5.0 | 232 | 85 | 54 | 27 | 32 | 168 | 32 |
| DSD04-10.0 | 315 | 100 | 59 | 39 | 49 | 203 | 56 |
| DSD04-20.0 | 350 | 126 | 70 | 55 | 70 | 210 | 70 |
