Product description
^The hydraulic cylinder is a lifting device with the reference SG.GR. The lifting equipement has a safety valve. The housing is light but robust to ensure a high performance lifting application.
The lifting device is available in several versions with a WLL of 2000kg to 50000kg. The hydraulic cylinder complies with the Machinery Directive 2006/42/EC. It is supplied with a test certificate, an EC declaration of conformity and instructions for use.
For more information on this lifting product, please contact our customer service.
Product details

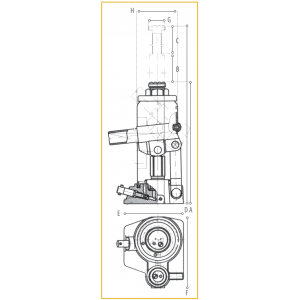

^| Reference | Capacity | Weight | Dimension | ||
| [kg] | [kg] | [A] | [B] | [C] | |
| SG.GR.02000 | 2000 | 2.3 | 158 | 90 | 50 |
| SG.GR.03000 | 3000 | 3.2 | 180 | 110 | 50 |
| SG.GR.05000 | 5000 | 4.2 | 200 | 125 | 60 |
| SG.GR.08000 | 8000 | 5.3 | 200 | 125 | 60 |
| SG.GR.10000 | 10000 | 5.6 | 200 | 125 | 60 |
| SG.GR.12000 | 12000 | 6.2 | 210 | 125 | 60 |
| SG.GR.15000 | 15000 | 7.8 | 220 | 135 | 60 |
| SG.GR.20000 | 20000 | 10 | 235 | 145 | 60 |
| SG.GR.30000 | 30000 | 14 | 255 | 150 | - |
| SG.GR.50000 | 50000 | 28 | 260 | 180 | - |
The hydraulic cylinder is a lifting device with the reference SG.GR. The lifting equipement has a safety valve. The housing is light but robust to ensure a high performance lifting application.
The lifting device is available in several versions with a WLL of 2000kg to 50000kg. The hydraulic cylinder complies with the Machinery Directive 2006/42/EC. It is supplied with a test certificate, an EC declaration of conformity and instructions for use.
For more information on this lifting product, please contact our customer service.
