Product description

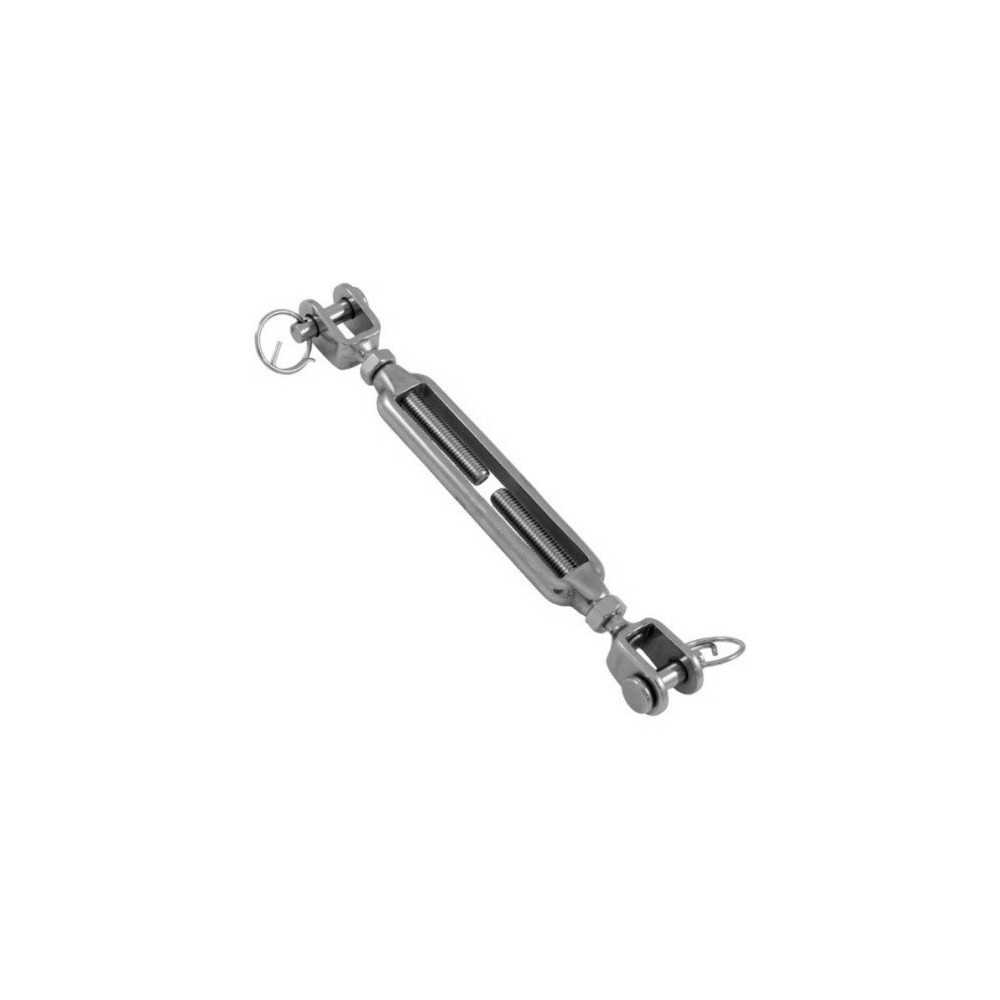

^The stainless steel turnbuckle, model THI, is a lifting accessory made of stainless steel, reference AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These caged turnbuckles (also called "lantern turnbuckles") can support a load of up to 1000kg.
The stainless steel clevis turnbuckles are available in several possible variations with a WLL of 150 to 980 kg and a thread from M5 to M16. Its safety coefficient is 4.
The product is delivered with mounted locknuts.
For more information on our tensioners, please consult our customer service.
Product details

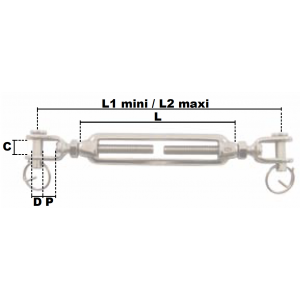

^| Référence | Filetage | CMU | C | D | P | L | L1 | L2 | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| THI105 | M5 | 150 | 6.5 | 5 | 8 | 70 | 117 | 168 | 0.065 |
| THI106 | M6 | 250 | 7.5 | 6 | 8 | 90 | 143 | 209 | 0.095 |
| THI108 | M8 | 360 | 11 | 8 | 9 | 120 | 175 | 265 | 0.195 |
| THI110 | M10 | 500 | 12 | 9 | 12 | 150 | 222 | 330 | 0.325 |
| THI112 | M12 | 650 | 14 | 12 | 21 | 200 | 304 | 470 | 0.685 |
| THI114 | M14 | 790 | 14.5 | 12 | 22 | 225 | 355 | 540 | 0.980 |
| THI116 | M16 | 980 | 21 | 16 | 24 | 250 | 385 | 574 | 1.445 |
The stainless steel turnbuckle, model THI, is a lifting accessory made of stainless steel, reference AISI 316. The stainless steel turnbuckles are available with different endings; lifting rings, hooks and clevises. These caged turnbuckles (also called "lantern turnbuckles") can support a load of up to 1000kg.
The stainless steel clevis turnbuckles are available in several possible variations with a WLL of 150 to 980 kg and a thread from M5 to M16. Its safety coefficient is 4.
The product is delivered with mounted locknuts.
For more information on our tensioners, please consult our customer service.
