Product description

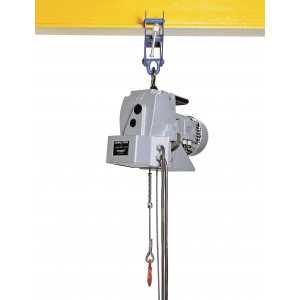

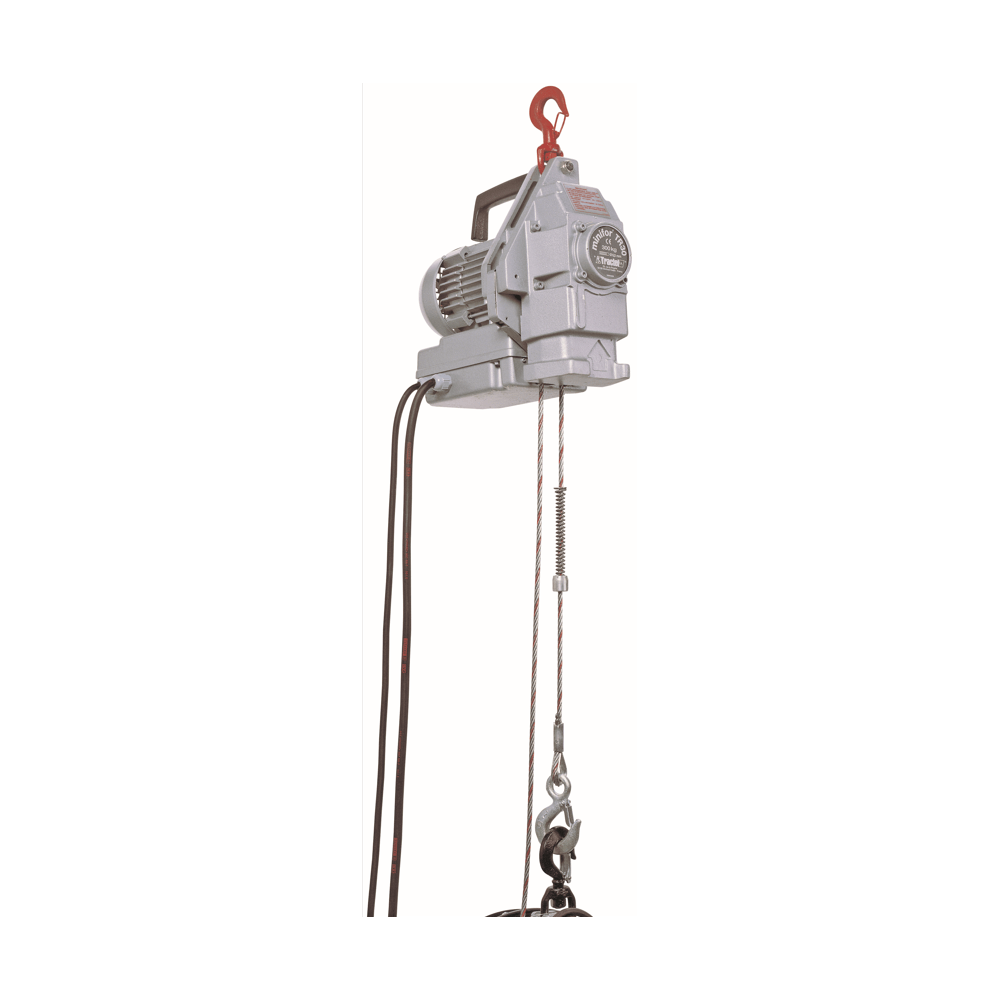

^The MINIFOR standard wire rope winch is mainly used by building professionals and craftsmen for frequent use at great heights. The MINIFOR winch is of high quality, lightweight and space-saving, and is easy to set up and transport.
The MINIFOR wire rope winch has a self-tightening, "free rope" system, which ensures that the wire rope has a perfect grip on the drive pulley.
A direct drive sheep box and a hook with safety latch are included with your MINIFOR wire rope winch.
The rope diameter is 6.5 mm and the lengths available for the MINIFOR winch are : 10 to 50m.
*price without cable, to choose a cable length please contact us via a quote request
Product details
^| Référence | Modèle | Type de moteur | Tension V | C.M.U. Direct kg | C.M.U. Mouflé kg | Vitesse Direct m/min | Vitesse mouflée m/min | Poids du treuil kg | Dimensions mm |
| PEC0T10 | TR10 | Monophasé | 230 | 100 | 200 | 15 | 7,5 | 20 | 350 x 415 x 245 |
| PEC0T30 | TR30 | Monophasé | 230 | 300 | 600 | 5 | 2,5 | 20 | 350 x 415 x 245 |
| PEC0T30R | TR30S | Monophasé / Triphasé | 230 / 400 | 300 | 600 | 13 | 6,5 | 32 | 495 x 425 x 225 |
| PEC0T50 | TR50 | Monophasé / Triphasé | 230 / 400 | 500 | 950 | 7 | 3,5 | 32 | 495 x 425 x 225 |

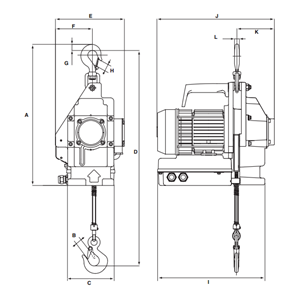

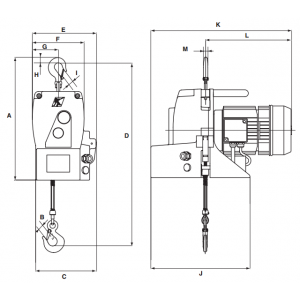

| Dimensions | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm | K mm | L mm | M mm |
| PEC0T10 | 427 | 20 | 140 | 631 | 209 | 112 | 20 | 20 | 324 | 356 | 114 | 15 | - |
| PEC0T30 | 427 | 20 | 140 | 631 | 209 | 112 | 20 | 20 | 324 | 356 | 114 | 15 | - |
| PEC0T30R | 430 | 20 | 212 | 642 | 224 | 181 | 90 | 20 | 20 | 347 | 492 | 302 | 15 |
| PEC0T50 | 430 | 20 | 212 | 642 | 224 | 181 | 90 | 20 | 20 | 347 | 492 | 302 | 15 |
