Product description

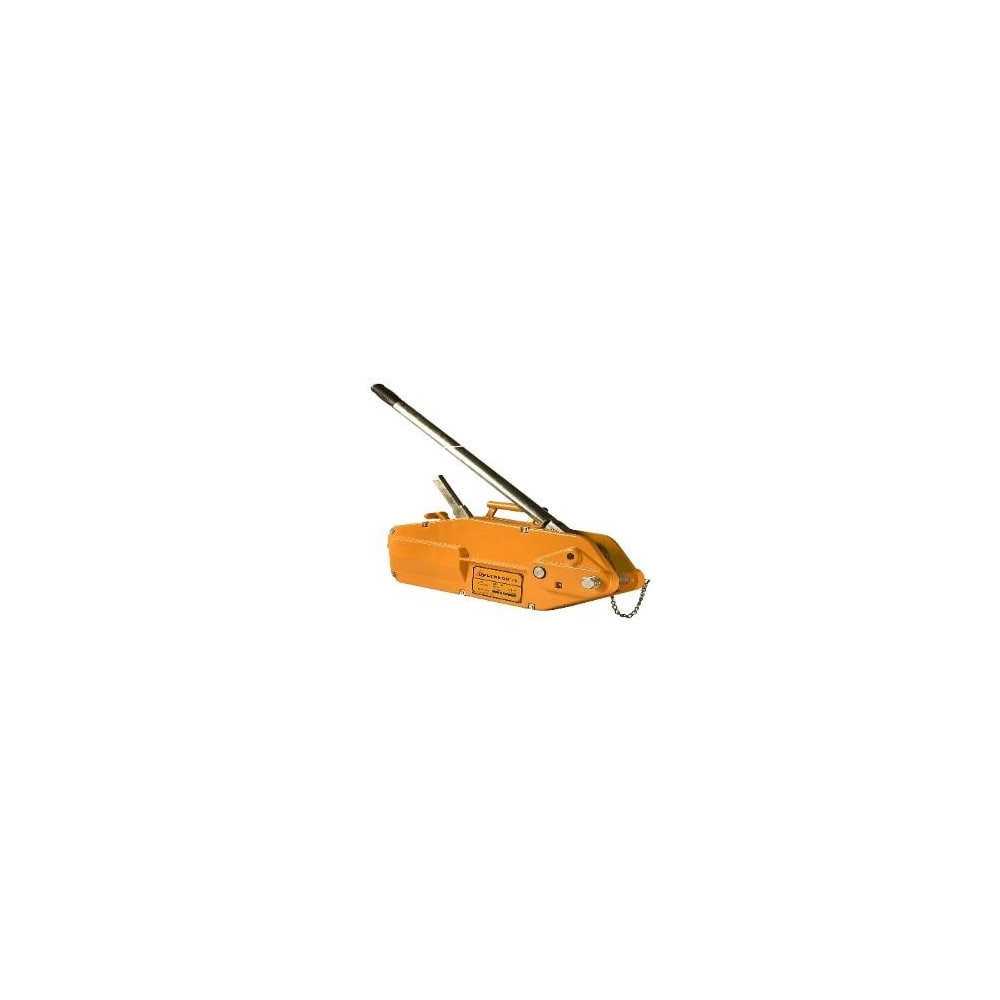

^This cable puller with aluminium housing from DELTA is designed for lifting and pulling work. This lifting device is easy and safe to use. It can be used in any direction.
The lifting device has a robust aluminium housing protected against corrosion. In addition, its parallel clamping system has a large contact area. The product is available for lifting capacities ranging from 800kg to 5400kg. In addition, it has 20m of cable.
This cable puller complies with the Machinery Directive 2006/42/EC and is supplied with a test certificate, EC declaration of conformity and operating instructions.
For further information, please contact our customer service, they will answer all your questions.
Product details
^| Reference | WLL | Tensile capacity in kg | Steel rope diameter | Tensile strength | Minimum rope breaking strength | Speed of rope | Net weight | Steel rope weight |
| [kg] | [kg] | [mm] | [N/mm2] | [kN] | [mm] | [kg] | [kg] | |
| DC.0.0250000800 | 800 | 1300 | 8.3 | 1770 | 43.31 | 52 | 6.5 | 8 |
| DC.0.0250001600 | 1600 | 2600 | 11 | 1770 | 76.24 | 55 | 12.5 | 18 |
| DC.0.0250003200 | 3200 | 5200 | 16 | 1770 | 161.3 | 28 | 23.5 | 24 |
| DC.0.0250005400 | 5400 | 8000 | 20 | 1770 | 252.05 | 30 | 56 | 38 |
