Product description

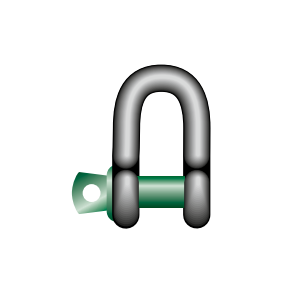

^Levagemanutention.com offers you a straight SC shackle of grade 60 Green Pin Tycan. It is made of high strength steel.
Its safety coefficient is 6 times its CMU. There is no other version of this product. Finally, its finish is galvanized.
Product details

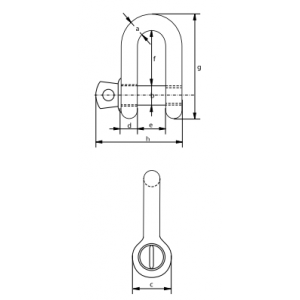

^| Référence | CMU en T | Diamètre corps | Diamètre axe | Diamètre oeil | Largeur oeil | Largeur intérieure | Longueur intérieure | Longueur | Longueur axe | Poids unitaire en kg |
| A en mm | B en mm | C en mm | D en mm | E en mm | F en mm | G en mm | H en mm | |||
| G-4151 | 0.33 | 5 | 6 | 12 | 5 | 9.5 | 19 | 33 | 29.5 | 0.02 |
| G-4151 | 0.5 | 7 | 8 | 16.5 | 7 | 12 | 22 | 41.5 | 38 | 0.05 |
| G-4151 | 0.75 | 9 | 10 | 20 | 9 | 13.5 | 26 | 50 | 46.5 | 0.09 |
| G-4151 | 1 | 10 | 11 | 22.5 | 10 | 17 | 32 | 59 | 54 | 0.14 |
| G-4151 | 1.5 | 11 | 13 | 26.5 | 11 | 19 | 37 | 68 | 59.5 | 0.19 |
| G-4151 | 2 | 13.5 | 16 | 34 | 13 | 22 | 43 | 81 | 73 | 0.32 |
| G-4151 | 3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 89 | 0.54 |
| G-4151 | 4,75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 103 | 0.87 |
| G-4151 | 6.5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 119 | 1.34 |
| G-4151 | 8.5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 137 | 2.08 |
| G-4151 | 9.5 | 28 | 32 | 66 | 28 | 47 | 90 | 167 | 153 | 2.77 |
| G-4151 | 12 | 32 | 35 | 72 | 32 | 51 | 94 | 180 | 170 | 3.72 |
| G-4151 | 13.5 | 35 | 38 | 80 | 35 | 57 | 115 | 209 | 186 | 5.14 |
| G-4151 | 17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 203 | 6.85 |
| G-4151 | 25 | 45 | 50 | 103 | 45 | 74 | 149 | 271 | 243 | 11.85 |
| G-4151 | 35 | 50 | 57 | 111 | 50 | 83 | 171 | 305 | 272 | 16.86 |
| G-4151 | 42.5 | 57 | 65 | 130 | 57 | 95 | 190 | 345 | 310 | 24.60 |
| G-4151 | 55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 344 | 32.65 |
