Product description

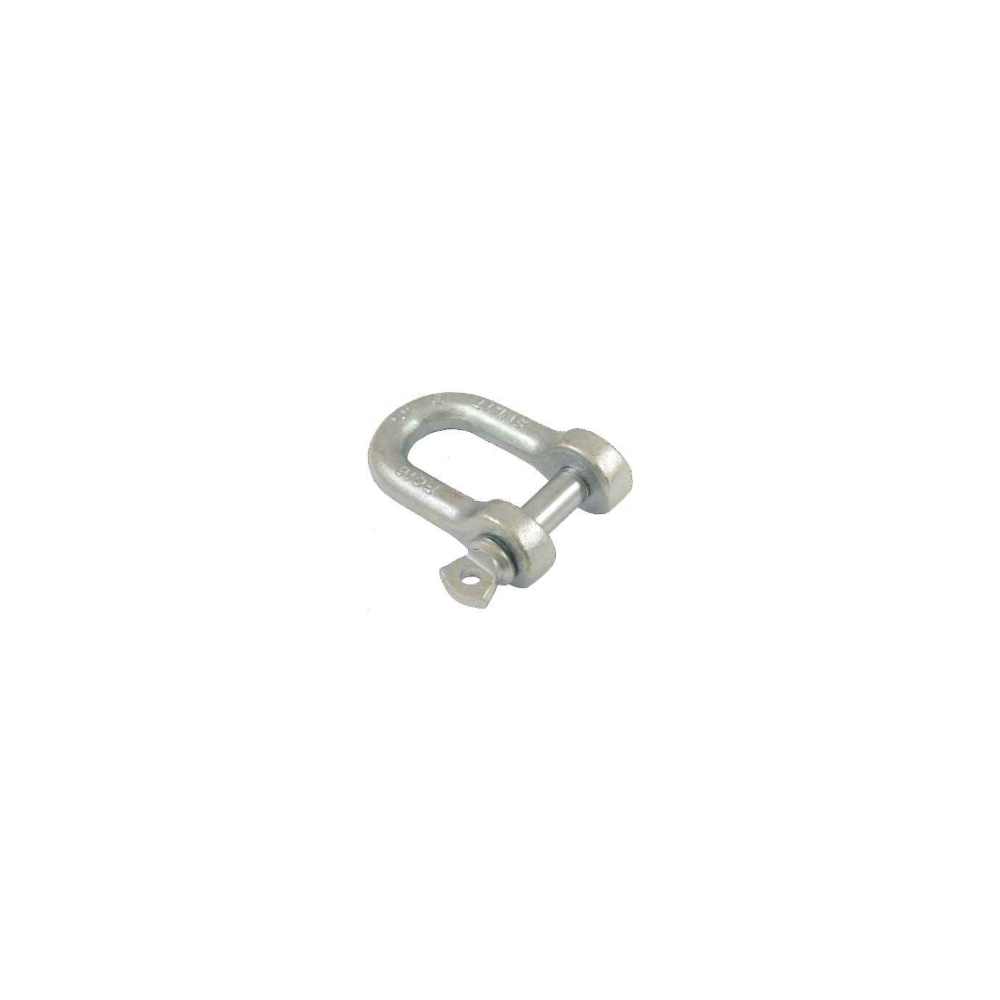

^The MDR straight eye shackle is made of stamped C15 steel. The shackle is finished in white zinc plating.
The MDR shackle is available in several variations with a CMU ranging from 50 to 8000 kg for a diameter of 5 mm only.
The safety coefficient of the shackle is 5.
For more information, please contact our customer service.
Product details

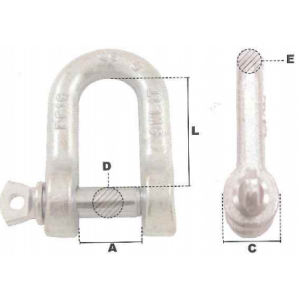

^| Référence | D | CMU | A | C | E | L | Poids |
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MDR105 | 5 | 100 | 8 | 12 | 5 | 23 | 0.02 |
| MDR106 | 6 | 160 | 12 | 14 | 6 | 29 | 0.04 |
| MDR108 | 8 | 250 | 15 | 18 | 8 | 37 | 0.07 |
| MDR110 | 10 | 400 | 18 | 21 | 10 | 41 | 0.14 |
| MDR112 | 12 | 630 | 26 | 27 | 12 | 56 | 0.26 |
| MDR114 | 14 | 800 | 27 | 30 | 14 | 57 | 0.37 |
| MDR116 | 16 | 1000 | 32 | 35 | 16 | 63 | 0.56 |
| MDR118 | 18 | 1300 | 32 | 36 | 18 | 65 | 0.71 |
| MDR120 | 20 | 1600 | 38 | 40 | 20 | 67 | 0.94 |
| MDR122 | 22 | 2000 | 42 | 44 | 22 | 76 | 1.26 |
| MDR125 | 25 | 2500 | 44 | 50 | 22 | 81 | 1.55 |
| MDR128 | 28 | 3150 | 44 | 56 | 25 | 89 | 2.31 |
| MDR132 | 32 | 4000 | 45 | 64 | 30 | 99 | 3.50 |
| MDR136 | 36 | 5000 | 48 | 72 | 31 | 109 | 4.13 |
| MDR140 | 40 | 6300 | 53 | 78 | 34 | 120 | 5.72 |
| MDR142 | 42 | 8000 | 60 | 80 | 40 | 140 | 7.70 |
