Product description

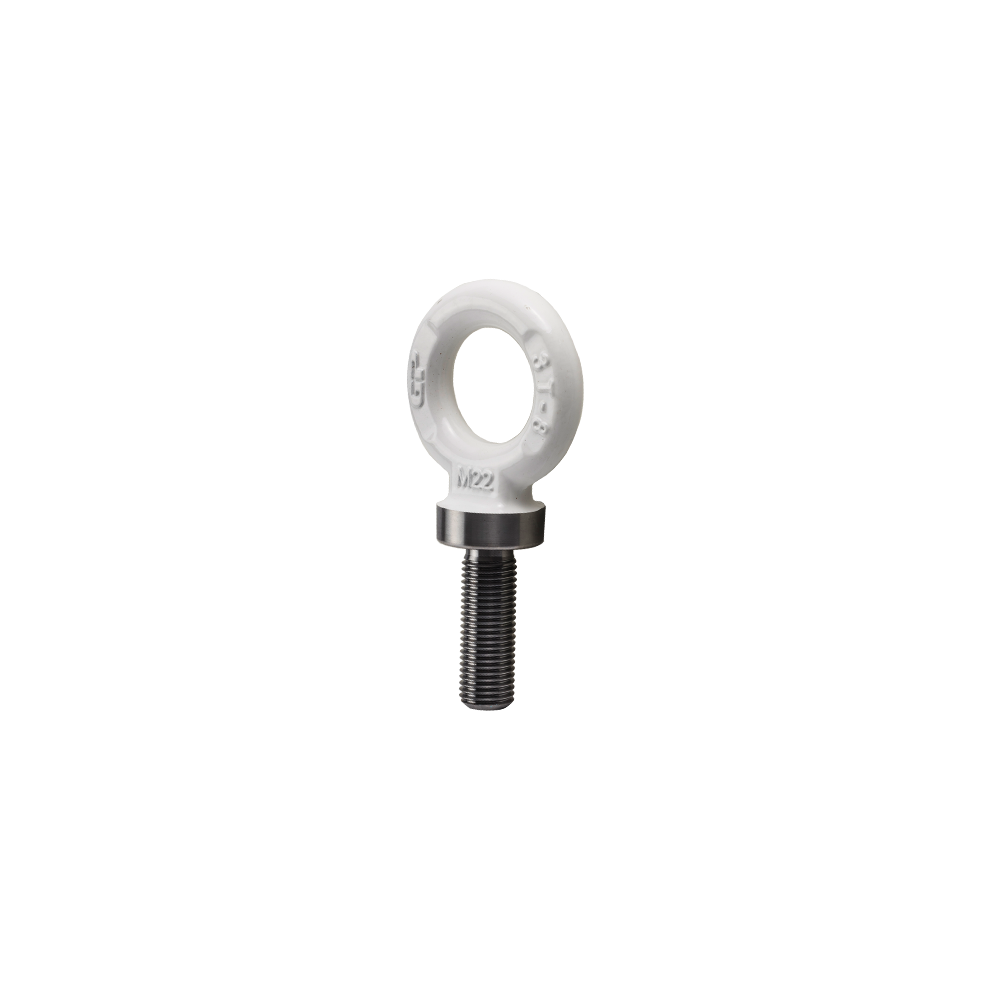

^The Green Pin® Male Lifting Ring is a grade 80 lifting ring. This range includes 22 different ISO metric threads. Other specific threads can be available on request (UNC threads).
The CMU indicated is for in-line lifting. The lifting rings can be loaded sideways but this implies a reduction of the WLL.
Maximum load range from 0.2t to 36t
Material: Alloy steel, class 80, hardened and tempered
Safety coefficient: 5 times the C.M.U. = minimum breaking load
Finish : white paint
Temperature : -40° to +200°C
Product details

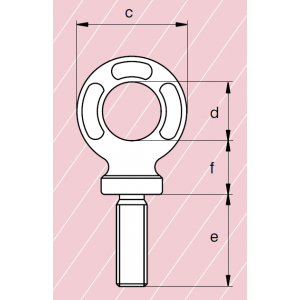

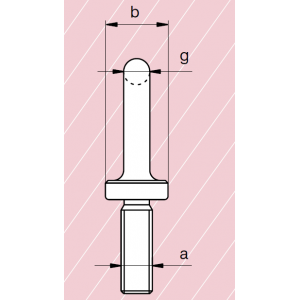

^| Référence | CMU | a (Dia. Filetage) | b | c | d | e | f | g | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| AL06R | 0.2 | M 6 x 1 | 20 | 34 | 20 | 20 | 17 | 7 | 0.05 |
| AL08R | 0.4 | M 8 x 1.25 | 20 | 34 | 20 | 24 | 17 | 7 | 0.07 |
| AL10R | 0.7 | M 10 x 1.5 | 20 | 38 | 22 | 30 | 19 | 8 | 0.08 |
| AL12R | 1 | M 12 x 1.75 | 25 | 47 | 26 | 36 | 23 | 10 | 0.14 |
| AL14R | 1.2 | M 14 x 2 | 30 | 57 | 29 | 40 | 28 | 14 | 0.25 |
| AL16R | 1.5 | M 16 x 2 | 36 | 65 | 35 | 55 | 30 | 14 | 0.39 |
| AL18R | 2 | M 18 x 2.5 | 36 | 65 | 35 | 54 | 30 | 14 | 0.38 |
| AL20R | 2.5 | M 20 x 2.5 | 40 | 73 | 39 | 59 | 34 | 16 | 0.58 |
| AL22R | 3 | M 22 x 2.5 | 42 | 82 | 44 | 64 | 38 | 19 | 1.01 |
| AL24R | 4 | M 24 x 3 | 55 | 95 | 54 | 84 | 40 | 20 | 1.12 |
| AL27R | 5 | M 27 x 3 | 55 | 95 | 54 | 84 | 40 | 20 | 1.18 |
| AL30R | 6 | M 30 x 3.5 | 60 | 108 | 59 | 100 | 49 | 24 | 1.84 |
| AL33R | 7 | M 33 x 3.5 | 60 | 108 | 59 | 100 | 49 | 24 | 2.01 |
| AL36R | 8 | M 36 x 4 | 65 | 118 | 67 | 118 | 45 | 25 | 2.44 |
| AL39R | 9 | M 39 x 4 | 65 | 118 | 67 | 118 | 45 | 25 | 2.62 |
| AL42R | 10 | M 42 x 4.5 | 70 | 139 | 79 | 135 | 56 | 31 | 5.41 |
| AL45R | 15 | M 45 x 4.5 | 70 | 139 | 79 | 135 | 56 | 31 | 4.16 |
| AL48R | 18 | M 48 x 5 | 95 | 181 | 97 | 150 | 68 | 43 | 8.22 |
| AL52R | 20 | M 52 x 5 | 95 | 181 | 97 | 150 | 68 | 43 | 8.55 |
| AL56R | 25 | M 56 x 5.5 | 95 | 181 | 97 | 150 | 68 | 43 | 8.85 |
| AL60R | 30 | M 60 x 5.5 | 95 | 181 | 97 | 150 | 68 | 43 | 9.16 |
| AL64R | 36 | M 64 x 6 | 95 | 181 | 97 | 150 | 68 | 43 | 9.55 |
The Green Pin® Male Lifting Ring is a grade 80 lifting ring. This range includes 22 different ISO metric threads. Other specific threads can be available on request (UNC threads).
The CMU indicated is for in-line lifting. The lifting rings can be loaded sideways but this implies a reduction of the WLL.
Maximum load range from 0.2t to 36t
Material: Alloy steel, class 80, hardened and tempered
Safety coefficient: 5 times the C.M.U. = minimum breaking load
Finish : white paint
Temperature : -40° to +200°C
