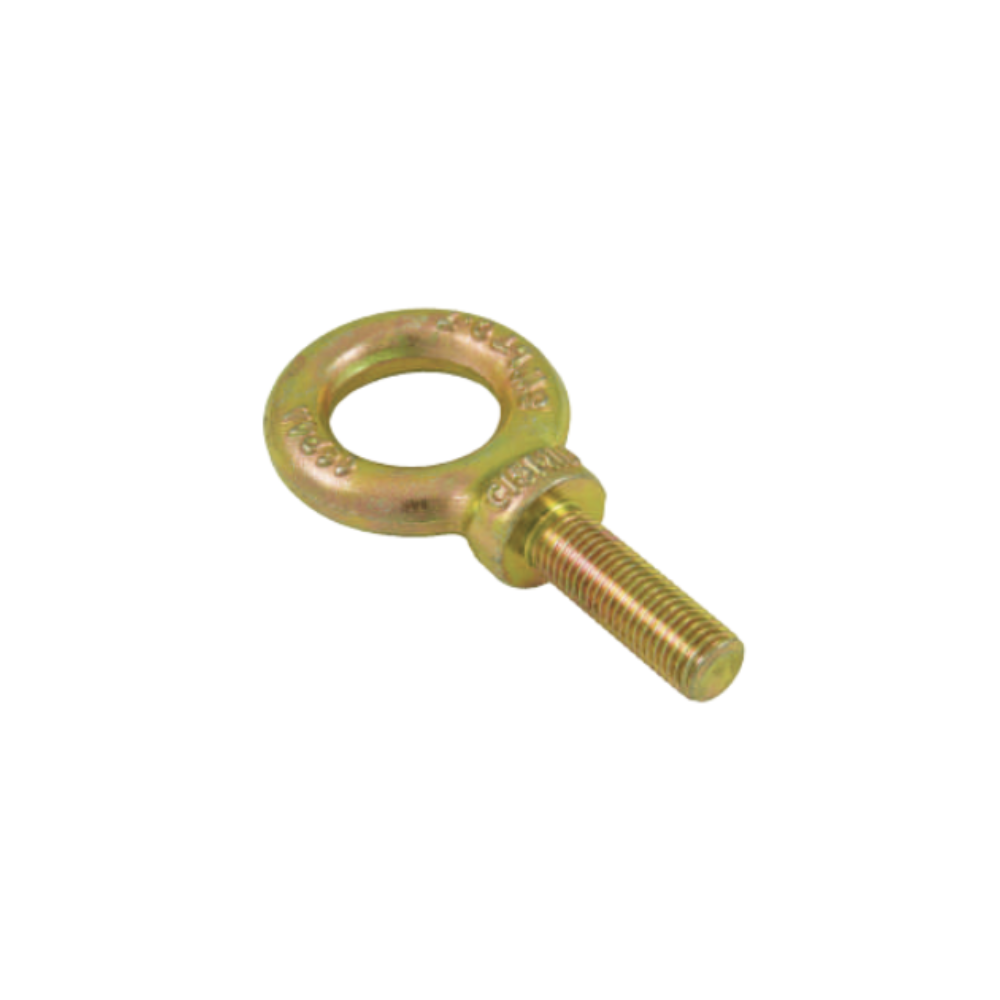

LONG MALE LIFTING EYE, WHITE ZINC-PLATED

    ALLZB106
    €2.22 Tax excluded
    DIAMETRE EN MM
    CMU EN KG
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation

    En cochant cette case, vous reconnaissez avoir lu, compris et accepté, notre politique de confidentialité*



    Product description

    ^

    The ALLZB Long Shank Male Lifting Ring is manufactured from stamped C15 steel with a zinc plated dichromate finish and ISO thread.
    The ALLZB Lifting Ring is available in diameters from 6 to 45mm and in capacities from 70kg to 6500kg.

    The breaking load of the ring is obtained by multiplying the WLL by the coefficient 6.

    Product details

    ^

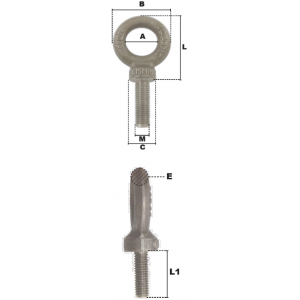

       M CMUCMU à A B C E L L1  PasPoids
     Référence    45°              métrique


         [kg][kg] [mm] [mm] [mm] [mm] [mm] [mm]  [mm][kg]
     ALLZB106 M 67050203620.58442410.06

     ALLZB108 M 8 14090 20 36 20.5 8 44 24  1.250.07
     ALLZB110 M 10230150234422.510.55128.51.50.12

     ALLZB112 M 12 340240 29 50 22.5 10.5 60.5 40  1.750.16
     ALLZB114 M 145003503357261269.54020.20

     ALLZB116 M 16 700480 37 65 28 14 76 50  20.34
     ALLZB118 M 189306004171311585522.50.43

     ALLZB120 M 20 1200750 46 78 32 16 92 55  2.50.545
     ALLZB122 M 22150010005084351798622.50.68

     ALLZB124 M 24 18001200 53 94 38 20.5 110 67  31
     ALLZB127 M 27250015005910140211207431.29

     ALLZB130 M 30 31502400 60 109 45.5 24.5 132 79  3.51.83
     ALLZB133 M 3340003000641215528.5144843.52.48

     ALLZB136 M 36 50003000 69 133.5 68.5 32.5 155 95  43.95
     ALLZB139 M 395500330069133.568.532.51559544.10

     ALLZB142 M 42 60003600 80 149.9 79.5 35.2 180 108  4.54.35
     ALLZB145 M 456500390080149.979.535.21801084.54.42
