Product description

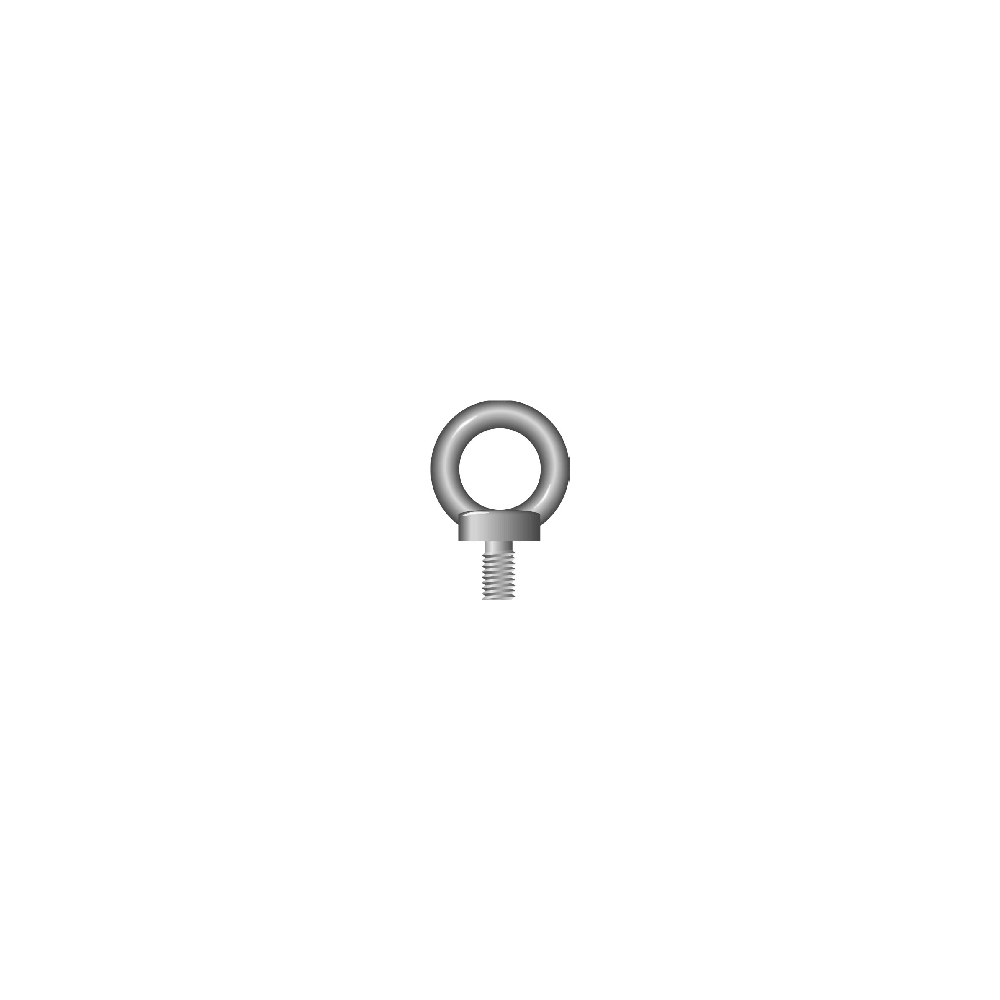

^The Green Pin® male lifting ring is a DIN 580 lifting ring. This range includes 23 different ISO metric threads. This product is made of C15 carbon steel. It has a zinc plated finish.
The lifting ring is available in several variations with a CMU ranging from 70 to 40 000kg in diameter 6 mm only.
Its safety coefficient is 6.
For more information, please contact our customer service.
Product details

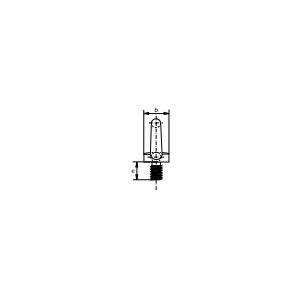

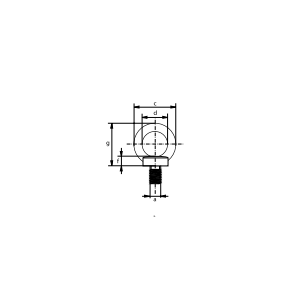

^| Référence | CMU | a (Dia. Filetage) | b | c | d | e | f | g | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| OHOBGD006 | 0.07 | M 6 x 1 | 20 | 36 | 20 | 13 | 6 | 36 | 0.051 |
| OHOBGD008 | 0.14 | M 8 x 1.25 | 20 | 36 | 20 | 13 | 6 | 36 | 0.055 |
| OHOBGD010 | 0.23 | M 10 x 1.5 | 25 | 45 | 25 | 17 | 8 | 45 | 0.103 |
| OHOBGD012 | 0.34 | M 12 x 1.75 | 30 | 54 | 30 | 20.5 | 10 | 53 | 0.169 |
| OHOBGD014 | 0.49 | M 14 x 2 | 35 | 63 | 35 | 27 | 12 | 60 | 0.299 |
| OHOBGD016 | 0.7 | M 16 x 2 | 35 | 63 | 35 | 27 | 12 | 62 | 0.307 |
| OHOBGD018 | 0.9 | M 18 x 2.5 | 40 | 72 | 40 | 30 | 14 | 71 | 0.428 |
| OHOBGD020 | 1.2 | M 20 x 2.5 | 40 | 72 | 40 | 30 | 14 | 71 | 0.424 |
| OHOBGD022 | 1.5 | M 22 x 2.5 | 45 | 81 | 45 | 39 | 14 | 80 | 0.628 |
| OHOBGD024 | 1.8 | M 24 x 3 | 50 | 90 | 50 | 36 | 18 | 90 | 0.908 |
| OHOBGD027 | 2.5 | M 27 x 3 | 50 | 90 | 50 | 39 | 18 | 90 | 0.883 |
| OHOBGD030 | 3.2 | M 30 x 3.5 | 65 | 108 | 60 | 45 | 22 | 109 | 1.59 |
| OHOBGD033 | 4.3 | M 33 x 3.5 | 65 | 108 | 60 | 45 | 22 | 110 | 1.67 |
| OHOBGD036 | 4.6 | M 36 x 4 | 75 | 126 | 70 | 54 | 26 | 128 | 2.35 |
| OHOBGD039 | 6.1 | M 39 x 4 | 75 | 126 | 70 | 54 | 26 | 130 | 2.66 |
| OHOBGD042 | 6.3 | M 42 x 4.5 | 85 | 144 | 80 | 63 | 30 | 147 | 4.03 |
| OHOBGD045 | 8 | M 45 x 4.5 | 85 | 144 | 80 | 63 | 35 | 150 | 5.21 |
| OHOBGD048 | 8.6 | M 48 x 5 | 100 | 166 | 90 | 68 | 35 | 168 | 6.32 |
| OHOBGD056 | 11.5 | M 56 x 5.5 | 110 | 184 | 100 | 78 | 38 | 187 | 8.79 |
| OHOBGD064 | 16 | M 64 x 6 | 120 | 206 | 110 | 90 | 42 | 208 | 12.4 |
| OHOBGD072 | 20 | M 72 x 6 | 150 | 260 | 140 | 100 | 50 | 260 | 22.93 |
| OHOBGD080 | 28 | M 80 x 6 | 170 | 296 | 160 | 112 | 55 | 298 | 32 |
| OHOBGD100 | 40 | M 100 x 6 | 190 | 330 | 180 | 130 | 60 | 330 | 48 |
