Product description

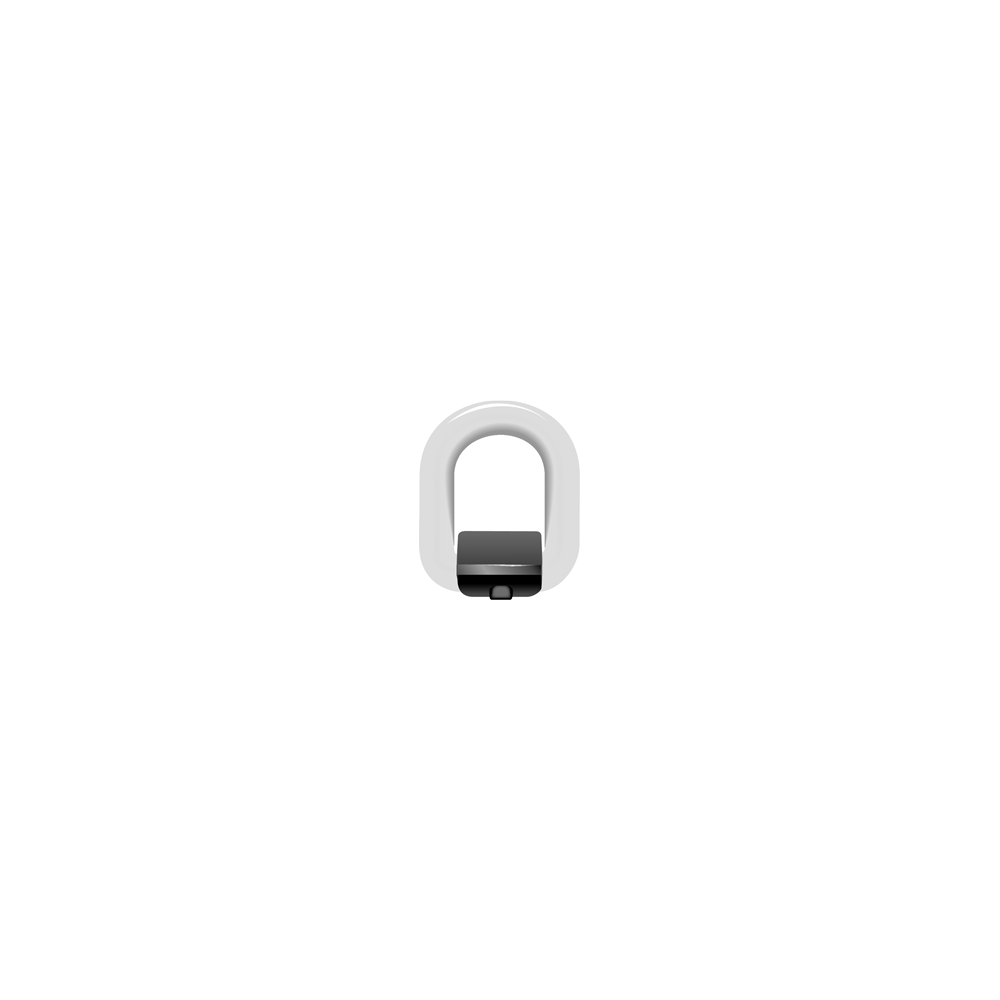

^The stirrup lifting ring to be welded is composed of a base made of mild steel and an eye made of alloy steel.
It is possible to have a red or white finish. The safety coefficient is 4 times the CMU. The lifting ring exists in several variations with a CMU ranging from 1,200 to 15,500 kg for a diameter of only 13mm.
For more information, please contact our customer service.
NOTE: Welding must be done according to DIN 5817 resp. 15429, by a qualified welder according to EN 287-1.
Translated with www.DeepL.com/Translator (free version)
The stirrup lifting ring to be welded is composed of a base made of mild steel and an eye made of alloy steel.
It is possible to have a red or white finish. The safety coefficient is 4 times the CMU. The lifting ring exists in several variations with a CMU ranging from 1,200 to 15,500 kg for a diameter of only 13mm.
For more information, please contact our customer service.
Product details

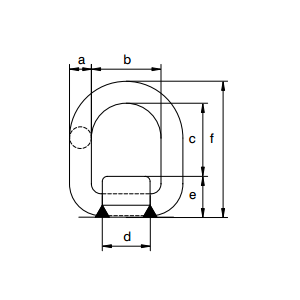

^| Référence | CMU | a | b | c | d | e | f | Poids unitaire |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| PAS1 | 1.2 | 13 | 40 | 42 | 35 | 28 | 83 | 0.4 |
| PAS3 | 3.2 | 18 | 45 | 48 | 42 | 33 | 99 | 0.77 |
| PAS5 | 5.4 | 22 | 55 | 57 | 49 | 42 | 121 | 1.42 |
| PAS8 | 8.2 | 26 | 70 | 67 | 64 | 50 | 143 | 2.5 |
| PAS12 | 12.8 | 28 | 85 | 90 | 78 | 55 | 173 | 3.7 |
| PAS15 | 15.5 | 34 | 99 | 93 | 90 | 63 | 190 | 5.67 |
The stirrup lifting ring to be welded is composed of a base made of mild steel and an eye made of alloy steel.
It is possible to have a red or white finish. The safety coefficient is 4 times the CMU. The lifting ring exists in several variations with a CMU ranging from 1,200 to 15,500 kg for a diameter of only 13mm.
For more information, please contact our customer service.
NOTE: Welding must be done according to DIN 5817 resp. 15429, by a qualified welder according to EN 287-1.
