Product description

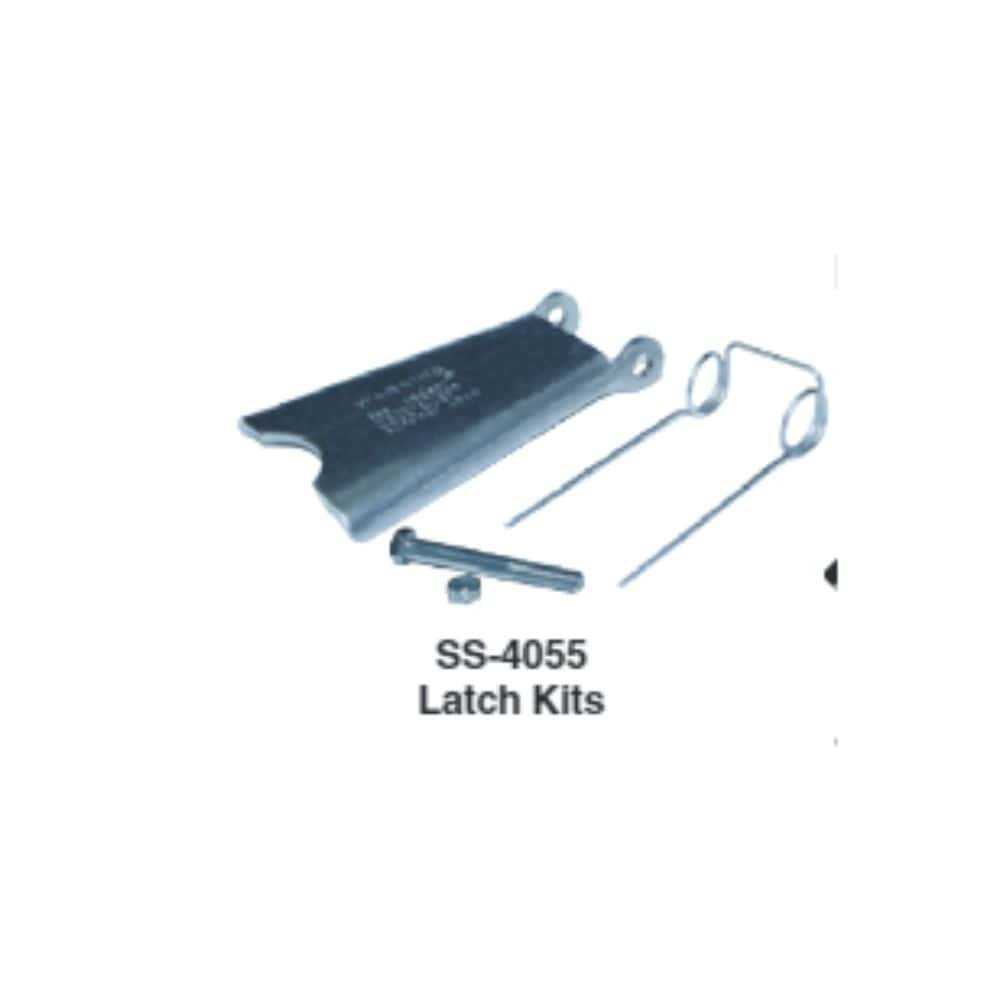

^CROSBY brand SS-4055 tole latch replacement kit is made of stainless steel with a cadmium-plated steel nut. The latch hooks are used for their ease of use. The latch opens and closes automatically after the load is inserted.
This lifting accessory is available in several variations with a GVW of 1.25 to 60 t. The product is also available in raw finish.
For more information on this lifting accessory, please contact our customer service.
Product details

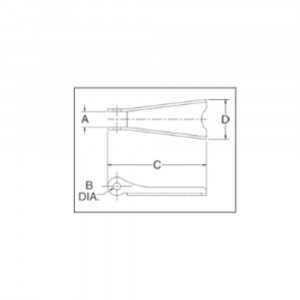

^| Référence | CMU | A | B | C | D | Poids |
| [kg] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 1090027 | 1250 | 9.65 | 4.05 | 36.6 | 15 | 0.01 |
| 1090045 | 1600 | 9.65 | 4.05 | 40.6 | 15 | 0.01 |
| 1090063 | 2500 - 3200 | 11.9 | 4.85 | 46.7 | 20.8 | 0.01 |
| 1090081 | 5400 | 14.2 | 4.30 | 61 | 25.4 | 0.05 |
| 1090107 | 8000 | 14.7 | 5.10 | 75.5 | 30.7 | 0.05 |
| 1090125 | 11500 - 16000 | 15 | 6.89 | 93 | 38.1 | 0.08 |
| 1090143 | 22000 | 21.1 | 9.90 | 125 | 48.3 | 0.18 |
| 1090161 | 30000 | 23.9 | 13.2 | 149 | 65 | 0.29 |
| 1090189 | 37000 - 45000 | 55.5 | 9.90 | 165 | 97.5 | 0.51 |
| 1090205 | 60000 | 84 | 13.2 | 200 | 105 | 0.80 |
CROSBY brand SS-4055 tole latch replacement kit is made of stainless steel with a cadmium-plated steel nut. The latch hooks are used for their ease of use. The latch opens and closes automatically after the load is inserted.
This lifting accessory is available in several variations with a GVW of 1.25 to 60 t. The product is also available in raw finish.
For more information on this lifting accessory, please contact our customer service.
