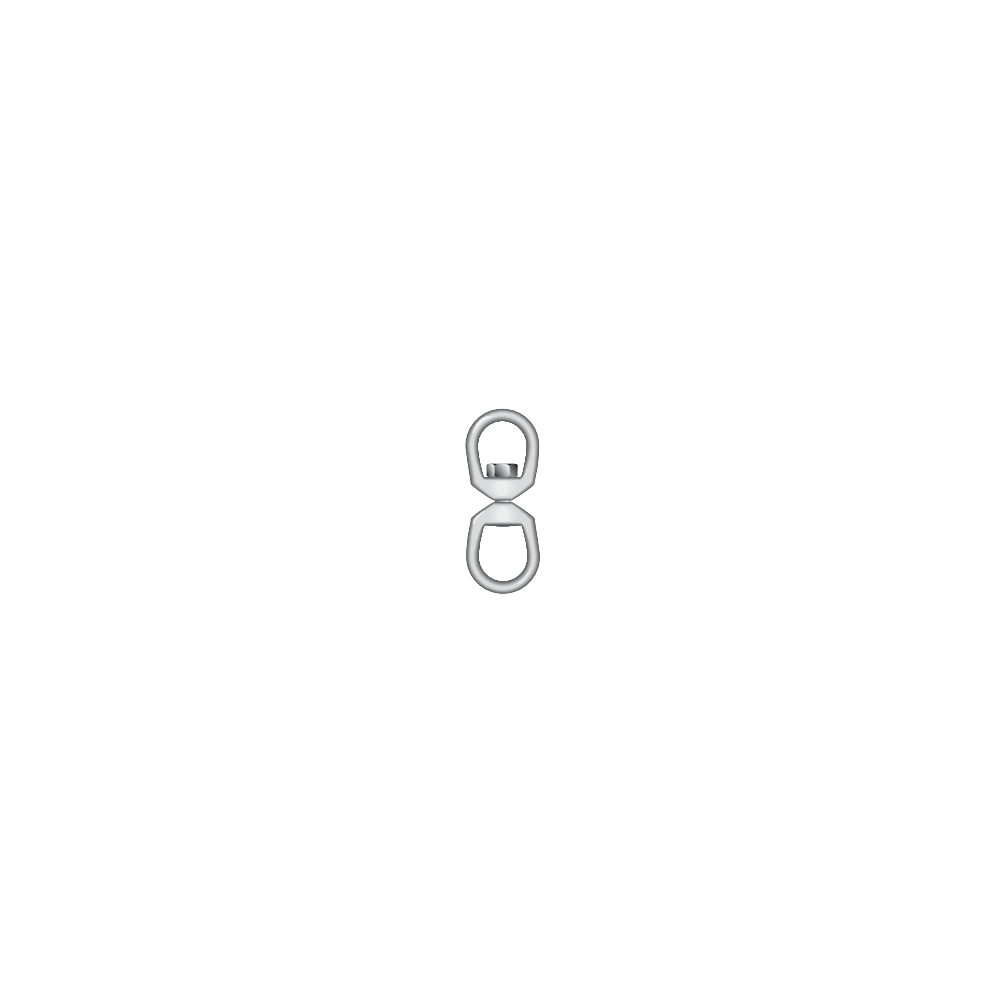

LARGE EYE SWIVEL

    WTGPOO06
    €17.30 Tax excluded
    DIAMETRE EN MM
    CMU EN KG
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation

    En cochant cette case, vous reconnaissez avoir lu, compris et accepté, notre politique de confidentialité*



    Product description

    ^
    • The WTGPOO large eye swivel is manufactured from high strength steel, hardened and tempered with a galvanised finish. The safety factor of the swivel is 5.

      The swivel is available for WLL from 390kg to 20500kg.

    Product details

    ^

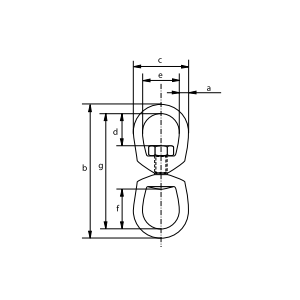

    RéférenceC.M.U.ØLongueurLargeur extérieureLongueur intérieureLargeur intérieureLongueur intérieureLongueurPoids
     [t]a [mm]b [mm]c [mm]d [mm]e [mm]f [mm]g [mm][kg]
    WTGPOO060.3968732181927750.1
    WTGPOO080.57810641212532900.18
    WTGPOO101.0210129512432381090.3
    WTGPOO131.613164643338511380.6
    WTGPOO162.416199764044601671
    WTGPOO193.319221894451671831.82
    WTGPOO224.5222571025257782132.55
    WTGPOO255.7252951145964892454.06
    WTGPOO328.2323371436880942737.43
    WTGPOO3820.53850117810210215042520.8
