Product description

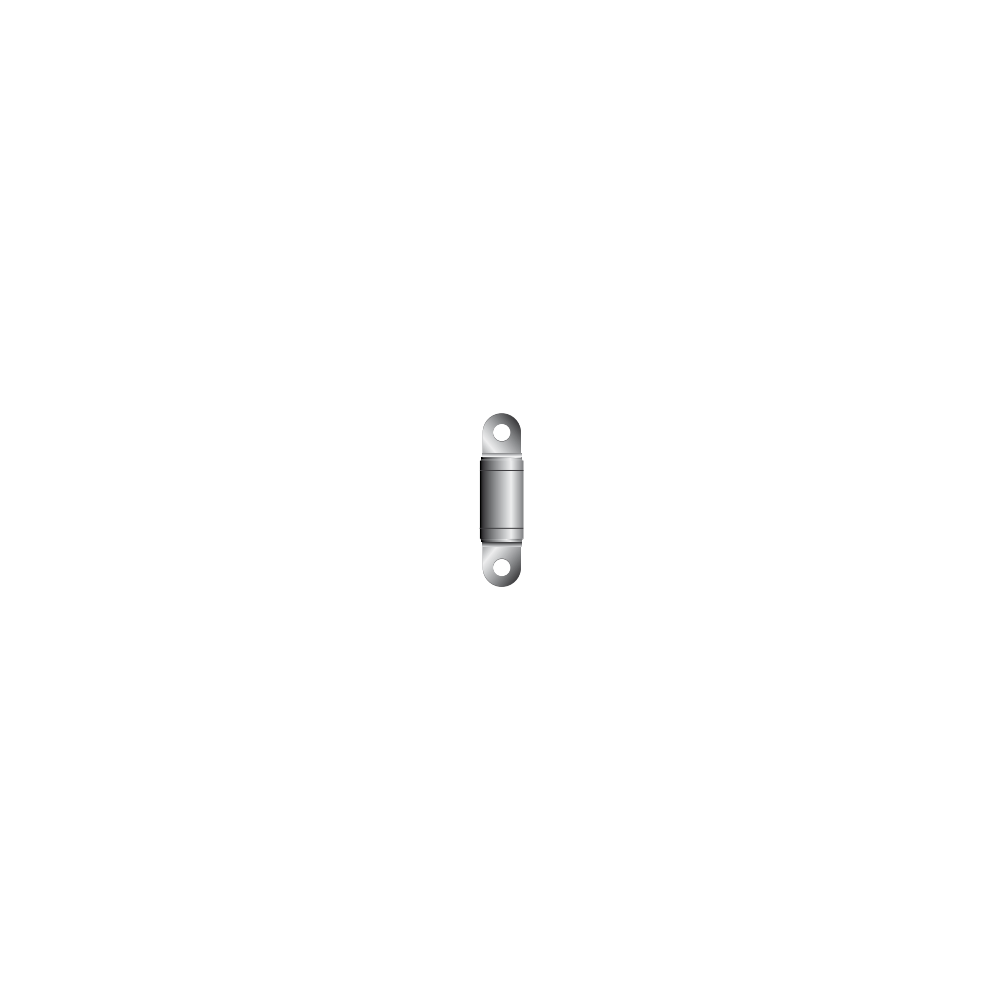

^The WTGOO eye/bearing swivel is manufactured from carbon steel with a black paint finish. The safety factor of the swivel is 5.
The eye swivel is available for WLLs from 1000 to 40,000kg.
Product details

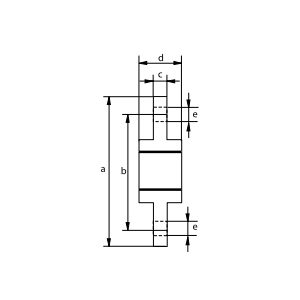

^| Référence | C.M.U. | Longueur | Longueur | Epaisseur | Ø | Ø trou | Poids |
| [t] | a [mm] | b [mm] | c [mm] | d [mm] | e [mm] | [kg] | |
| WTGOO010 | 1 | 174 | 128 | 12.5 | 49 | 21 | 1.4 |
| WTGOO020 | 2 | 223 | 173 | 19 | 68 | 22 | 3.5 |
| WTGOO030 | 3 | 278 | 210 | 26 | 79 | 29 | 6.4 |
| WTGOO050 | 5 | 290 | 222 | 26 | 89 | 31 | 7.9 |
| WTGOO080 | 8 | 366 | 276 | 40 | 106 | 43 | 15.2 |
| WTGOO100 | 10 | 390 | 300 | 40 | 118 | 49 | 19.1 |
| WTGOO150 | 15 | 457 | 355 | 40 | 128 | 49 | 26.6 |
| WTGOO200 | 20 | 474 | 372 | 40 | 118 | 51 | 25 |
| WTGOO300 | 30 | 612 | 472 | 64 | 138 | 59 | 50 |
| WTGOO400 | 40 | 760 | 600 | 68 | 168 | 65 | - |
Advices
The WTGOO eye/bearing swivel is manufactured from carbon steel with a black paint finish. The safety factor of the swivel is 5.
The eye swivel is available for WLLs from 1000 to 40,000kg.
