Product description

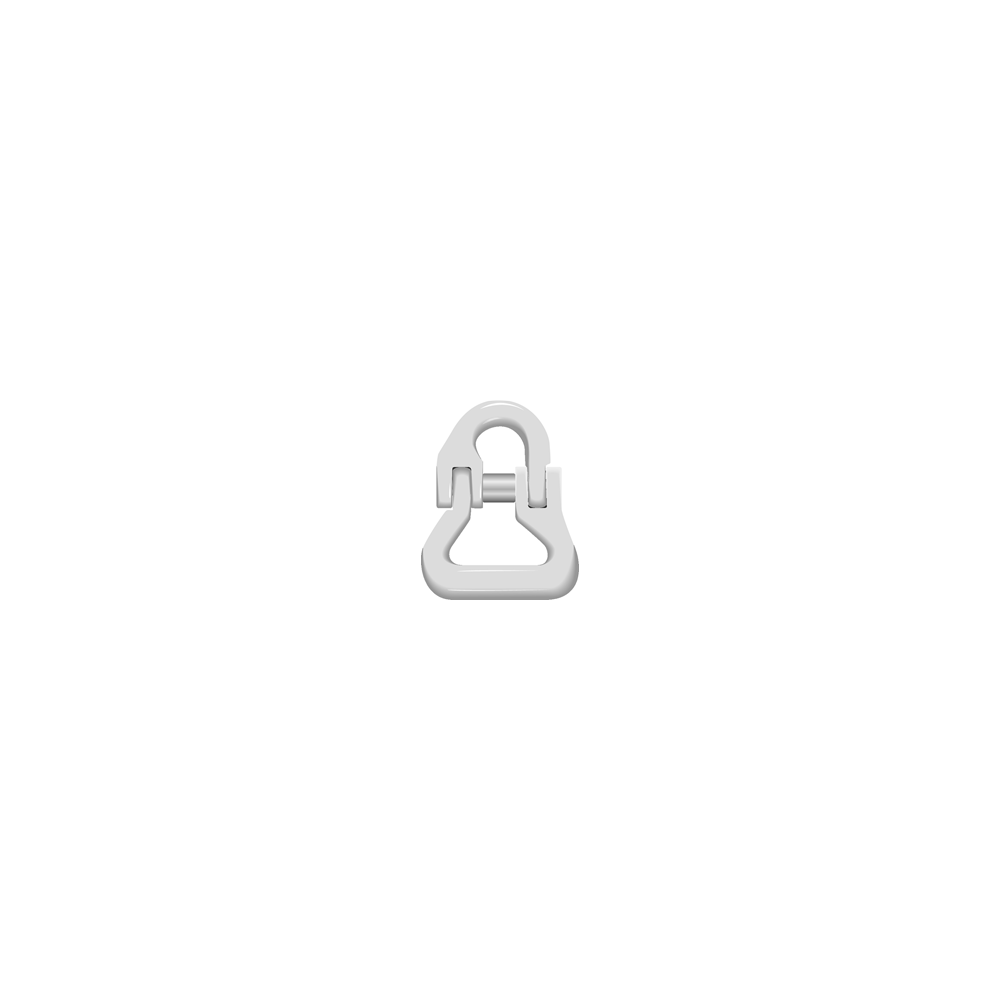

^The MJS grade 80 connecting link is designed to fit straps. The connecting link is made of alloy steel, hardened and tempered with yellow, red or white paint finish (on request). Its safety coefficient is 4 times the CMU.
The MJS connecting link is available for diameters from 7 to 13mm.
Product details

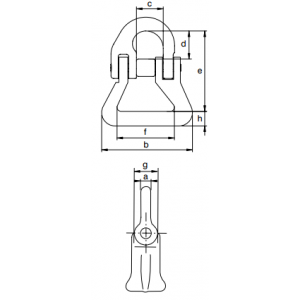

^| Référence | CMU | Pour chaîne Ø | Ø | Largeur extérieure | Largeur intérieure | Longueur intérieure | Longueur | Largeur intérieure | Ø œil | Epaisseur | Poids unitaire |
| [t] | [mm] | a [mm] | b [mm] | c [mm] | d [mm] | e [mm] | f [mm] | g [mm] | h [mm] | [kg] | |
| MJS07/8 | 2 | 7/8 | 9 | 66 | 19 | 21 | 61 | 40 | 14 | 14 | 0.31 |
| MJS10 | 3.2 | 10 | 12 | 76 | 25 | 24 | 74 | 45 | 19 | 15 | 0.51 |
| MJS13 | 5.4 | 13 | 16 | 87 | 30 | 30 | 91 | 51 | 24 | 19 | 1.01 |
Advices
The MJS grade 80 connecting link is designed to fit straps. The connecting link is made of alloy steel, hardened and tempered with yellow, red or white paint finish (on request). Its safety coefficient is 4 times the CMU.
The MJS connecting link is available for diameters from 7 to 13mm.
