Product description
^- STANDARD: EN 1677-1
MATERIAL: Alloy steel, class 80, quenched and tempered
SAFETY COEFFICIENT: 4 times the C.M.U. = minimum breaking load
FINISH: yellow (J), red (R) or white paint
Product details

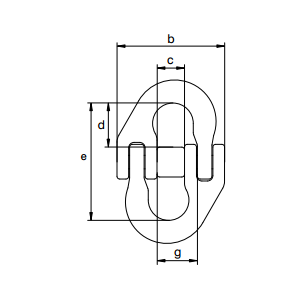

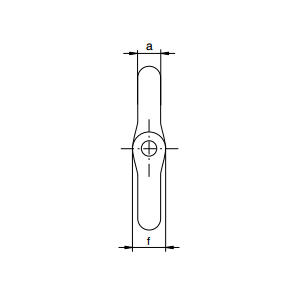

^| Référence | CMU | Pour chaîne Ø | Ø | Largeur extérieure | Largeur intérieure | Longueur intérieure | Longueur intérieure | Ø œil | Largeur intérieure | Poids unitaire |
| [t] | [mm] | a [mm] | b [mm] | c [mm] | d [mm] | e [mm] | f [mm] | g [mm] | [kg] | |
| MJ6 | 1.12 | 6 | 8 | 42 | 11 | 20 | 52 | 11 | 15 | 0.09 |
| MJ7/8 | 2 | 7/8 | 9 | 53 | 14 | 20 | 55 | 13 | 19 | 0.15 |
| MJ10 | 3.2 | 10 | 10 | 66 | 18 | 23 | 64 | 18 | 23 | 0.28 |
| MJ13 | 5.4 | 13 | 14 | 83 | 21 | 32 | 85 | 24 | 28 | 0.63 |
| MJ16 | 8.2 | 16 | 17 | 103 | 25 | 40 | 105 | 28 | 34 | 1.16 |
| MJ18/20 | 12.8 | 18/20 | 21 | 120 | 33 | 50 | 129 | 33 | 42 | 1.95 |
| MJ22 | 15.5 | 22 | 23 | 143 | 40 | 55 | 140 | 37 | 51 | 2.94 |
| MJ26 | 21.6 | 26 | 26 | 160 | 45 | 60 | 153 | 46 | 57 | 4.12 |
| MJ32 | 32.8 | 32 | 39 | 197 | 52 | 68 | 174 | 56 | 67 | 8.3 |
