Product description

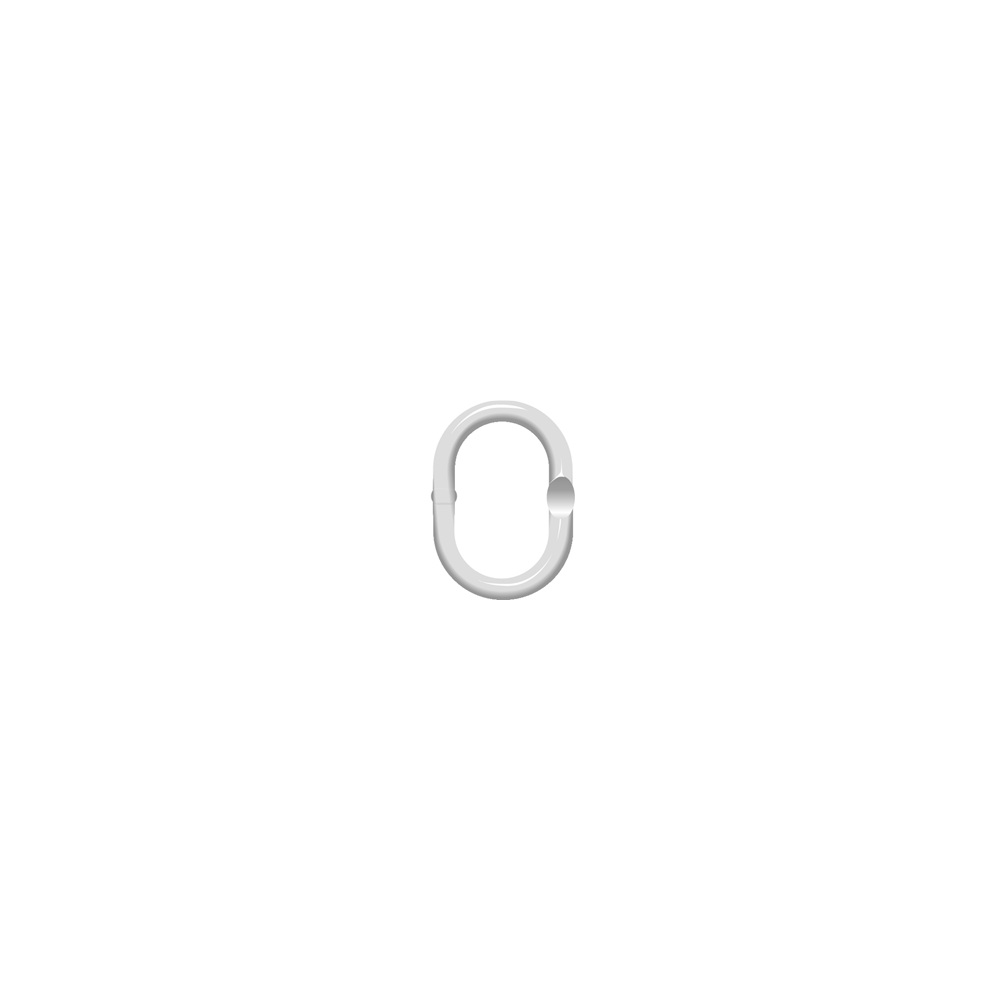

^The single head link grade 80 is used for 1 and 2 strand chain and rope slings.
All single head links are suitable for lifting, with a safety factor of 4 times the C.M.U. (Maximum Working Load).
The single head link grade 80 is manufactured from alloy steel, hardened and tempered with a yellow, red or white painted finish (please specify your preferred colour).
Product details

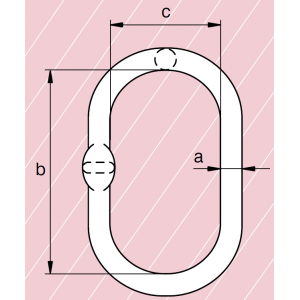

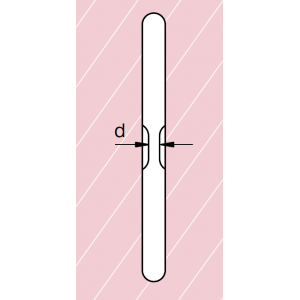

^| Référence | CMU | Diamètre chaîne 1 brin | Diamètre chaîne 2 brins | Dia | Longueur intérieure | Largeur intérieure | Epaisseur | Poids | |
| ß≤45° | ß≤60° | a | b | c | d | ||||
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MS13 | 1.6 | 6/7 | 6 | 6/7 | 13 | 100 | 60 | 7 | 0.33 |
| MS16 | 3.2 | 8 | 7/8 | 8 | 16 | 120 | 70 | 7 | 0.56 |
| MS18 | 4.5 | 10 | 10 | 10 | 18 | 135 | 75 | 9 | 0.8 |
| MS20 | 6.2 | 13 | - | 13 | 20 | 150 | 90 | 9 | 1.11 |
| MS22 | 8.2 | 16 | 13 | 16 | 22 | 150 | 90 | 11 | 1.36 |
| MS25 | 10.6 | 18 | - | 18 | 25 | 170 | 95 | 13 | 1.96 |
| MS28 | 12.8 | 20 | 16 | 19 | 28 | 200 | 120 | 13 | 2.92 |
| MS30 | 15.5 | 20/22 | 18 | 20/22 | 30 | 200 | 120 | 17 | 3.4 |
| MS36 | 20 | - | 19/20 | - | 36 | 250 | 150 | 17 | 6.1 |
| MS38 | 25 | 26 | 22 | 26 | 38 | 250 | 150 | 21 | 6.8 |
| MS44 | 30 | - | 26 | - | 44 | 280 | 170 | 21 | 10.8 |
| MS45 | 37 | 32 | - | 32 | 45 | 300 | 200 | 23 | 11.7 |
| MS50 | 50 | - | 32 | - | 50 | 300 | 200 | - | 14.75 |
| MS55 | 63 | - | - | - | 55 | 350 | 200 | - | 20 |
| MS70 | 100 | - | - | - | 70 | 400 | 250 | - | 39 |
| MS80 | 125 | - | - | - | 80 | 400 | 250 | - | 52 |
Advices
The single head link grade 80 is used for 1 and 2 strand chain and rope slings.
All single head links are suitable for lifting, with a safety factor of 4 times the C.M.U. (Maximum Working Load).
The single head link grade 80 is manufactured from alloy steel, hardened and tempered with a yellow, red or white painted finish (please specify your preferred colour).
