Product description

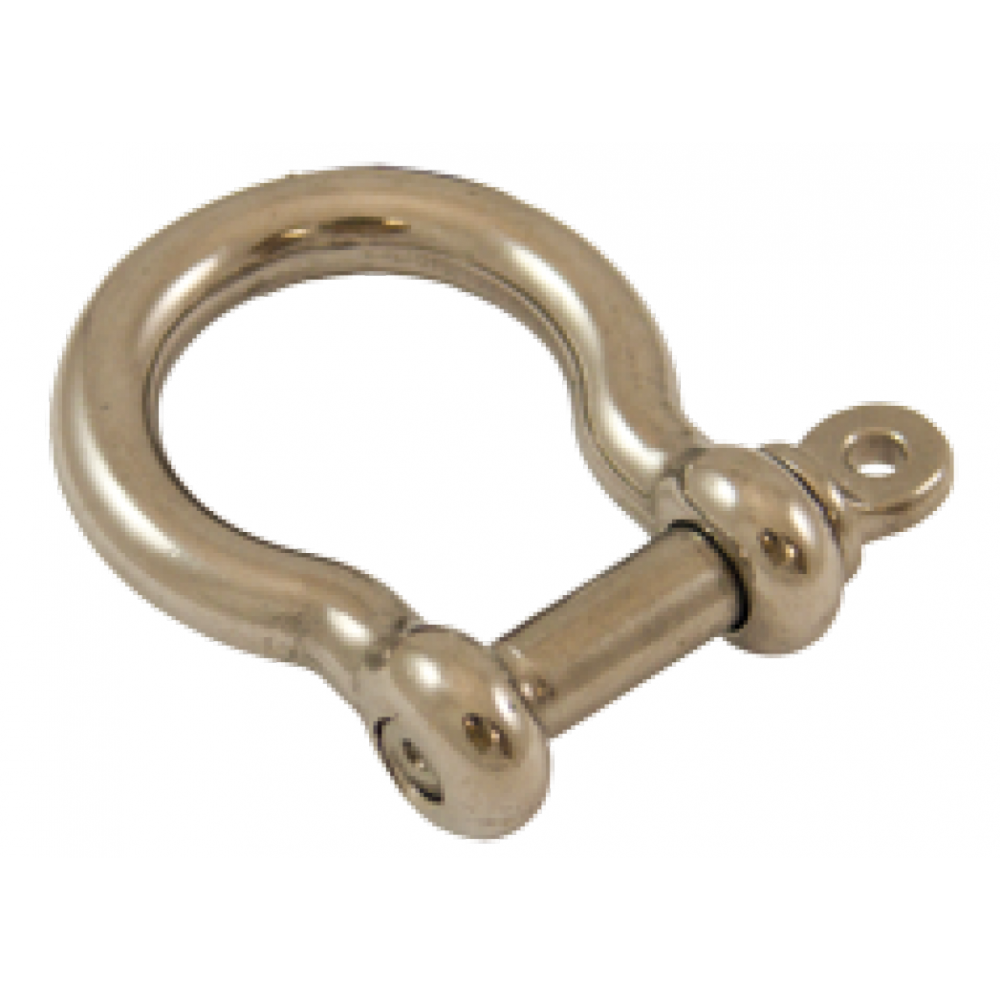

^The stainless steel eyebolt shackle, model MLI, is a lifting accessory made of stainless steel, reference AISI 316. The shackle allows you to connect a rope or chain with one or more lifting accessories. It is also used at the end of the lifting slings cable, chain and strap, single or multi-strand.
The stainless steel eyebolt shackle is available in several versions with a WLL ranging from 120 to 2,400 kg and a diameter of 4 to 19 mm. The safety coefficient is 5.
Please note that the lifting accessory is delivered without cable. For more information, please contact our customer service.
Product details

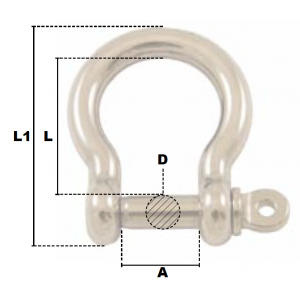

^| Référence | D | CMU | A | L | L1 | Poids |
| [mm] | [kg] | [mm] | [mm] | [mm] | [kg] | |
| MLI104 | 4 | 120 | 8 | 16 | 26 | 0.0085 |
| MLI105 | 5 | 190 | 10 | 19 | 30 | 0.015 |
| MLI106 | 6 | 360 | 13 | 23 | 39 | 0.03 |
| MLI108 | 8 | 540 | 17 | 30 | 52 | 0.08 |
| MLI110 | 10 | 720 | 19 | 38 | 65 | 0.13 |
| MLI112 | 12 | 1080 | 24 | 48.9 | 78 | 0.245 |
| MLI114 | 14 | 1260 | 28 | 60 | 90 | 0.375 |
| MLI116 | 16 | 1680 | 32 | 64 | 103 | 0.45 |
| MLI120 | 19 | 2400 | 40 | 74 | 130 | 0.86 |
