Product description

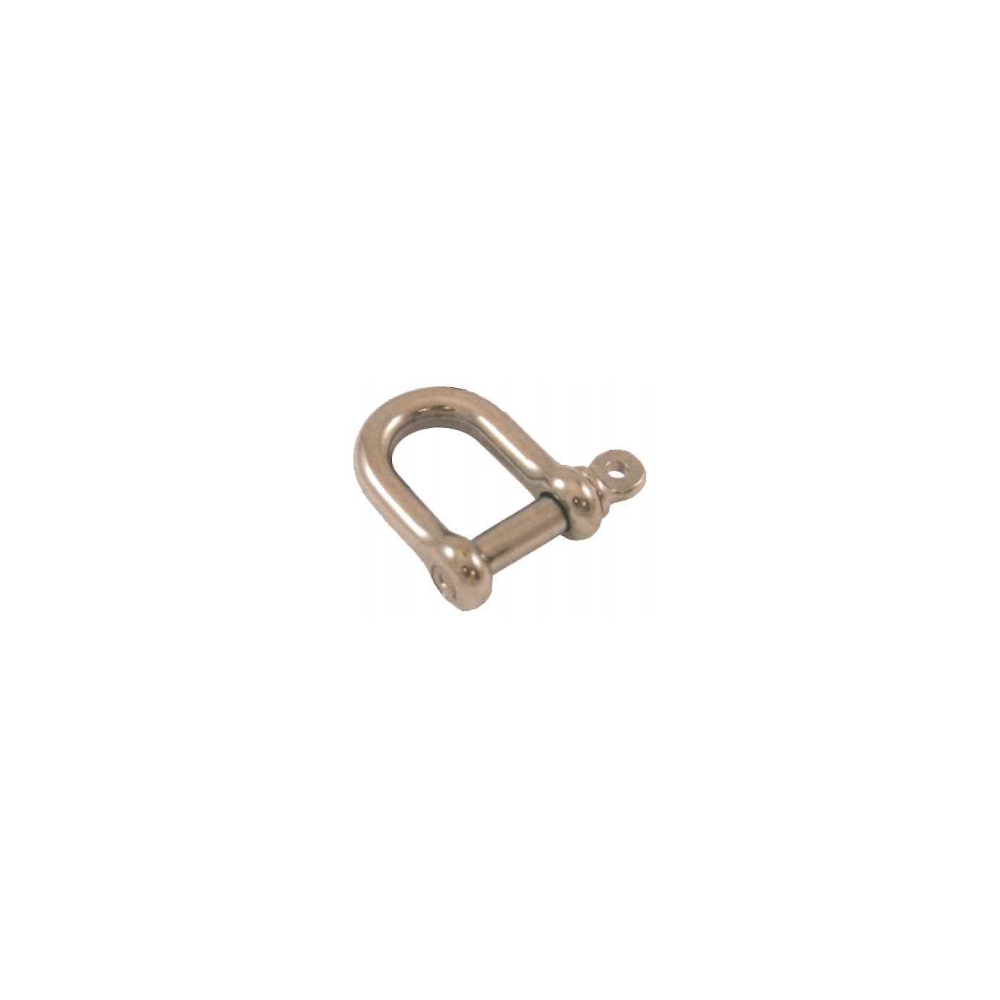

^The straight shackle with stainless steel eyebolt, model MDI is a lifting accessory that is made of stainless steel reference AISI 316. The shackle allows you to connect a rope or a chain with one or more lifting accessories. It is also used at the end of the lifting slings cable, chain and strap, single or multi-strand.
The stainless steel straight shackle is available in several variations with a WLL ranging from 120kg to 3060 kg and a diameter of 4 to 25 mm. The safety coefficient is 5.
Attention, the lifting accessory is delivered without cable. For more information, please contact our customer service.
Product details

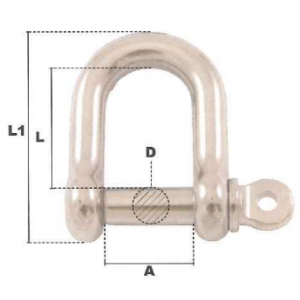

^| Référence | D | CMU | A | L | L1 | Poids |
| [mm] | [kg] | [mm] | [mm] | [mm] | [kg] | |
| MDI104 | 4 | 120 | 8 | 15 | 26 | 0.007 |
| MDI105 | 5 | 190 | 10 | 19 | 30 | 0.015 |
| MDI106 | 6 | 360 | 12 | 23 | 39 | 0.03 |
| MDI108 | 8 | 540 | 16 | 30.6 | 52 | 0.06 |
| MDI110 | 10 | 720 | 20 | 39 | 65 | 0.125 |
| MDI112 | 12 | 1080 | 24 | 49 | 78 | 0.20 |
| MDI114 | 14 | 1260 | 28 | 55 | 90 | 0.31 |
| MDI116 | 16 | 1680 | 32 | 65 | 103 | 0.51 |
| MDI120 | 20 | 2400 | 38 | 74 | 130 | 0.90 |
| MDI122 | 25 | 3060 | 50 | 99 | 162 | 1.74 |
