STANDARD CABLES WITH METALLIC CORE 6X36
6 x 36WS + IWRC D11
Product description

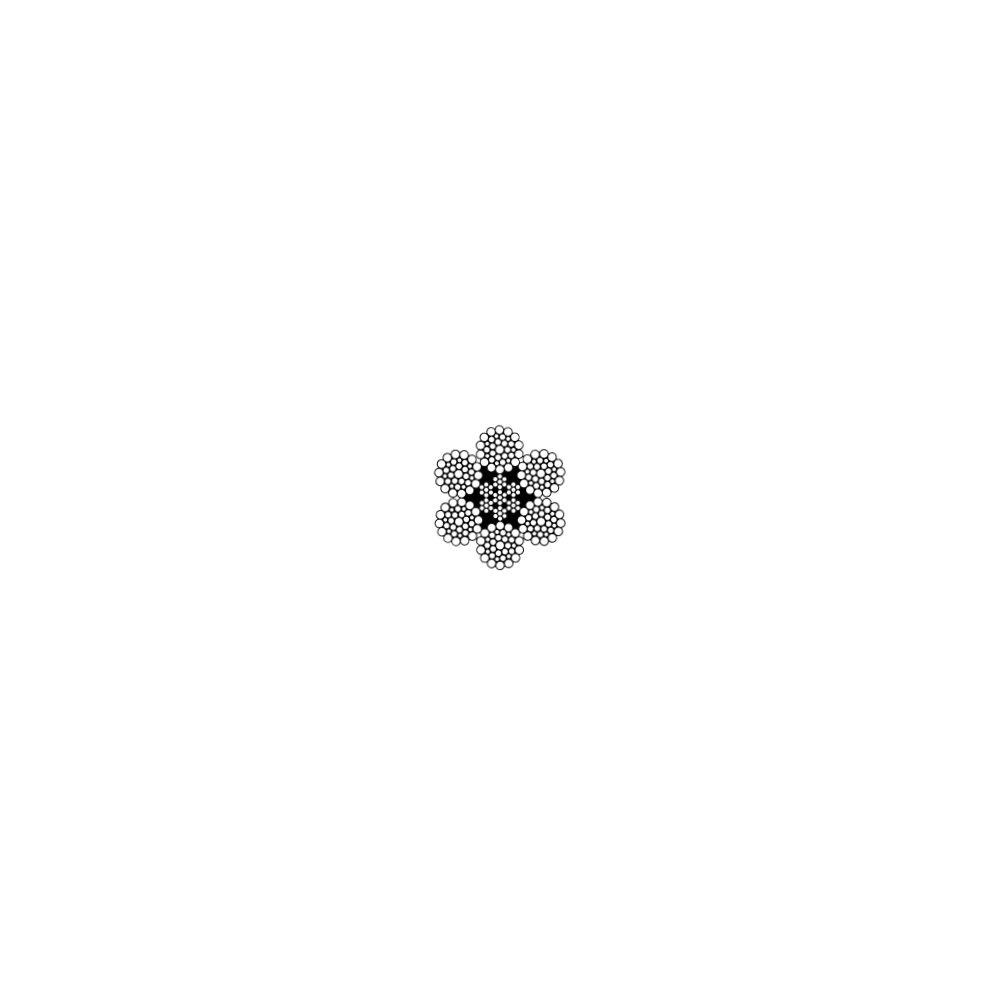

^The standard Galva 6X36 AM wire rope is a wire rope hoist rope composed of 6 strands of 36 wires each.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1m of cable
You are interested in this product ? Contact us via a quote request.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1m of cable
You are interested in this product ? Contact us via a quote request.
Product details
^| Ø câble | Poids | Charge de rupture minimale 1770 N/mm ² | Charge de rupture minimale 1770 N/mm ² | Charge de rupture minimale 1960 N/mm ² | Charge de rupture minimale 1960 N/mm ² |
| mm | kg/m | Kn | KG | Kn | KG |
| 8 | 26,2 | 40.3 | 4110 | 44.7 | 4560 |
| 9 | 33,1 | 51 | 5200 | 56.5 | 5760 |
| 10 | 40,9 | 63 | 6420 | 69.8 | 7120 |
| 11 | 49,5 | 76.2 | 7770 | 84.4 | 8600 |
| 12 | 58,9 | 90.7 | 9250 | 100 | 10200 |
| 13 | 69,1 | 106 | 10800 | 118 | 12000 |
| 14 | 80,2 | 124 | 12600 | 137 | 14000 |
| 16 | 105 | 161 | 16400 | 179 | 18300 |
| 18 | 133 | 204 | 20800 | 226 | 23000 |
| 19 | 148 | 227 | 23200 | 252 | 25700 |
| 20 | 164 | 252 | 25700 | 279 | 28500 |
| 22 | 198 | 305 | 31100 | 338 | 34500 |
| 24 | 236 | 363 | 37000 | 402 | 41000 |
| 26 | 276 | 426 | 43400 | 472 | 48100 |
| 28 | 321 | 494 | 50400 | 547 | 55800 |
| 30 | 368 | 567 | 57800 | 628 | 64000 |
| 32 | 419 | 645 | 65800 | 715 | 72900 |
| 34 | 473 | 728 | 74200 | 807 | 82300 |
| 36 | 530 | 817 | 83300 | 904 | 92200 |
| 38 | 591 | 910 | 92800 | 1010 | 103000 |
| 40 | 654 | 1010 | 103000 | 1120 | 114000 |
| 42 | 721 | 1110 | 113000 | 1230 | 125000 |
| 44 | 792 | 1220 | 124000 | 1350 | 138000 |
| 48 | 942 | 1450 | 148000 | 1610 | 164000 |
| 51 | 1064 | 1639 | 167000 | 1815 | 185000 |
| 52 | 1100 | 1700 | 173000 | 1890 | 193000 |
| 56 | 1280 | 1980 | 202000 | 2190 | 223000 |
| 57 | 1329 | 2047 | 208000 | 2267 | 231000 |
| 60 | 1470 | 2270 | 232000 | 2510 | 256000 |
| 64 | 1675 | 2580 | 263000 | 2858 | 291000 |
