STANDARD CABLES WITH 6X36 GALVANIZED TEXTILE CORE
CAG08 6X36 AT
Product description

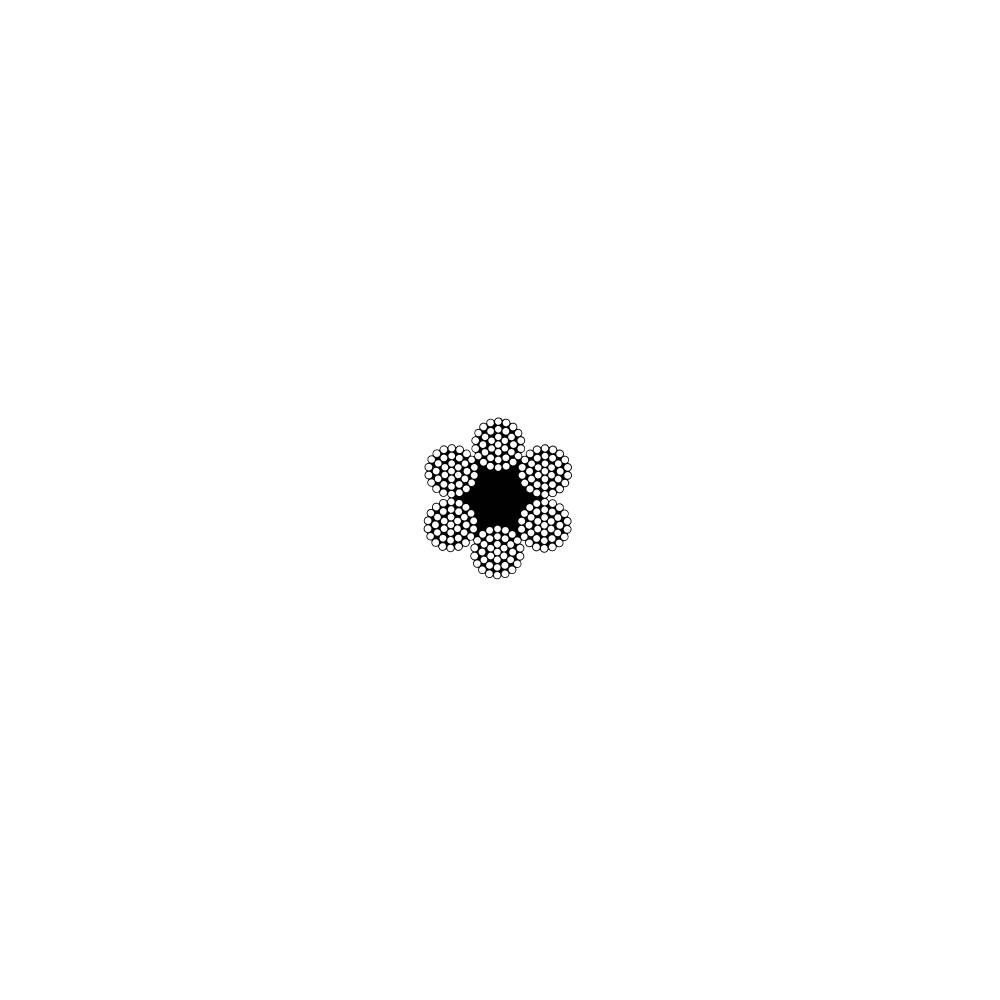

^The standard Galva 6X36 textile core hoisting rope is a textile core hoisting rope composed of 6 strands of 36 wires each.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1M of cable
You are interested in this product ? Contact us via a quote request.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1M of cable
You are interested in this product ? Contact us via a quote request.
Product details
^| Ø câble | Poids | Charge de rupture minimale 1770 N/mm ² | Charge de rupture minimale 1770 N/mm ² | Charge de rupture minimale 1960 N/mm ² | Charge de rupture minimale 1960 N/mm ² |
| mm | kg/m | Kn | KG | Kn | KG |
| 8 | 23,5 | 37.4 | 3810 | 41.4 | 4220 |
| 9 | 29,7 | 47.3 | 4820 | 52.4 | 5340 |
| 10 | 36,7 | 58.4 | 5960 | 64.7 | 6600 |
| 11 | 44,4 | 70.7 | 7210 | 78.3 | 7990 |
| 12 | 52,8 | 84.1 | 8580 | 93.1 | 9500 |
| 13 | 62 | 98.7 | 10100 | 109 | 11100 |
| 14 | 71 | 114 | 11600 | 127 | 13000 |
| 16 | 94 | 150 | 15300 | 166 | 16900 |
| 18 | 119 | 189 | 19300 | 210 | 21400 |
| 20 | 147 | 234 | 23900 | 259 | 26400 |
| 22 | 178 | 283 | 28900 | 313 | 31900 |
| 24 | 211 | 336 | 34300 | 373 | 38000 |
| 26 | 248 | 395 | 40300 | 437 | 44600 |
| 28 | 288 | 458 | 46700 | 507 | 51700 |
| 30 | 330 | 526 | 53600 | 582 | 59400 |
| 32 | 376 | 598 | 61000 | 662 | 67500 |
| 36 | 476 | 757 | 77200 | 838 | 85500 |
| 38 | 530 | 843 | 86000 | 934 | 95000 |
| 40 | 587 | 935 | 95300 | 1040 | 106100 |
| 44 | 711 | 1130 | 115000 | 1250 | 127000 |
| 48 | 846 | 1350 | 138000 | 1490 | 152000 |
| 52 | 992 | 1580 | 161000 | 1750 | 178000 |
| 56 | 1150 | 1830 | 187000 | 2030 | 207000 |
| 60 | 1320 | 2100 | 214000 | 2330 | 238000 |
The standard Galva 6X36 textile core hoisting rope is a textile core hoisting rope composed of 6 strands of 36 wires each.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1M of cable
You are interested in this product ? Contact us via a quote request.
Right or left hand crossover rope
Product delivered with CE declaration of conformity
Grade : 1770 N/mm ² or 1960 N/mm ².
Applications: all purpose
Price valid for 1M of cable
You are interested in this product ? Contact us via a quote request.
