Product description

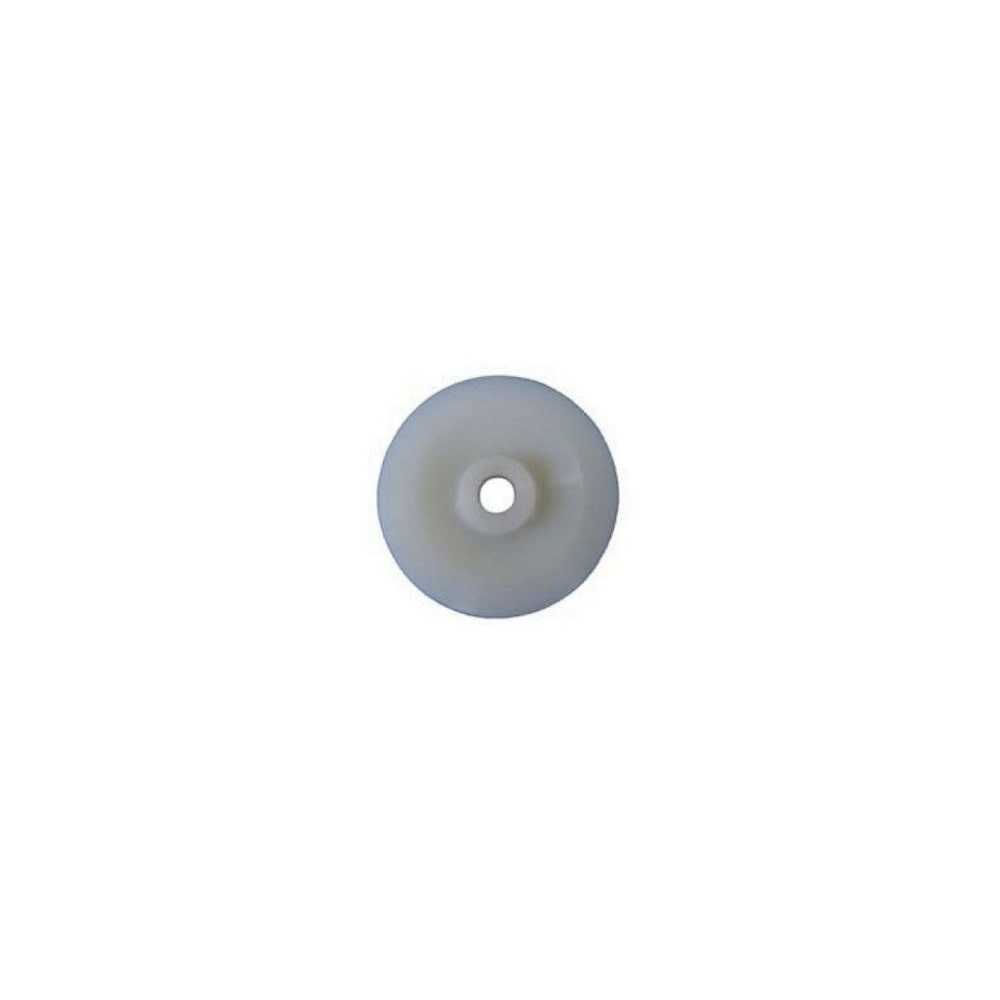

^The polyamide sheave for rope reference RP_GR is a lifting accessory that has a bare bore and is without bearing. The sheave represents the groove of a pulley. It rotates around the axis of the pulley, around which it is possible to put a rope or a cable. The sheave is made of steel.
The external diameter of the polyamide sheave is available in several variations with a diameter of 18mm to 174mm for ropes from 3mm to 12mm.
Please note that the product is supplied bare without rope. For more information about the lifting accessory, please contact customer service.
Product details

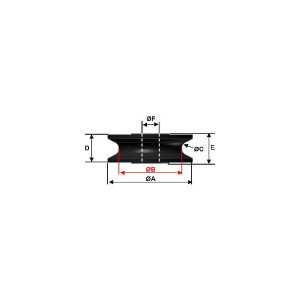

^| Reference | Ø A mm | Ø B mm | Ø C mm | D mm | E mm | Ø F mm | Weight kg |
| RP25GR | 25 | 17.5 | 3 | 9 | 10 | 5.2 | 0.004 |
| RP35GR | 35 | 25 | 8 | 13 | 14 | 5.2 | 0.006 |
| RP40GR | 39 | 35 | 4 | 7.5 | 8.5 | 6.2 | 0.008 |
| RP46GR | 46 | 36 | 5 | 9.5 | 10.2 | 6.2 | 0.01 |
| RP62GR | 62 | 43 | 6 | 14 | 16.5 | 12.2 | 0.04 |
| RP76GR | 76 | 61 | 10 | 15 | 25 | 12.2 | 0.04 |
| RP80GR | 80 | 59 | 6 | 19 | 24.5 | 12.2 | 0.08 |
| RP100GR | 100 | 78 | 8 | 19 | 25 | 12.5 | 0.08 |
| RP120GR | 120 | 98 | 10 | 19 | 25 | 12.5 | 0.12 |
| RP140GR | 140 | 118 | 10 | 19 | 25 | 12.5 | 0.16 |
| RP174GR | 174 | 154 | 6 | 17.5 | 17.5 | 35 | 0.33 |
