Product description
^The RABM bronze ring rope sheave is a lifting accessory with a bare bore and no bearings. The sheave represents the groove of a pulley. It rotates around the axis of the pulley, around which it is possible to put a rope or a cable. The sheave is finished in zinc-plated steel.
The steel sheave is available in several versions for ropes with a diameter of 4 to 28 mm. It is also available for CMU ranging from 0,4 to 8t.
Please note that the product is supplied bare without rope. For more information about the lifting accessory, please contact the customer service.
Product details

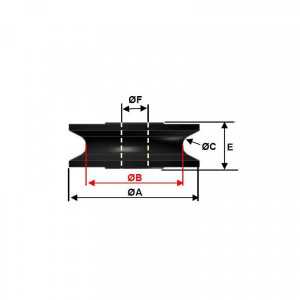

^| Référence | CMU kg | Ø A mm | Ø B mm | Ø C câble mm | Ø E mm | Ø F mm | Poids kg |
| RABM 60 | 400 | 60 | 50 | 4 | 10 | 10 | 0.15 |
| RABM 80 | 400 | 80 | 70 | 5 | 12 | 12 | 0.28 |
| RAB 80 | 1000 | 80 | 65 | 5 – 8 | 22 | 16 | 0.64 |
| RAB 82 | 1000 | 80 | 60 | 11 | 28 | 20 | 0.94 |
| RABM 100 | 1000 | 100 | 85 | 6 | 16 | 16 | 0.67 |
| RAB 100 | 1600 | 100 | 86 | 8 – 10 | 25 | 16 | 1 |
| RAB 110 | 5000 | 110 | 75 | 16 | 35 | 35 | 1.6 |
| RABM 120 | 1500 | 120 | 105 | 7 – 8 | 18 | 18 | 1 |
| RABM 150 | 2000 | 150 | 120 | 9 – 10 | 25 | 20 | 1.9 |
| RAB 150 | 2000 | 150 | 125 | 12 – 14 | 30 | 20 | 2 |
| RAB 151 | 5000 | 150 | 115 | 18 | 35 | 35 | 3.2 |
| RAB 152 | 5000 | 150 | 110 | 16 – 20 | 40 | 50 | 2.8 |
| RAB 153 | 8000 | 150 | 105 | 18 – 22 | 45 | 50 | 3.5 |
| RABM 200 | 3000 | 200 | 170 | 11 – 12 | 25 | 25 | 2.7 |
| RAB 200 | 3000 | 200 | 170 | 14 – 16 | 30 | 20 | 3 |
| RAB 201 | 8000 | 200 | 160 | 22 – 28 | 45 | 50 | 6 |
| RAB 202 | 3400 | 200 | 160 | 18 | 35 | 35 | 3.7 |
| RABM 250 | 4000 | 250 | 210 | 13 – 14 | 30 | 30 | 4.5 |
| RAB 250 | 4000 | 250 | 210 | 16 – 18 | 35 | 35 | 4.2 |
| RABM 300 | 6000 | 300 | 260 | 16 – 18 | 35 | 35 | 7.5 |
| RAB 300 | 6000 | 300 | 250 | 20 – 22 | 45 | 50 | 12.1 |
| RABM 350 | 6000 | 350 | 290 | 20 | 40 | 35 | 12.5 |
| RAB 350 | 6000 | 350 | 290 | 22 – 24 | 45 | 50 | 11.5 |
| RAB 400 | 8000 | 400 | 344 | 24 – 28 | 50 | 60 | 16.9 |
