Product description

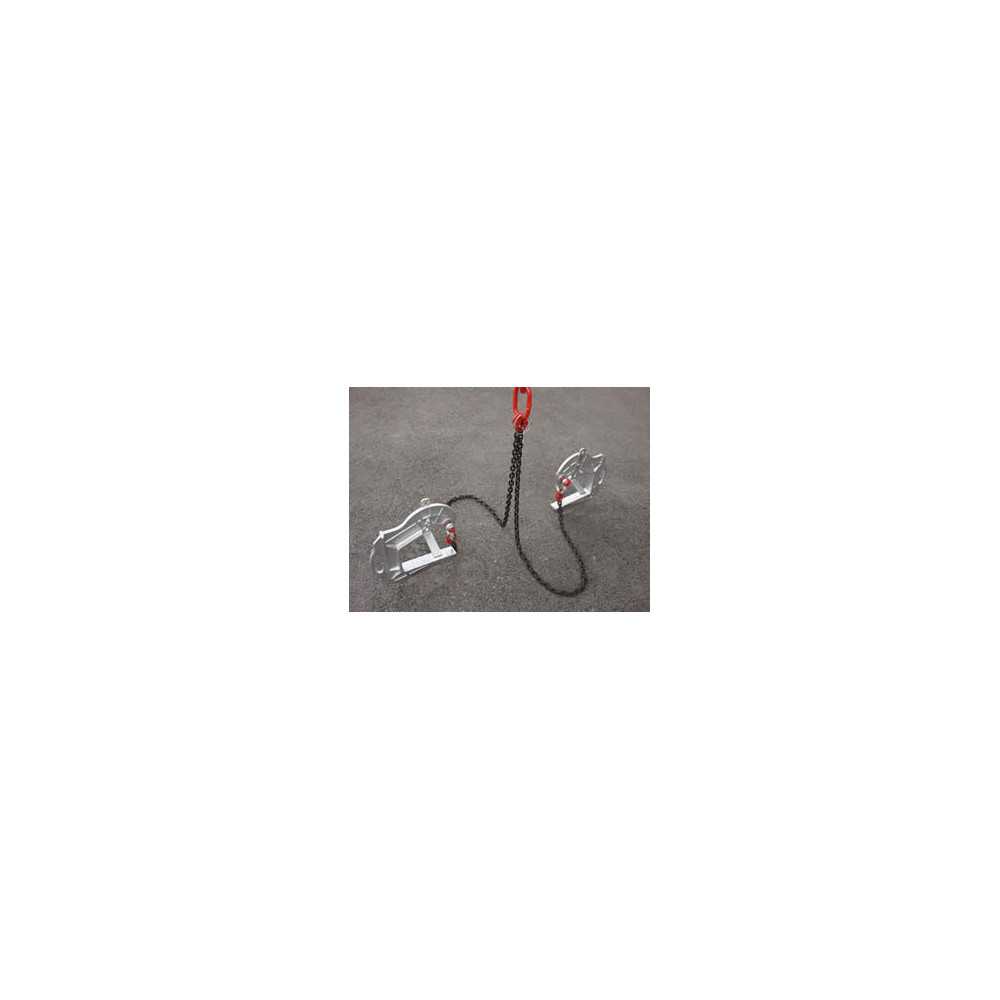

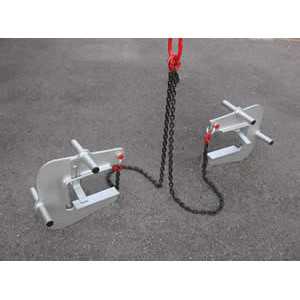

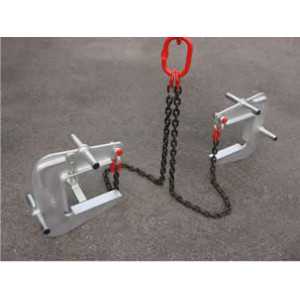

^PAT concrete pipe hooks are available for GVWRs from 1000kg to 4000kg.
Handling is possible with a single operator as the hooks are fitted with holding brackets to fit loosely over the pipe ends.
Product details
^| Référence | CMU t | Poids kg | Longueur des chaîne (m) | Nombre de Pinces | Prise mm | Ø nominal des produits mm |
| PAT 1000 | 1 | 20 | 1.6 | 2 | 0-135 | 300-600 |
| PAT 2000 | 2 | 40 | 1.6 | 2 | 50-170 | 300-800 |
| PAT 4000 | 4 | 50 | 1.6 | 2 | 100-230 | 600-12000 |
PAT concrete pipe hooks are available for GVWRs from 1000kg to 4000kg.
Handling is possible with a single operator as the hooks are fitted with holding brackets to fit loosely over the pipe ends.
