Product description

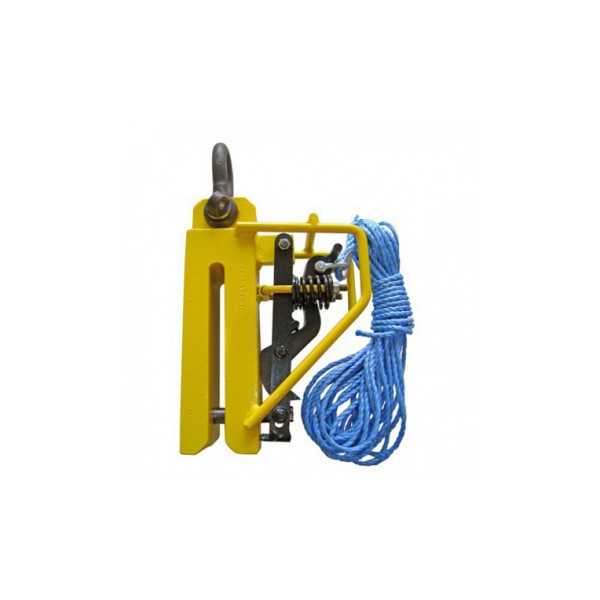

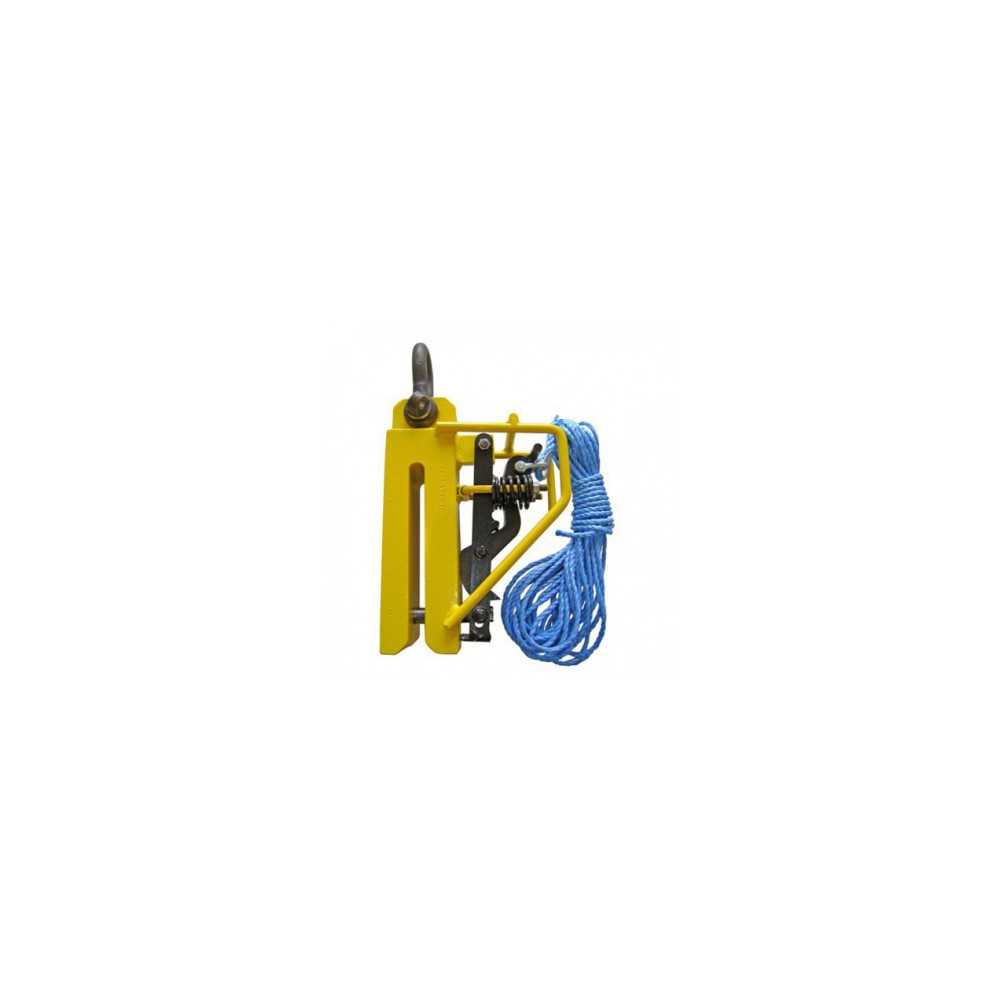

^The sheet pile clamp part number 6003 is a lifting device for carrying heavy loads. This clamp has an opening and closing lever equipped with a ᴓ7 mm rope and a length of 18 m. These sheet pile clamps are a great replacement for shackles due to their remote locking system, eliminating the long and tedious uncoupling of traditional shackles.
This lifting product is available in several versions with a GVW of 2,000 to 6,000 kg.
Please note: this lifting clamp is not designed for sheet pile removal and should not be used for this purpose.
For more information, please contact our customer service.
Product details

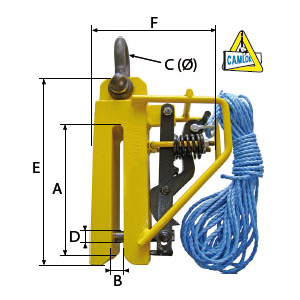

^| Référence | CMU t | Poids kg | A mm | B mm | C mm | D mm | E mm | ØF mm |
| 6003-B15 | 2 | 19 | 228 | 20 | 50 | 20 | 337 | 200 |
| 6003-C30 | 3 | 23 | 228 | 26 | 63 | 30 | 344 | 210 |
| 6003-F60 | 6 | 33 | 228 | 35 | 89 | 30 | 304 | 225 |
The sheet pile clamp part number 6003 is a lifting device for carrying heavy loads. This clamp has an opening and closing lever equipped with a ᴓ7 mm rope and a length of 18 m. These sheet pile clamps are a great replacement for shackles due to their remote locking system, eliminating the long and tedious uncoupling of traditional shackles.
This lifting product is available in several versions with a GVW of 2,000 to 6,000 kg.
Please note: this lifting clamp is not designed for sheet pile removal and should not be used for this purpose.
For more information, please contact our customer service.
