Product description

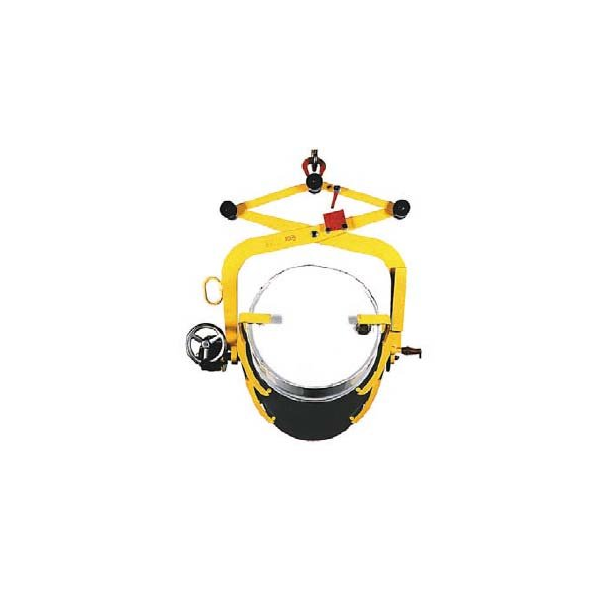

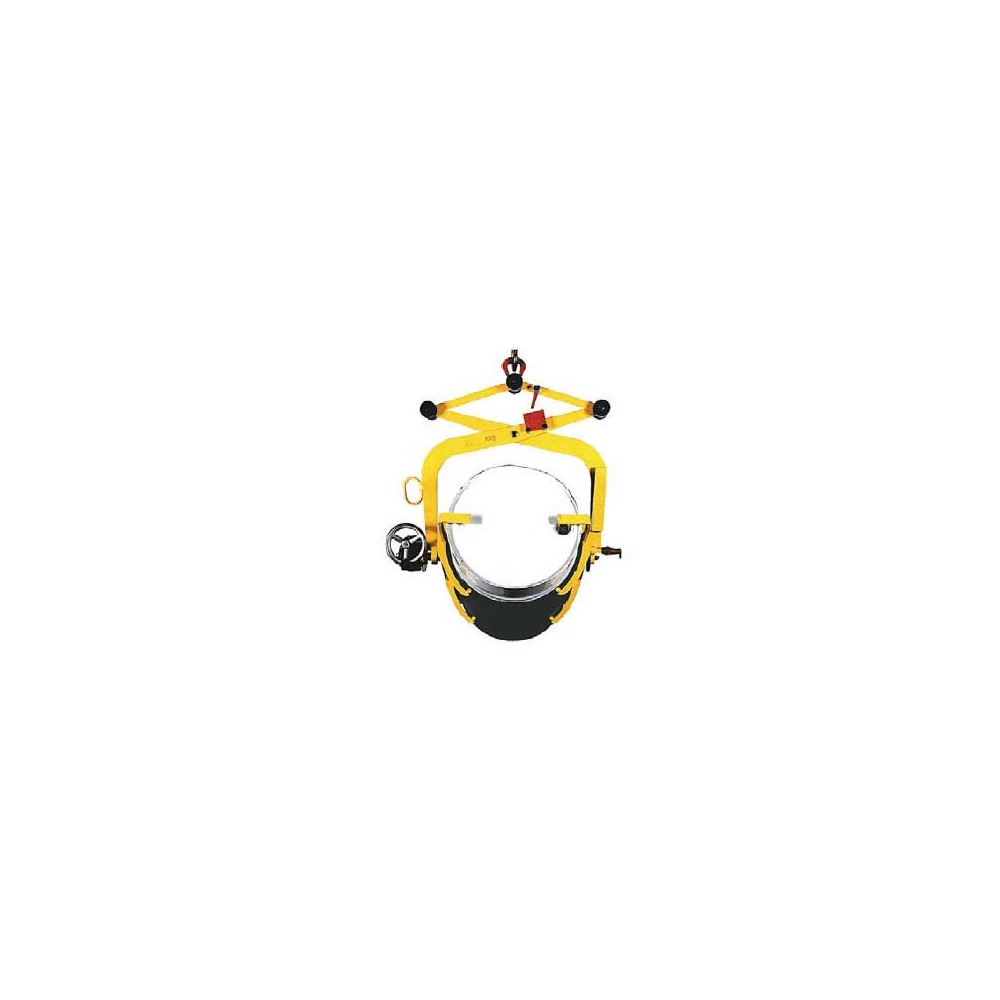

^The TRACTEL drum tipping clamp, model VFB, is a lifting and handling device made of steel. This clamp is equipped with an automatic locking of the open position in order to carry out the removal of the drum without intervention on the device. The handling clamp is automatically centered and holds the load in all positions thanks to the centered pressure that the flexible polyurethane belt exerts on the drum. In addition, its suspension eyelet can be rotated 360°. Moreover, its polyurethane belt is resistant to chemicals.
Finally, this lifting device is light and transportable. The clamp is available with a GVW of 300 kg.
For more information, please contact our customer service.
Product details

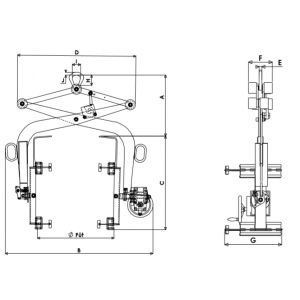

^| Référence | C.M.U. kg | Diam. fût | A | B | C | D | E | F | G | H | I | J | Poids KG |
| VFB 03 S | 300 | 600 | 465 | 946 | 730 | 930 | 20 | 86 | 425 | 80 | 64 | 23 | 53 |
| VFB 03 A | 300 | 600 | 465 | 946 | 730 | 930 | 20 | 170 | 425 | 80 | 64 | 23 | 54 |
| VFB 03 AR | 300 | 600 | 465 | 1175 | 730 | 930 | 20 | 170 | 425 | 80 | 64 | 23 | 66 |
The TRACTEL drum tipping clamp, model VFB, is a lifting and handling device made of steel. This clamp is equipped with an automatic locking of the open position in order to carry out the removal of the drum without intervention on the device. The handling clamp is automatically centered and holds the load in all positions thanks to the centered pressure that the flexible polyurethane belt exerts on the drum. In addition, its suspension eyelet can be rotated 360°. Moreover, its polyurethane belt is resistant to chemicals.
Finally, this lifting device is light and transportable. The clamp is available with a GVW of 300 kg.
For more information, please contact our customer service.
