Product description

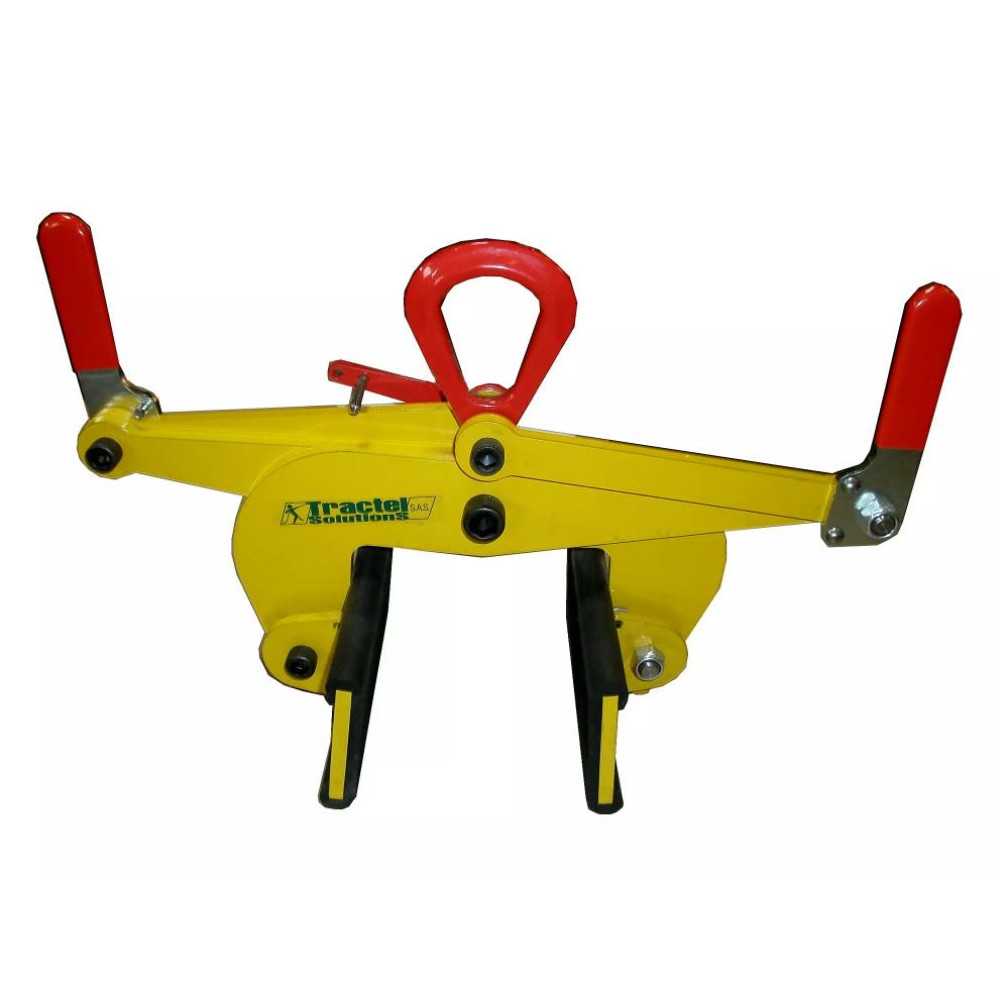

^The TRACTEL block lifter, model PB, is a lifting device for lifting and moving heavy loads. This lifting product is a semi-automatic model.
The lifting clamp is equipped with an automatic locking of the open position allowing the removal of the load without user intervention. In addition, the jaws are covered with interchangeable rubber to avoid damaging the load. The safety coefficient of the lifting device is 3.
The lifting clamp is available in several versions with a GVW of 500 to 3,000 kg and a grip setting (mini-maxi) of 0-100 to 500-800 mm. For more information about our lifting product, please consult our customer service.
Product details
^| Référence | CMU kg | Prise mm | Poids kg |
| PB05 0-100 | 500 | 0 – 100 | 9 |
| PB05 100-250 | 500 | 100 – 250 | 11 |
| PB05 200-500 | 500 | 200 – 500 | 18 |
| PB1 0-200 | 1000 | 0 – 200 | 23 |
| PB1 200-500 | 1000 | 200 – 500 | 46 |
| PB1 500-800 | 1000 | 500 – 800 | 71 |
| PB1 700-1000 | 1000 | 700 – 1000 | 95 |
| PB3 200-500 | 3000 | 200 – 500 | 130 |
| PB3 500-800 | 3000 | 500 – 800 | 177 |

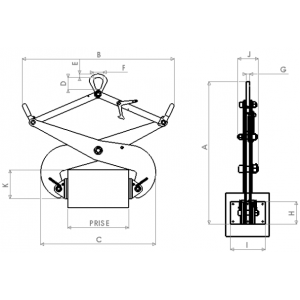

| Dimensions | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm | K mm |
| PB05 0-100 | 320 – 551 | 545 – 600 | 236 – 290 | 69 | 18 | 52 | 16 | 96 | 200 | 95 | 118 – 150 |
| PB05 100-250 | 340 – 684 | 575 – 680 | 345 – 440 | 69 | 18 | 52 | 16 | 96 | 200 | 95 | 113 – 127 |
| PB05 200-500 | 464 – 1031 | 823 – 975 | 578 – 734 | 80 | 23 | 64 | 20 | 96 | 200 | 95 | 203 – 261 |
| PB1 0-200 | 459 – 837 | 750 – 847 | 392 – 484 | 80 | 23 | 64 | 20 | 130 | 200 | 125 | 190 – 240 |
| PB1 200-500 | 550 – 1160 | 870 – 1085 | 635 – 812 | 80 | 23 | 64 | 20 | 130 | 200 | 123 | 175 – 240 |
| PB1 500-800 | 781 – 1370 | 1045 – 1200 | 1003 – 1146 | 170 | 38 | 110 | 10 | 150 | 300 | 289 | 287 – 337 |
| PB1 700-1000 | 915 – 1481 | 1162 – 1304 | 1205 – 1330 | 170 | 38 | 110 | 10 | 150 | 300 | 286 | 364 – 407 |
| PB3 200-500 | 888 – 1237 | 797 – 894 | 743 – 879 | 170 | 38 | 110 | 20 | 150 | 389 | 334 | 302 – 364 |
| PB3 500-800 | 1025 – 1462 | 1018 – 1109 | 1057 – 1181 | 170 | 38 | 110 | 20 | 150 | 389 | 334 | 318 – 377 |
