Product description

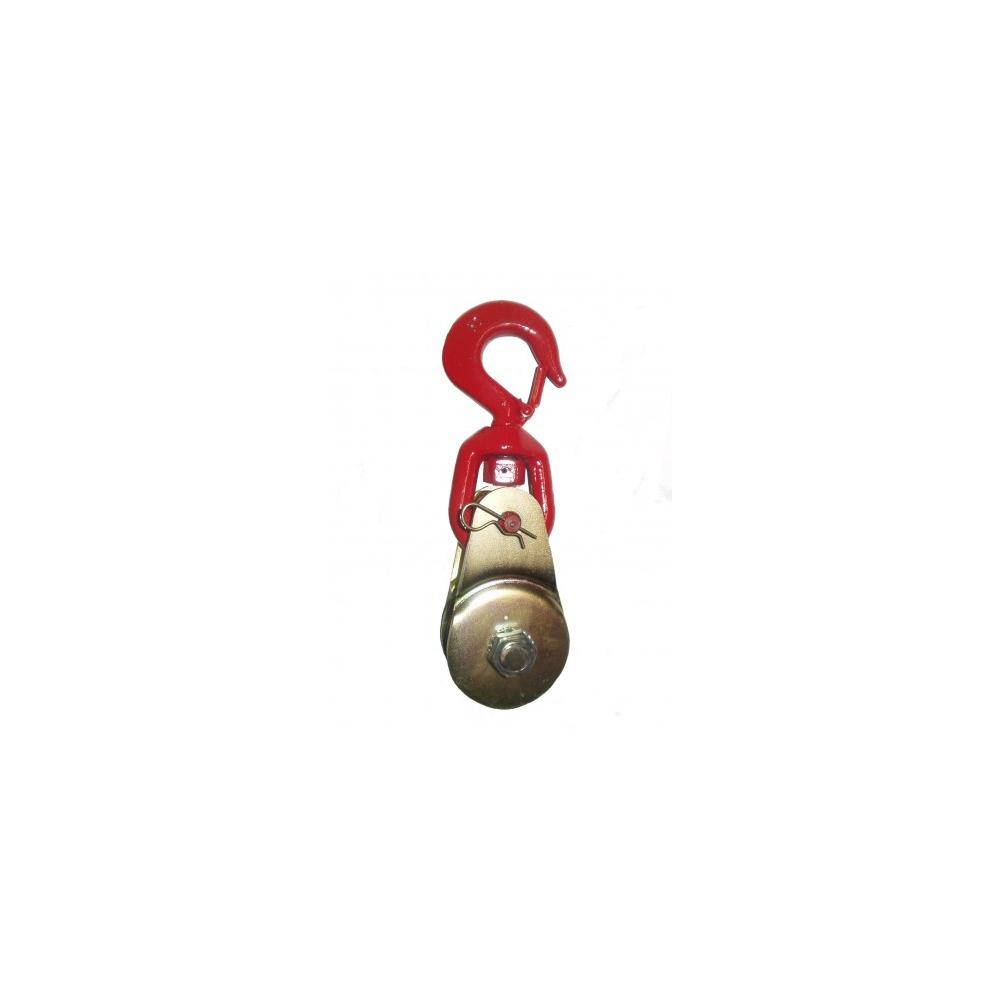

^The traction or return and off shore pulley for rope is a steel lifting accessory composed of a swivel hook and a safety latch.
The sheave is mounted on a bronze ring of reference BB with an axial grease fitting for models with a CMU of 12.5t minimum. In addition, the sheave is mounted on a sealed and lubricated ball bearing with axial grease nipple. The pulley can be opened by unlocking the captive pin and rotating the mobile cheek around the sheave axis.
It has a safety coefficient of 4. The pulley can be finished in zinc-plated or yellow paint RAL 1028. Finally, the pulley is available in several variations with a WLL from 1 to 30t and a diameter from 80 to 300mm.
Please note that the product is delivered bare without cable.
For more information on this lifting product, you can contact our customer service.
Product details

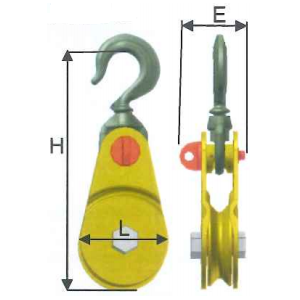

^| Référence | CMU | Ø câble | Ø réas | Longueur | Hauteur | Epaisseur | Montage du réa | Poids |
| L | H | E | ||||||
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| AJ 10 BB | 1 | 7.5 – 8 | 80 | 86 | 254 | 50 | BB | 2.5 |
| AJ 20 BB | 2 | 9 – 11 | 80 | 86 | 285 | 65 | BB | 3.5 |
| AJ 30 BB | 3 | 12 – 16 | 110 | 120 | 342 | 82 | BB | 7.8 |
| AJ 50 BB | 5 | 12 – 16 | 110 | 120 | 390 | 82 | BB | 8 |
| AJ 51 BB | 5 | 16 – 20 | 150 | 160 | 425 | 82 | BB | 10.1 |
| AJ 80 BB | 8 | 16 – 20 | 150 | 160 | 450 | 105 | BB | 17.5 |
| AJ 82 BB | 8 | 20 – 22 | 200 | 210 | 525 | 105 | BB | 22 |
| AJ 82 RO | 8 | 20 – 22 | 200 | 210 | 525 | 105 | RO | 22 |
| AJ 83 RO | 8 | 20 – 24 | 300 | 310 | 700 | 137 | RO | 24.5 |
| AJ 125 BB | 12.5 | 20 – 24 | 150 | 160 | 525 | 145 | BB | 25 |
| AJ 125 RO | 12.5 | 20– 24 | 150 | 160 | 525 | 145 | RO | 25 |
| AJ 127 BB | 12.5 | 24 – 28 | 200 | 210 | 600 | 145 | BB | 29 |
| AJ 127 RO | 12.5 | 24 – 28 | 200 | 210 | 600 | 145 | RO | 29 |
| AJ 150 BB | 15 | 24 – 28 | 400 | 420 | 850 | 180 | BB | 65 |
| AJ 150 RO | 15 | 24 – 28 | 400 | 420 | 850 | 190 | RO | 69 |
| AJ 200 BB | 20 | 26 – 28 | 200 | 210 | 720 | 145 | BB | 40 |
| AJ 200 RO | 20 | 28 – 30 | 300 | 310 | 840 | 190 | RO | 47 |
| AJ 250 BB | 25 | 30 | 250 | 260 | 680 | 160 | BB | 89 |
| AJ 250 RO | 25 | 30 | 300 | 310 | 750 | 160 | RO | 98 |
| AJ 320 BB | 32 | 44 | 335 | 335 | 1020 | 170 | BB | 126 |
| AJ 320 RO | 32 | 44 | 335 | 335 | 1020 | 170 | RO | 126 |
