Product description
^The opening scissor pulley for cable is made of steel. The sheave's cheeks are enveloping. The opening is achieved by rotating the flanges around the sheave axis.
The sheave is made of steel and mounted on a bronze ring. The finish of the product is zinc-plated and dichromated. The safety coefficient of the sheave is 4 minimum.
The lifting accessory is available in several versions with a WLL ranging from 1,600 to 5,000kg and a sheave of 100*25 to 200*30 mm.
Attention, the product is delivered without cable. For more information about our lifting accessory, please contact our customer service.
Product details

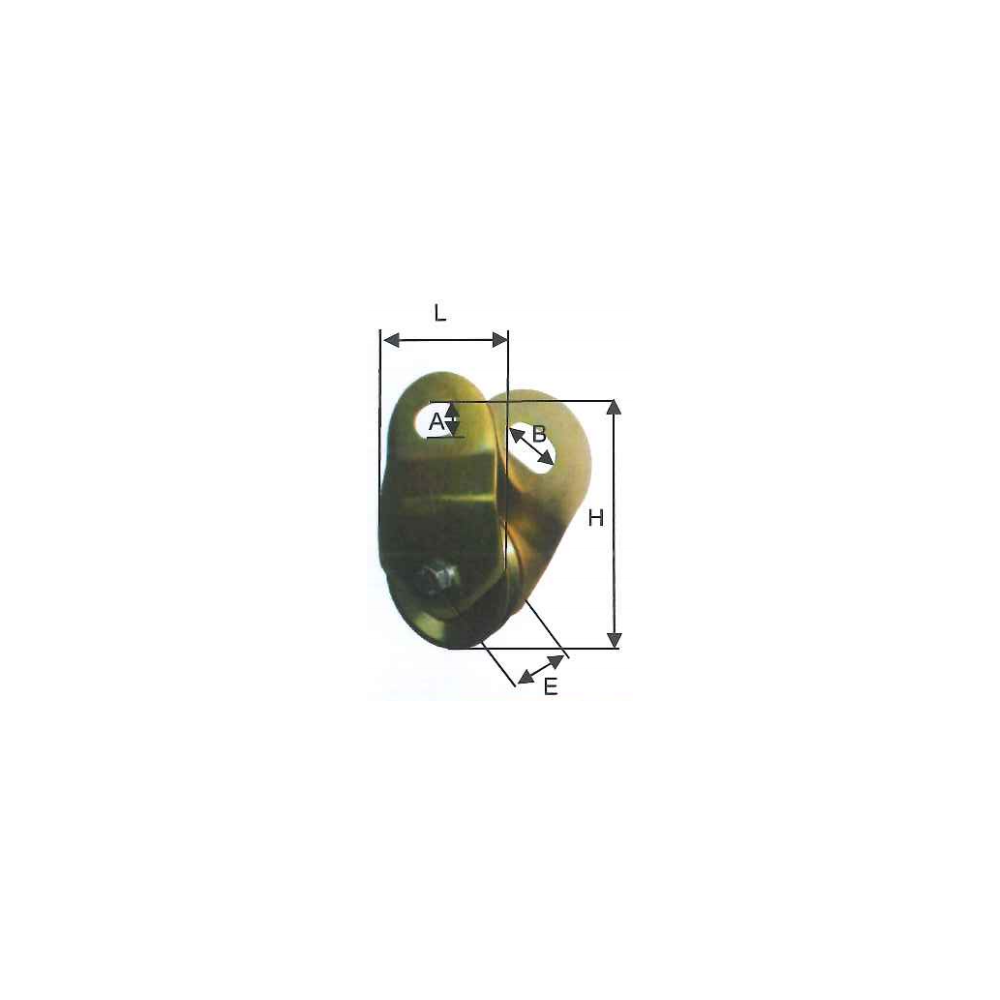

^| Référence | CMU kg | Ø câble mm | Ø réas mm | Poids kg | Epaisseur (E) mm | Hauteur (H) mm | Longueur (L) mm | A x B mm |
| PC 16 | 1600 | 8 – 10 | 100 x 25 | 2.2 | 55 | 185 | 105 | 33 x 48 |
| PC 32 | 3200 | 11 – 13 | 150 x 30 | 4 | 75 | 245 | 155 | 34 x 56 |
| PC 50 | 5000 | 14 – 17 | 200 x 30 | 8.6 | 95 | 315 | 205 | 50 x 88 |
The opening scissor pulley for cable is made of steel. The sheave's cheeks are enveloping. The opening is achieved by rotating the flanges around the sheave axis.
The sheave is made of steel and mounted on a bronze ring. The finish of the product is zinc-plated and dichromated. The safety coefficient of the sheave is 4 minimum.
The lifting accessory is available in several versions with a WLL ranging from 1,600 to 5,000kg and a sheave of 100*25 to 200*30 mm.
Attention, the product is delivered without cable. For more information about our lifting accessory, please contact our customer service.
