CLEVIS PULLEY FOR NYLON REA ROPE

    PCN 60
    €37.98 Tax excluded
    DIAMETRE EN MM
    CMU KG
    Quantity

    REQUEST A QUOTE
    close

    Request for quotation

    En cochant cette case, vous reconnaissez avoir lu, compris et accepté, notre politique de confidentialité*



    Product description

    ^

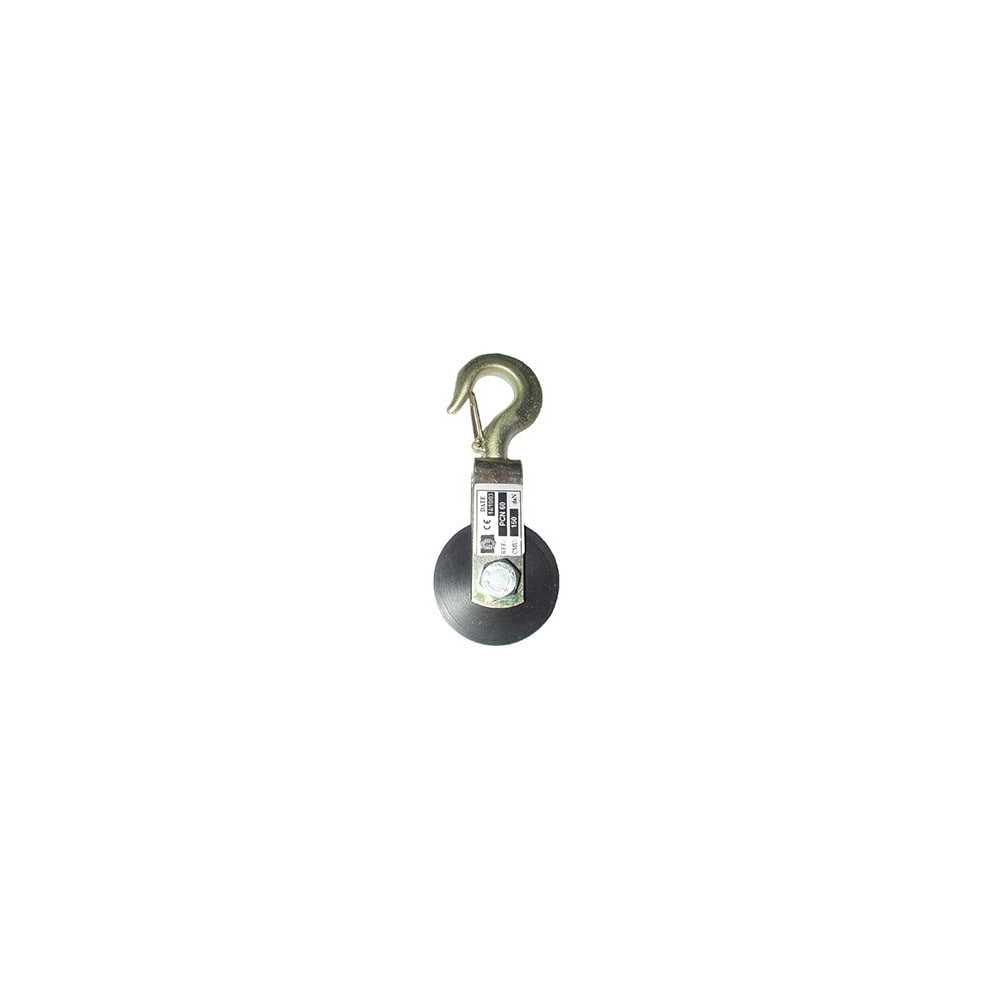

    The PCN60 Nylon Sheave Pulley is made of steel. The single pulley fits ropes from 12 to 30mm diameter. The finish is zinc-plated.

    The lifting accessory has an alloy steel swivel hook with a safety latch. Its safety coefficient is 4 times its CMU.

    The clevis block is available in several versions with a WLL ranging from 150 to 1 500kg and a sheave from 60*19 to 160*31 mm.

    Attention, the product is delivered without rope. For more information about our lifting accessory, please contact our customer service.

    The PCN60 Nylon Sheave Pulley is made of steel. The single pulley fits ropes from 12 to 30mm diameter. The finish is zinc-plated.

    The lifting accessory has an alloy steel swivel hook with a safety latch. Its safety coefficient is 4 times its CMU.

    The clevis block is available in several versions with a WLL ranging from 150 to 1 500kg and a sheave from 60*19 to 160*31 mm.

    Product details

    ^
    RéférenceCMU kgØ Corde mmØ Réas mmPoids kgEpaisseur
    (E) mm
    Hauteur
    (H) mm
    Longueur
    (L) mm
    PCN 6015012 – 1460 x 190.364514060
    PCN 8025016 – 1880 x 210.635018580
    PCN 9550020 – 2295 x 240.825820095
    PCN 145100024 – 26145 x 301..472270145
    PCN 160150028 – 30160 x 311.7874285160
