Product description

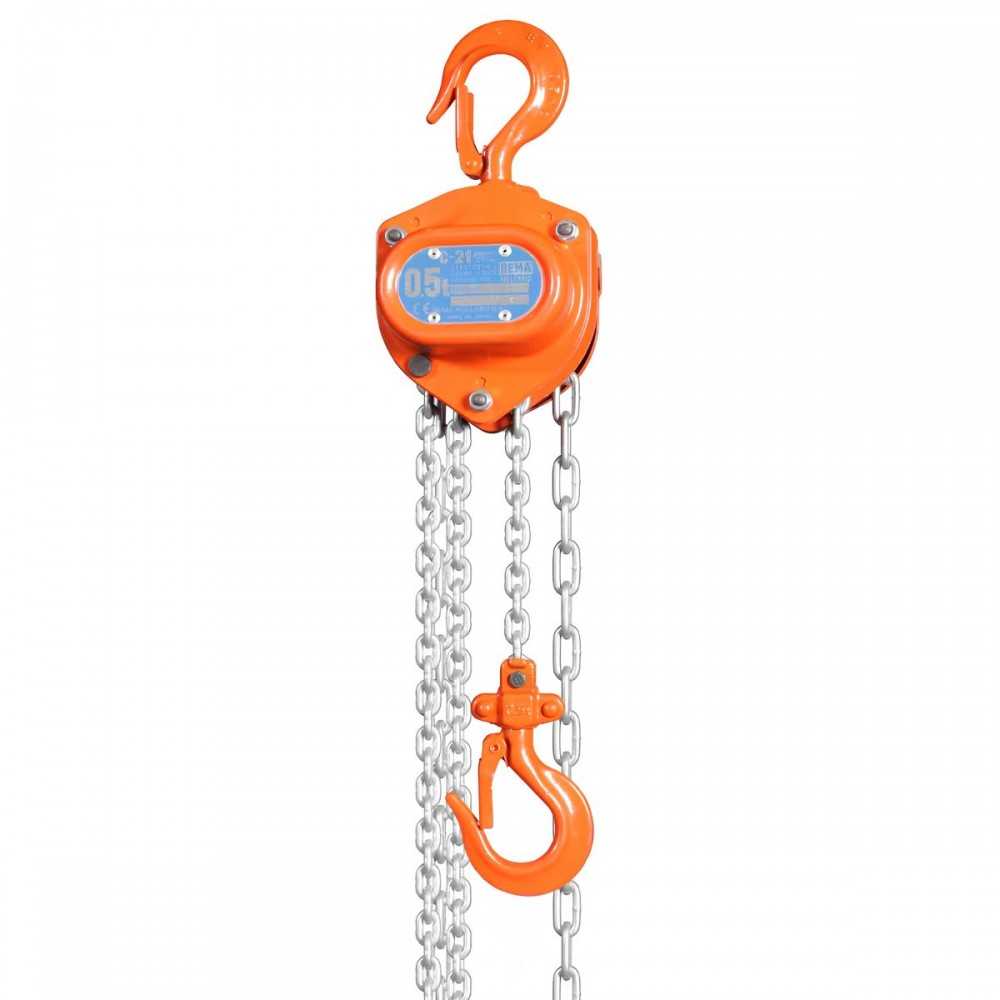

^C21 Elephant hoist. The lightest manual hoist on the market, using the latest technology and the best materials. Up to 50% lighter than other manual hoists. The C21 0.5T manual hoist with 3m lift weighs less than 6kg.
This manual hoist is characterised by its very small footprint, making it easy to transport and set up. It is equipped with grade 100 galvanised chains. These safety hooks and latches open progressively in case of overload.
The waterproof boards prevent the ingress of moisture and ensure a long service life. Using asbestos-free material, the brake of the C21 manual hoist has been designed to operate without seizing and to ensure a high level of safety during lifting.
The device is guaranteed for 12 months and is delivered with a certificate of conformity.
Product details
^| Référence | Longueur de la chaîne m | Capacité kg | Nombre de brins | Hauteur perdue mm | Effort sur chaîne manœuvre kg | Poids du palan kg | A mm | B mm | D mm | E mm | F mm | G mm | H mm | I mm | J mm |
| C21-05 | 3 | 500 | 1 | 275 | 26 | 5,9 / 3 mètres (1 kg / m sup) | 121 | 129 | 13 | 24 | 36 | 16 | 275 | 53 | 76 |
| C21-10 | 3 | 1000 | 1 | 310 | 32 | 8,9 / 3 mètres (1,3 kg / m sup) | 148 | 143 | 16 | 28 | 43 | 22 | 310 | 61 | 82 |
| C21-15 | 3 | 1500 | 1 | 340 | 33 | 11,5 / 3 mètres (1,5 kg / m sup) | 168 | 152 | 21 | 30 | 43 | 26 | 340 | 68 | 84 |
| C21-20 | 3 | 2000 | 1 | 380 | 36 | 16,5 / 3 mètres (1,9 kg / m sup) | 193 | 163 | 22 | 36 | 53 | 29 | 380 | 75 | 89 |
| C21-30 | 3 | 3000 | 2 | 480 | 39 | 20,0 / 3 mètres (2,5 kg / m sup) | 209 | 152 | 28 | 35 | 53 | 35 | 480 | 68 | 84 |
| C21-50 | 3 | 5000 | 3 | 555 | 39 | 35,0 / 3 mètres (4,4 kg / m sup) | 297 | 163 | 34 | 45 | 70 | 46 | 555 | 75 | 89 |
| H100-75 | 3 | 7500 | 3 | 750 | 52 | 67,0 / 3 mètres (6,3 kg / m sup) | 370 | 190 | 80 | 70 | 85 | 74 | 750 | 90 | 100 |
| H100-75 | 3 | 10000 | 4 | 775 | 52 | 78,0 / 3 mètres (8 kg / m sup) | 385 | 190 | 98 | 70 | 85 | 74 | 775 | 90 | 100 |
Advices
C21 Elephant hoist. The lightest manual hoist on the market, using the latest technology and the best materials. Up to 50% lighter than other manual hoists. The C21 0.5T manual hoist with 3m lift weighs less than 6kg.
This manual hoist is characterised by its very small footprint, making it easy to transport and set up. It is equipped with grade 100 galvanised chains. These safety hooks and latches open progressively in case of overload.
The waterproof boards prevent the ingress of moisture and ensure a long service life. Using asbestos-free material, the brake of the C21 manual hoist has been designed to operate without seizing and to ensure a high level of safety during lifting.
The device is guaranteed for 12 months and is delivered with a certificate of conformity.
