STAINLESS STEEL MANUAL CHAIN HOIST

Reference 9-12 VA-050-3M

REQUEST A QUOTE

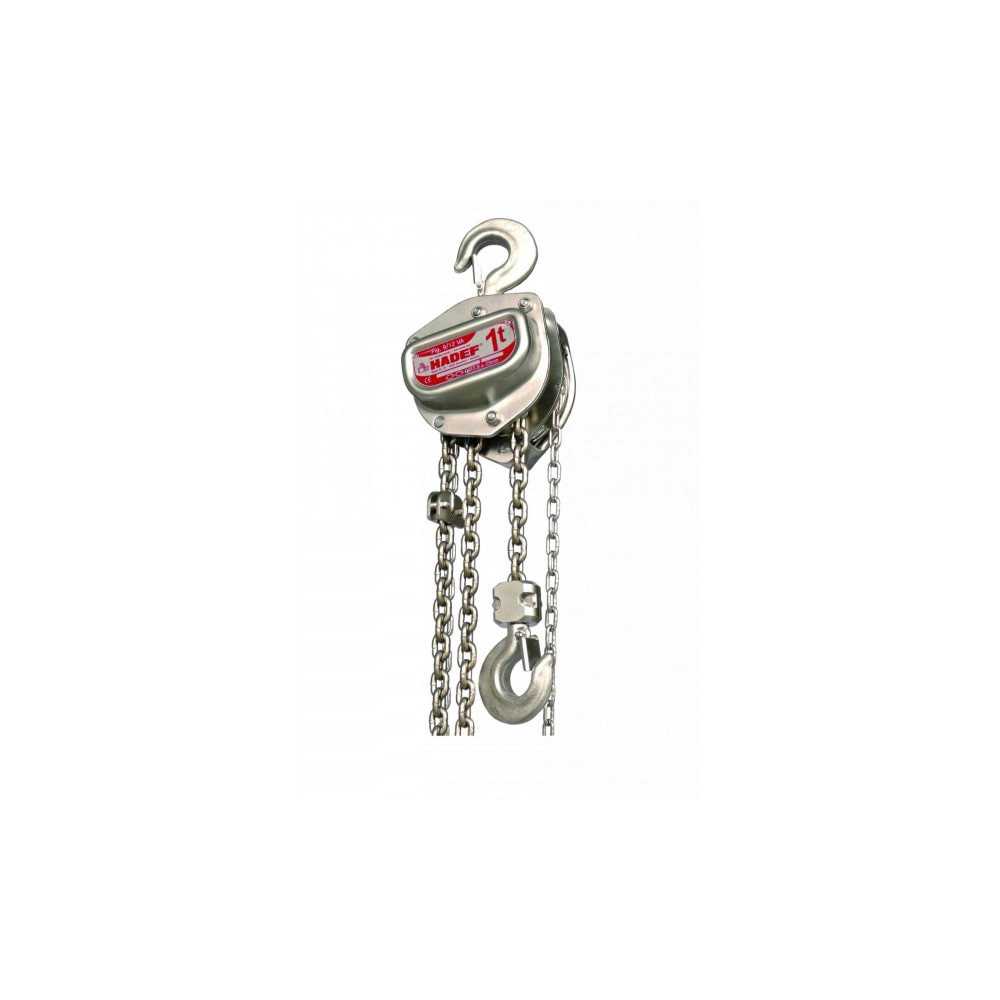

The 9/12 VA manual chain hoist is made entirely of stainless steel (body, top and bottom hooks). Its load and operating chains are also made of stainless steel.
The 9/12 VA manual chain hoist is durable thanks to its excellent corrosion resistance. The manual chain hoist has ideal protection for use in wet or clean room environments. The manual chain hoist is available in capacities from 0.5T to 3T.
It comes with a certificate of conformity to the European Machinery Directive.

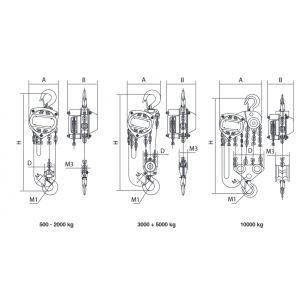

Référence	Capacité Kg	Chaîne de charge mm	Chaîne de manœuvre mm	Levage par déroulement de 30m de chaîne de manœuvre mm	Effort à la chaîne de manœuvre Ca./approx./env daN	Pour 3m de hauteur de suspension Ca. kg Approx. Kg Env.Kg	par mètre add. de levage ca. Kg Approx.Kg Env. Kg
9/12 VA-050	500/1	5 x 15	5x25	921	26	8	1.5
9/12 VA-100	1000/1	6 x 18	5x25	561	27	11	1.7
9/12 VA-150	1500/1	8 x 24	5x25	522	37	17	2.3
9/12 VA-200	2000 /1	8x24	5x25	423	41	17	2.3
9/12 VA-300	3000/2	8 x 24	5x25	261	39	23	3.7
9/12 VA-500	5000/2	10 x 30	5x25	168	40	37	5.3
9/12 VA-1000	10000/4	10 x 30	5x25	84	43	65	9.6
9/12 VA-2000	20000/2x4	10 x 30	5x25	84	88	140	19.7
