Product description

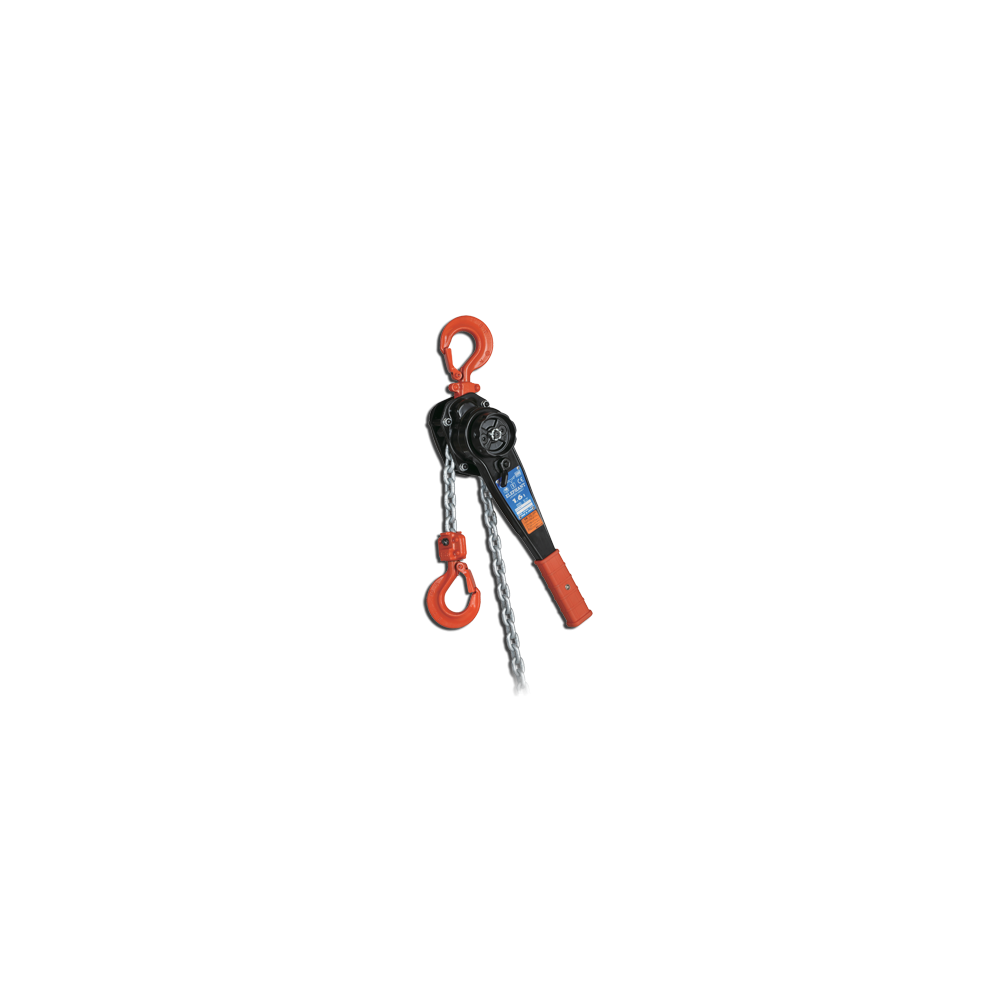

^YA manual chain hoist from ELEPHANT. The manual hoist is equipped with galvanised chains. The sealed housings prevent the ingress of moisture and foreign bodies and ensure a long service life of the manual hoist.
This manual hoist has exceptional braking with the strongest safety hooks and latches on the market, which open gradually without breaking. It prevents any fall of load by untimely disengagement.
Product details
^| Référence | Longueur de la chaîne m | Capacité kg | Nombre de brins | Diamètre de chaîne mm | Distance mini entre crocs mm | Poids du palan kg |
| EYA-025 | 1,5 | 500 | 1 | 4,3 | 239 | 3,2 / 1,5 m |
| EYA-080 | 1,5 | 800 | 1 | 5,6 | 290 | 5,9 / 1,5 m |
| EYA-100 | 1,5 | 1000 | 1 | 5,6 | 313 | 6,4 / 1,5 m |
| EYA-160 | 1,5 | 1600 | 1 | 7,1 | 353 | 9 / 1,5 m |
| EYA-310 | 1,5 | 3100 | 1 | 9 | 412 | 15,4 / 1,5 m |
| EYA-630 | 1,5 | 6300 | 2 | 9 | 564 | 26,7 / 1,5 m |
| EYA8900 | 3,0 | 9000 | 3 | 9 | 689 | 44,7/3,0 m |

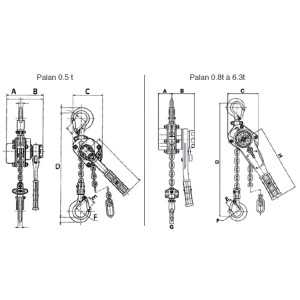

| Dimensions du palan | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm |
| EYA-025 | 43 | 69 | 92 | 239 | 24 | 35 | 13 | 177 |
| EYA-080 | 53 | 91 | 122 | 290 | 23 | 35 | 15 | 269 |
| EYA-100 | 53 | 91 | 122 | 313 | 28 | 43 | 16 | 269 |
| EYA-160 | 63 | 99 | 136 | 353 | 29 | 43 | 21 | 310 |
| EYA-310 | 82.5 | 104 | 180 | 412 | 36 | 53 | 28 | 310 |
| EYA-630 | 82.5 | 104 | 235 | 564 | 47 | 70 | 33 | 310 |
| EYA-900 | 82.5 | 104 | 300 | 689 | 73 | 85 | 47.5 | 310 |
Advices
YA manual chain hoist from ELEPHANT. The manual hoist is equipped with galvanised chains. The sealed housings prevent the ingress of moisture and foreign bodies and ensure a long service life of the manual hoist.
This manual hoist has exceptional braking with the strongest safety hooks and latches on the market, which open gradually without breaking. It prevents any fall of load by untimely disengagement.
