Product description

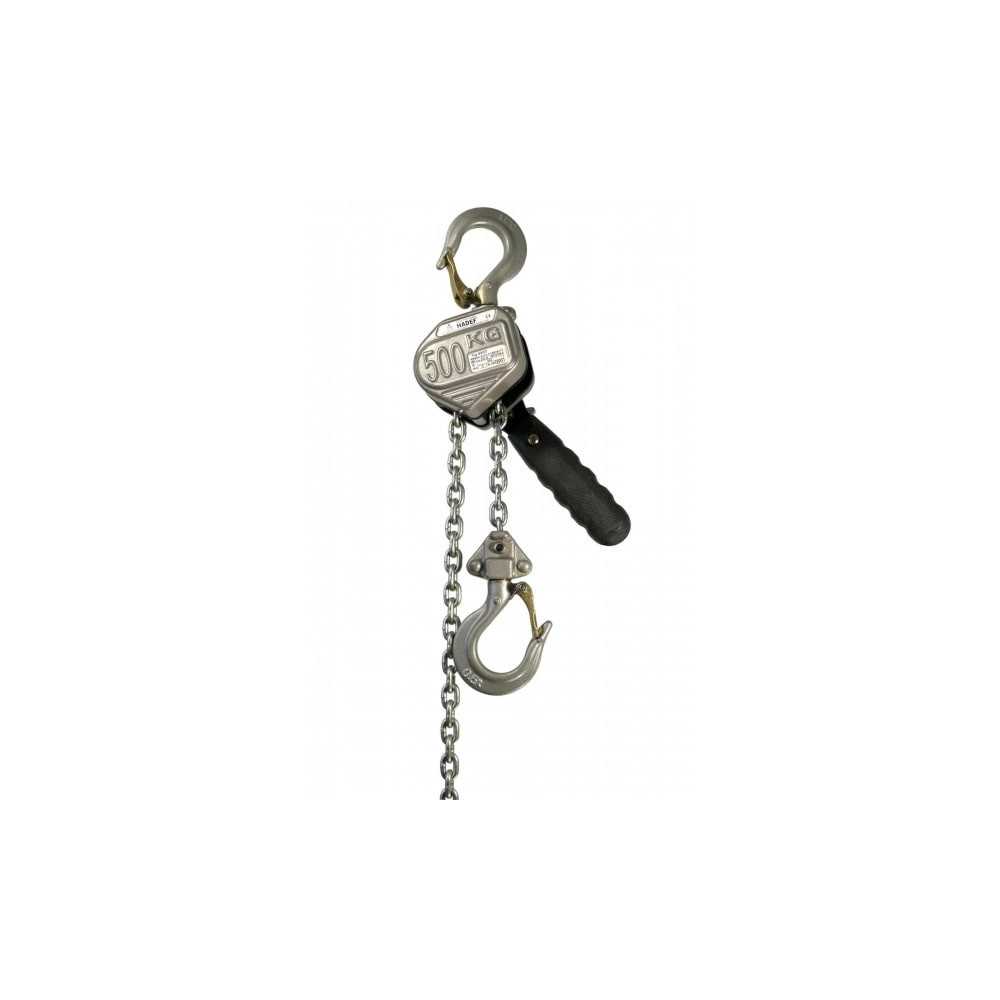

^The Mini Aluminium Lever Hand Hoist 53/07 A is a very compact hand hoist which guarantees an ultra light weight. This manual lever hoist is available in capacities from 0.25T to 1.5T.
The mini manual hoist has a very light weight and is easy to handle, requiring very little leverage due to the rolling operation. This hoist is mainly used in industry and maintenance. The manual hoist has an anti-corrosion treatment of the unpainted parts.
The zinc-plated load chain complies with EN817/7 and the zinc-plated operating chain complies with DIN 766.
Product details
^| Référence | Capacité Kg | Chaîne de charge mm | Hauteur perdue mm | Effort au levier daN | Poids pour une course standard kg | Poids par mètre de course sup. kg |
| 53-07 A-025 | 250/1 | 3.0 x 9.0 | 200 | 20 | 1.5 | 0.2 |
| 53-07 A-050 | 500/1 | 4.2 x 12.2 | 250 | 24 | 2.2 | 0.4 |
| 53-07 A-075 | 750/1 | 5.0 x 15.0 | 260 | 29 | 3.4 | 0.6 |
| 53-07 A-150 | 1500/1 | 7.1 x 20.1 | 330 | 32 | 5.9 | 1.1 |
| 53-07 A-300 | 3000/1 | 7.1 x 20.1 | 432 | 33 | 11 | 2.2 |

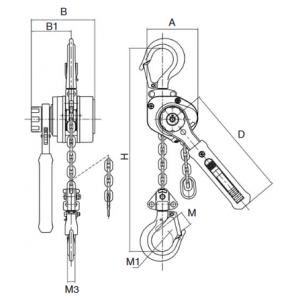

| Dimensions du palan | A mm | B mm | B1 mm | D mm | M mm | M1 mm | M3 mm | H mm |
| 53-07 A-025 | 76 | 87 | 55.5 | 140 | 21 | 32 | 11 | 200 |
| 53-07 A-050 | 81 | 100.5 | 62.5 | 180 | 24.5 | 34.5 | 12 | 250 |
| 53-07 A-075 | 92 | 105 | 64 | 1800 | 28.5 | 35.5 | 14 | 260 |
| 53-07 A-150 | 109 | 122 | 68.5 | 220 | 35 | 42.5 | 21.5 | 330 |
| 53-07 A-300 | 160 | 122 | 68.5 | 220 | 43 | 50 | 24.5 | 432 |
Advices
The Mini Aluminium Lever Hand Hoist 53/07 A is a very compact hand hoist which guarantees an ultra light weight. This manual lever hoist is available in capacities from 0.25T to 1.5T.
The mini manual hoist has a very light weight and is easy to handle, requiring very little leverage due to the rolling operation. This hoist is mainly used in industry and maintenance. The manual hoist has an anti-corrosion treatment of the unpainted parts.
The zinc-plated load chain complies with EN817/7 and the zinc-plated operating chain complies with DIN 766.
