Product description

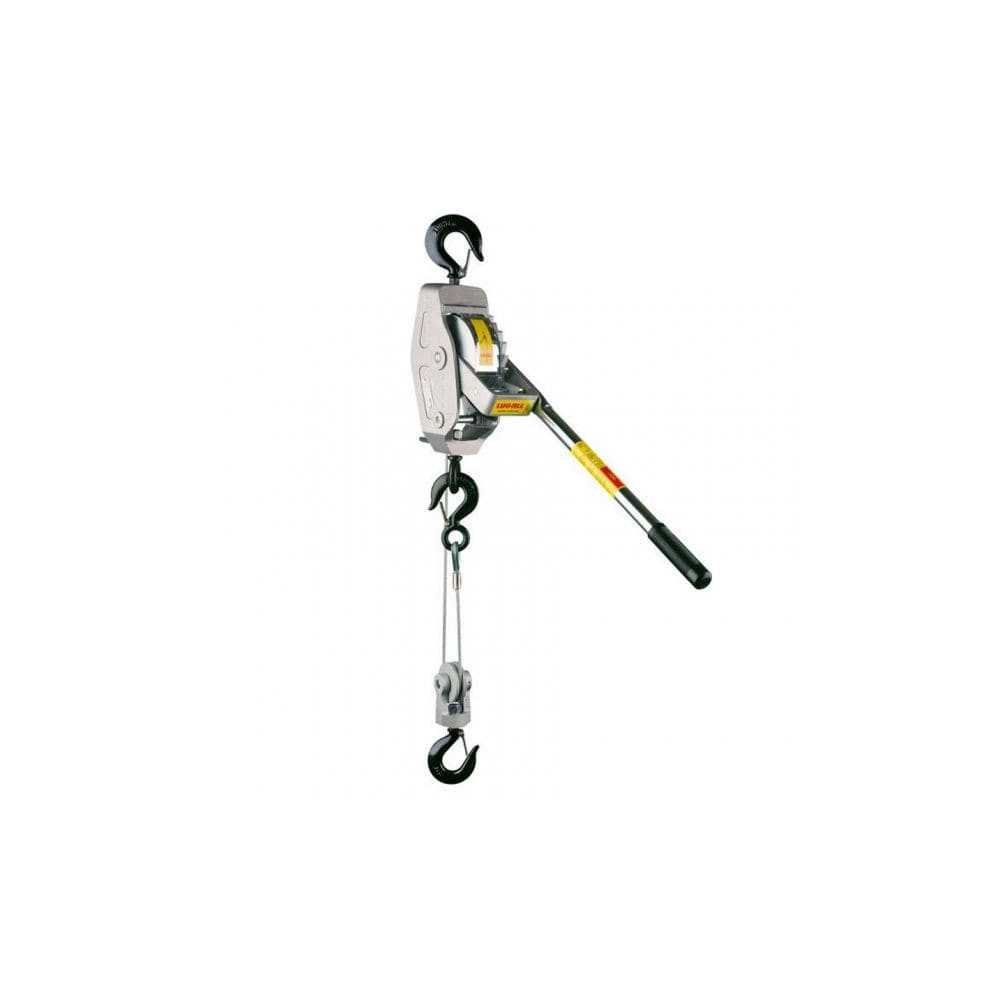

^The LSH manual wire rope hoist is designed for lifting, pulling or moving heavy loads. This manual wire rope hoist has an exceptional weight/capacity ratio as it weighs only 4kg for a 1000kg capacity and 6kg for the 1600kg capacity model.
The LSH manual hoist is available for capacities ranging from 0.25T to 0.8T. This manual hoist is equipped with a galvanised aviation grade steel wire rope which provides great flexibility when winding around a protected drum inside the frame. The body of the manual hoist is made of treated aluminium alloy to ensure lightness and better results.
The manual wire rope hoist ensures safety during lifting operations as it is equipped with a double locking pawl to prevent slipping. The two pawls on the hoist can only be released when the manual hoist is no longer under load.
Product details
^| Réference | UTILISATION SUR 1 BRIN | UTILISATION SUR 1 BRIN | UTILISATION SUR 1 BRIN | UTILISATION 2 BRIN | UTILISATION 2 BRIN | UTILISATION 2 BRIN | EFFORT KG | POIDS KG |
| CMU T | HAUTEUR DE LEVAGE M | HAUTEUR PERDUE MM | CMU T | HAUTEUR DE LEVAGE M | HAUTEUR PERDUE MM | |||
| 7S500LSH | 0.25 | 7.6 | 420 | 0.5 | 3.8 | 550 | 30 | 4 |
| 3S500LSH | 0.5 | 3.1 | 420 | 1 | 1.55 | 550 | 40 | 4 |
| 4S1000LSH | 0.5 | 4 | 420 | 1 | 2 | 550 | 40 | 4.2 |
| 6S1600LSH | 0.8 | 6.6 | 470 | 1.6 | 3.3 | 660 | 48 | 6.2 |
Advices
The LSH manual wire rope hoist is designed for lifting, pulling or moving heavy loads. This manual wire rope hoist has an exceptional weight/capacity ratio as it weighs only 4kg for a 1000kg capacity and 6kg for the 1600kg capacity model.
The LSH manual hoist is available for capacities ranging from 0.25T to 0.8T. This manual hoist is equipped with a galvanised aviation grade steel wire rope which provides great flexibility when winding around a protected drum inside the frame. The body of the manual hoist is made of treated aluminium alloy to ensure lightness and better results.
The manual wire rope hoist ensures safety during lifting operations as it is equipped with a double locking pawl to prevent slipping. The two pawls on the hoist can only be released when the manual hoist is no longer under load.
