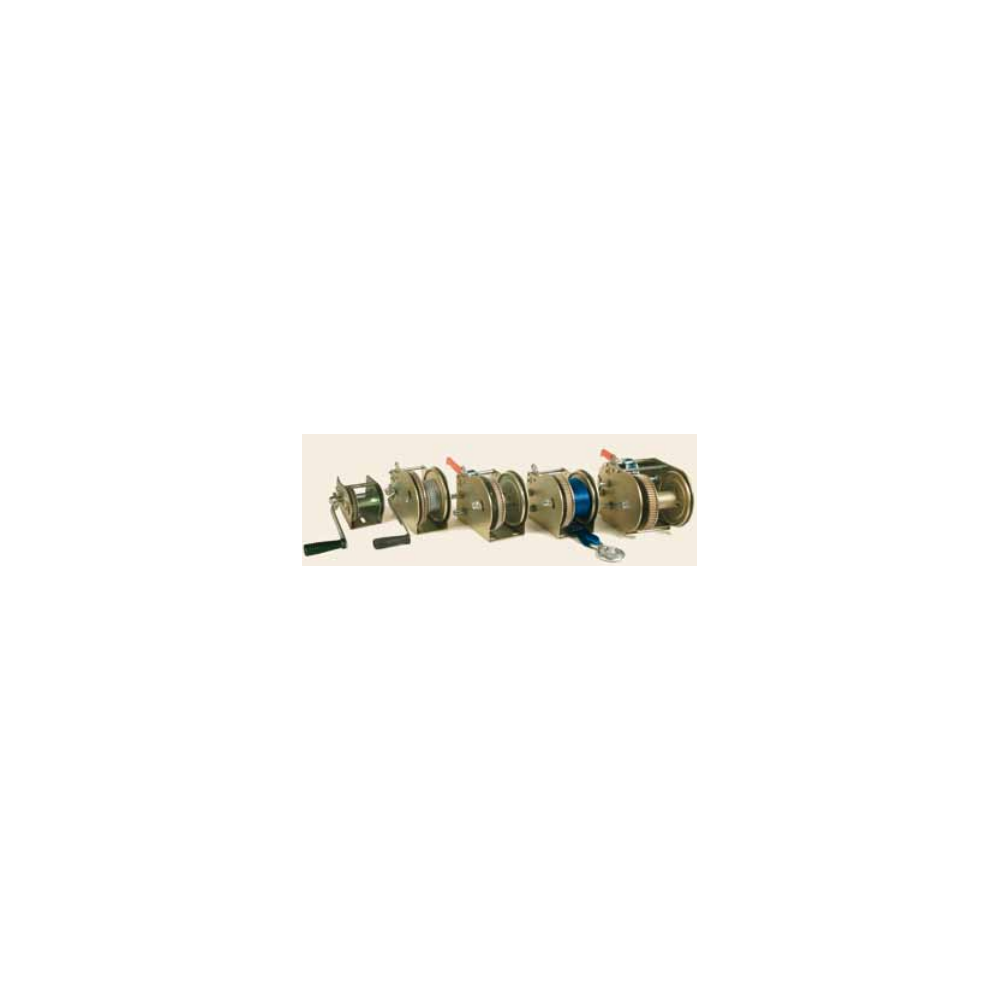

Product description
^The N manual winch is intended for strict hauling applications (0% slopes, independently secured load) and has a fixed crank handle.
The pawl of the winch is in 3 positions which allows it to easily disengage the spool (note that the 3N1 is only in 2 positions). The manual winch requires a minimum of 3 fixing points.
The winch is delivered bare, without cable or hook. For any request, please send a quotation request.
Product details
^| Référence | Capacité de halage kg | Ø bobine mm | Rapports | Rapports | Rapports | Poids du treuil kg | Frein ralentisseur | Câble et capacité d’enroulement 1 | Câble et capacité d’enroulement 1 | Câble et capacité d’enroulement 2 | Câble et capacité d’enroulement 2 |
| Vitesse 1 | Vitesse 2 | Vitesse 3 | Ø câble mm | Longueur max. m | Ø câble mm | Longueur max. m | |||||
| 3N1 | 470 | 25 | 1 / 2,57 | - | - | 2 | Non | 3 | 22 | 4 | 13 |
| 5N1 | 596 | 22 | 1 / 3,5 | - | - | 3 | Non | 5 | 17 | 6 | 10 |
| 7N1 | 723 | 28 | 1 / 4,85 | - | - | 4,6 | Non | 5 | 32 | 7 | 14 |
| 9N1 | 894 | 28 | 1 / 4,85 | - | - | 6 | Non | 6 | 21 | 7 | 16 |
| 16N2 | 1556 | 28 | 1 / 4,85 | 1 / 9,71 | - | 6,9 | Non | 7 | 14 | 8 | 10 |
| 16N2F | 1556 | 28 | 1 / 4,85 | 1 / 9,71 | - | 7,8 | Oui | 7 | 14 | 8 | 10 |
| 25N3F | 2741 | 50 | 1 / 4,25 | 1 / 10,92 | 1 / 21,85 | 13,1 | Oui | 8 | 14 | 9 | 13 |

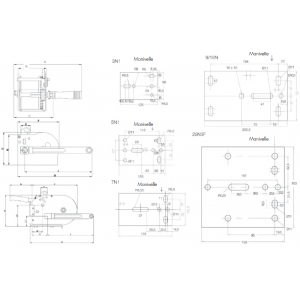

| Dimensions du treuil | A mm | B mm | C mm | E mm | F mm | G mm | H mm | I1 mm | I2 mm | J mm | L1 mm | L3 mm | M mm | N mm |
| 3N1 | 230 | 90 | 130 | 38 | 125 | 100 | 200 | 27 | - | 174 | 30 | - | 88 | - |
| 5N1 | 240 | 99 | 140 | 38 | 161 | 127 | 240 | 27 | - | 213 | 57 | - | 118 | - |
| 7N1 | 242 | 100 | 142 | 38 | 200 | 166 | 240 | 27 | - | 213 | 81 | - | 140 | - |
| 9N1 | 270 | 120 | 165 | 38 | 214 | 171 | 253 | 40 | - | 213 | 83 | - | 141 | - |
| 16N2 | 290 | 120 | 175 | 38 | 214 | 171 | 312 | 52 | 30 | 260 | 83 | - | 141 | - |
| 16N2F | 290 | 120 | 175 | 38 | 214 | 171 | 312 | 52 | 30 | 260 | 83 | - | 141 | 160 |
| 25N3F | 345 | 163 | 230 | 38 | 265 | 190 | 348 | 88 | 66 | 260 | 55 | 76 | 175 | 130 |
Advices
The N manual winch is intended for strict hauling applications (0% slopes, independently secured load) and has a fixed crank handle.
The pawl of the winch is in 3 positions which allows it to easily disengage the spool (note that the 3N1 is only in 2 positions). The manual winch requires a minimum of 3 fixing points.
The winch is delivered bare, without cable or hook. For any request, please send a quotation request.
