Product description

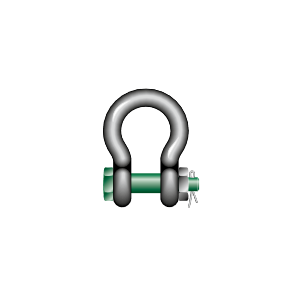

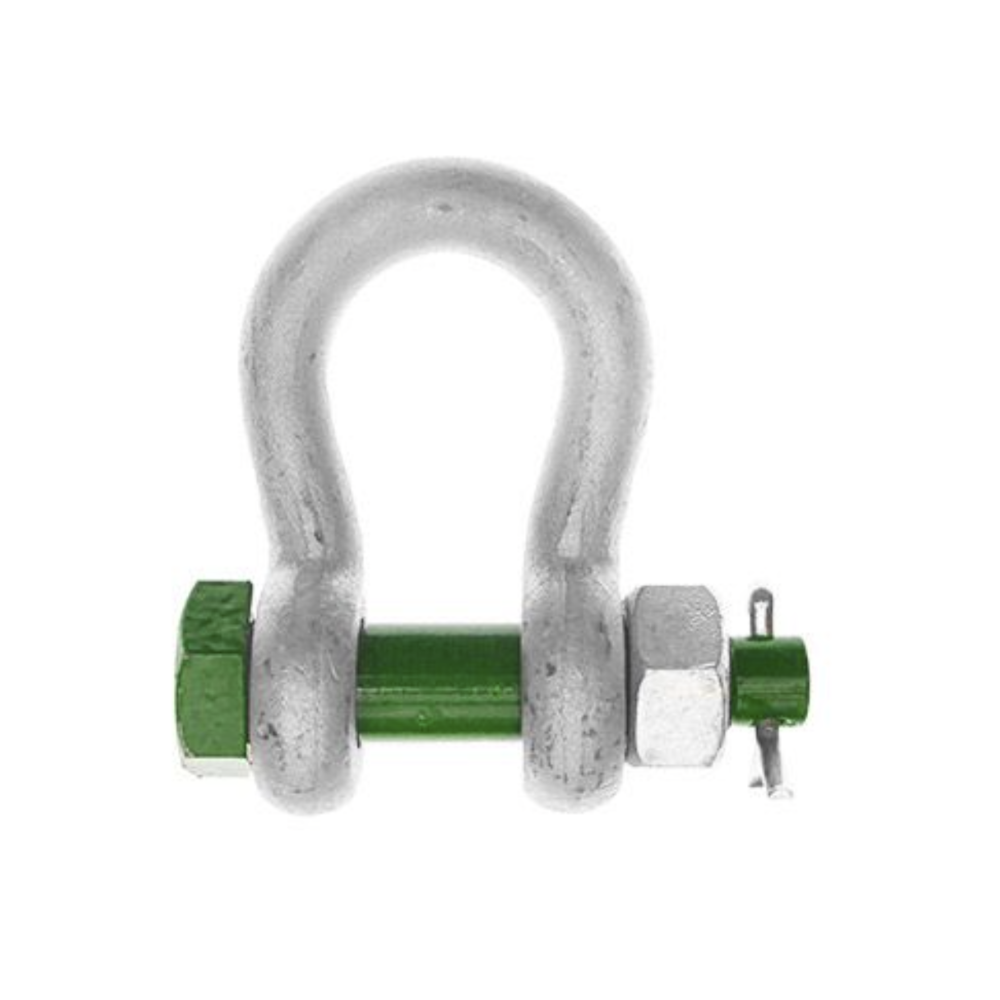

^Levagemanutention.com offers a bolt-on lyre shackle. It is made of high resistance steel (grade 60). Its pin is made of alloy steel.
The lyre shackle with bolt is only available in diameter 8 with a CMU ranging from 500 to 85000 kg.
For more information, please contact our customer service. They will answer all your questions!
Product details

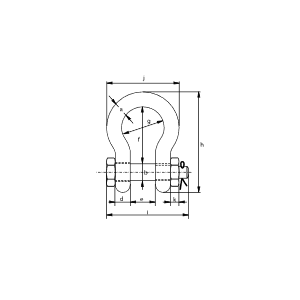

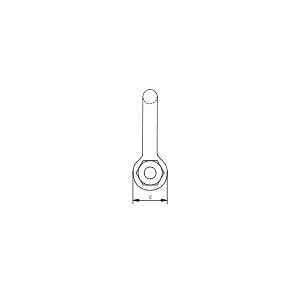

^| Référence | CMU | Ø corps | Ø axe | Ø œil | Largeur œil | Largeur intérieure | Longueur intérieure | Largeur couronne | Longueur | Longueur axe | Largeur | Epaisseur écrou | Poids |
| [t] | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | I [mm] | J [mm] | K [mm] | [kg] | |
| GPGHMB06 | 0.5 | 7 | 8 | 16.5 | 7 | 12 | 29 | 20 | 48.5 | 42 | 34 | 4 | 0.06 |
| GPGHMB08 | 0.75 | 9 | 10 | 20 | 9 | 13.5 | 32 | 22 | 56 | 50 | 40 | 5 | 0.11 |
| GPGHMB10 | 1 | 10 | 11 | 22.5 | 10 | 17 | 36.5 | 26 | 63.5 | 60 | 46 | 8 | 0.16 |
| GPGHMB11 | 1.5 | 11 | 13 | 26.5 | 11 | 19 | 43 | 29 | 74 | 67 | 51 | 11 | 0.22 |
| GPGHMB13 | 2 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.42 |
| GPGHMB16 | 3.25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.74 |
| GPGHMB19 | 4.75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.18 |
| GPGHMB22 | 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.77 |
| GPGHMB25 | 8.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.58 |
| GPGHMB28 | 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.66 |
| GPGHMB32 | 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.91 |
| GPGHMB35 | 13.5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.54 |
| GPGHMB38 | 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | 8.19 |
| GPGHMB45 | 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 23 | 14.22 |
| GPGHMB50 | 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 269 | 238 | 26 | 19.53 |
| GPGHMB57 | 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 301 | 274 | 29 | 28.33 |
| GPGHMB65 | 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 330 | 310 | 32 | 39.59 |
| GPGHMB75 | 85 | 75 | 83 | 162 | 73 | 127 | 329 | 190 | 527 | 380 | 340 | 39 | 62 |
