Product description

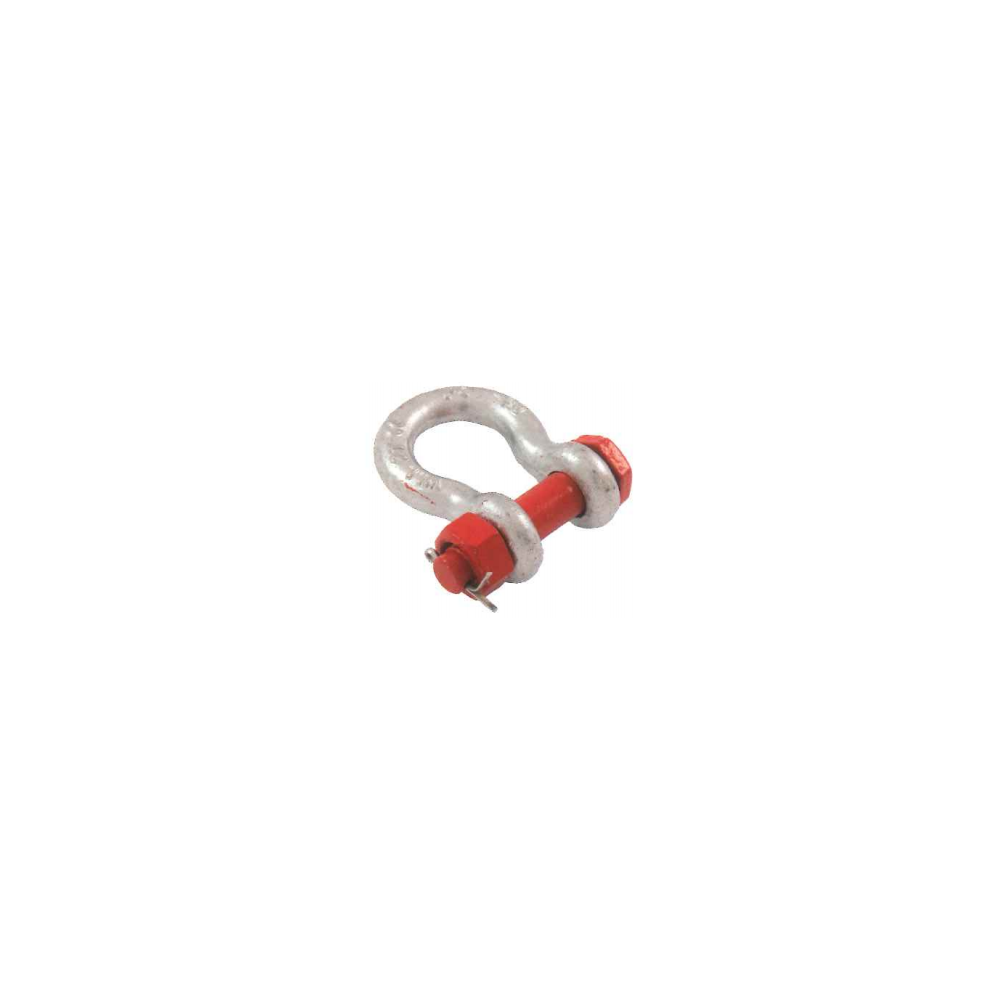

^Levagemanutention.com offers a bolted and pinned Lyre HR shackle. It is made of C45 steel. Its pin is made of alloy steel. The shackle body is finished in white zinc and the shackle pin is painted red.
The MHLG lyre shackle exists in several variations with diameters ranging from 11mm to 57mm and from 1t to 35t. The safety coefficient of the shackle is 5.
For more information, please contact our customer service. They will answer all your questions!
Product details

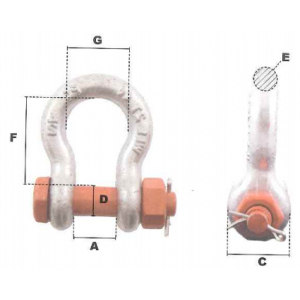

^| Référence | C.M.U | A | G | E | C | D | F | Poids |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MHLG111 | 1,00 | 17 | 26 | 9.5 | 24.5 | 11 | 37 | 0.175 |
| MHLG113 | 1,50 | 18 | 29 | 11.1 | 27 | 13 | 43 | 0.24 |
| MHLG116 | 2,00 | 21 | 33 | 12.7 | 32 | 16 | 48 | 0.38 |
| MHLG119 | 3,25 | 27 | 43 | 15.8 | 40 | 19 | 60 | 0.76 |
| MHLG122 | 4,75 | 32 | 51 | 19.1 | 48 | 22 | 71 | 1.24 |
| MHLG125 | 6,50 | 37 | 58 | 22.2 | 54 | 25 | 84 | 1.76 |
| MHLG128 | 8,50 | 43 | 68 | 25 | 60 | 28 | 95 | 2.62 |
| MHLG132 | 9,50 | 46 | 74 | 28 | 66 | 32 | 108 | 3.88 |
| MHLG135 | 12,00 | 51 | 82 | 32 | 76 | 35 | 119 | 5.46 |
| MHLG138 | 13,50 | 57 | 90 | 36 | 84 | 38 | 132 | 7.54 |
| MHLG142 | 17,00 | 60 | 98 | 38 | 92 | 42 | 146 | 8.98 |
| MHLG150 | 25,00 | 73 | 127 | 45 | 105 | 51 | 178 | 15 |
| MHLG157 | 35,00 | 82.5 | 146 | 51 | 127 | 57 | 197 | 19.54 |
Levagemanutention.com offers a bolted and pinned Lyre HR shackle. It is made of C45 steel. Its pin is made of alloy steel. The shackle body is finished in white zinc and the shackle pin is painted red.
The MHLG lyre shackle exists in several variations with diameters ranging from 11mm to 57mm and from 1t to 35t. The safety coefficient of the shackle is 5.
For more information, please contact our customer service. They will answer all your questions!
