Product description

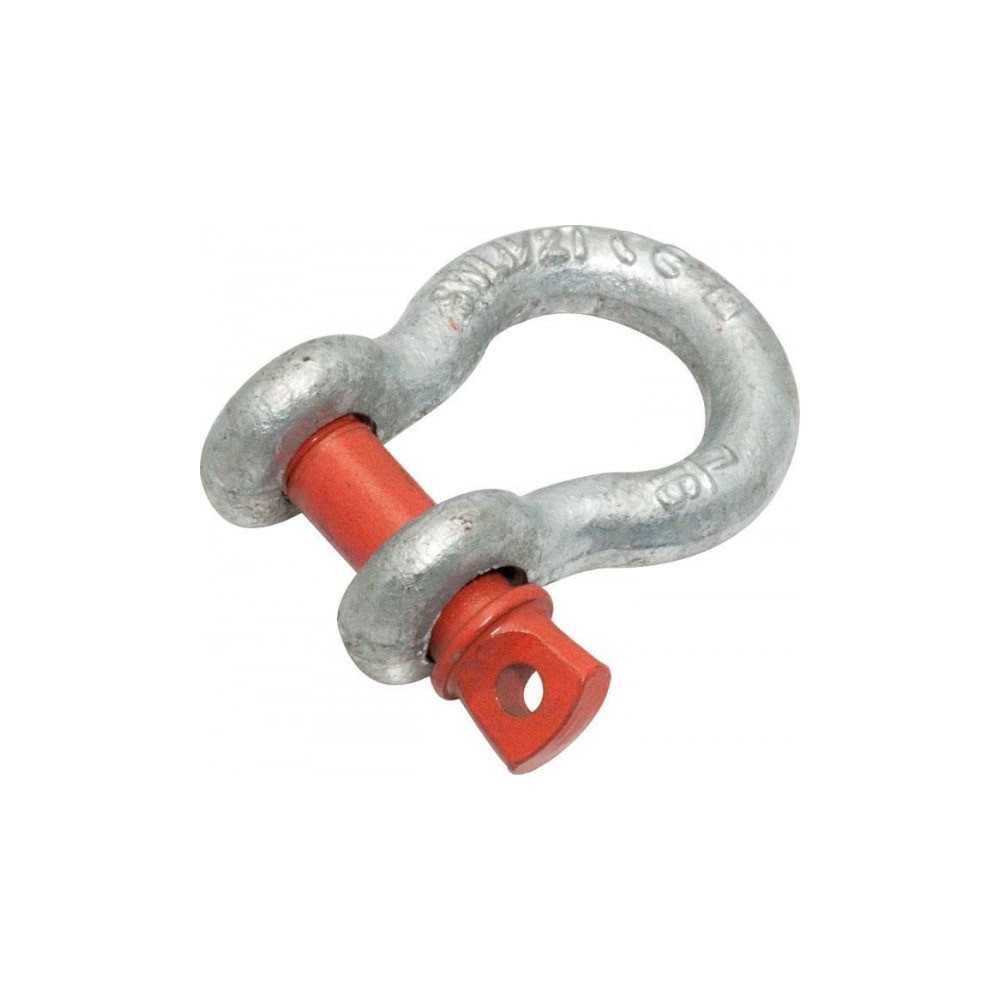

^The MHL high strength screw shackle has a body made of C45 steel and the pin made of alloy steel. The HR Lyre Shackle is available in diameters from 6 to 70 and from 0.33T to 55T.
The shackle body is finished in white zinc while the shackle pin is painted red.
The safety coefficient of the shackle is 5.
Product details

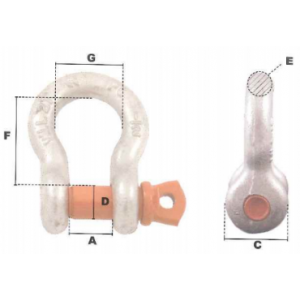

^| Référence | C.M.U | A | G | E | C | D | F | Poids |
| [t] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| MHL106 | 0,33 | 10 | 16 | 5 | 14 | 6 | 22 | 0.03 |
| MHL108 | 0,50 | 13 | 20 | 6.4 | 17 | 8 | 28.5 | 0.05 |
| MHL110 | 0,75 | 14 | 21 | 7.9 | 21 | 10 | 31 | 0.09 |
| MHL111 | 1,00 | 17 | 26 | 9.5 | 24.5 | 11 | 37 | 0.15 |
| MHL113 | 1,50 | 18 | 29 | 11.1 | 27 | 13 | 43 | 0.22 |
| MHL116 | 2,00 | 21 | 33 | 12.7 | 32 | 16 | 48 | 0.34 |
| MHL119 | 3,25 | 27 | 43 | 15.8 | 40 | 19 | 60 | 0.65 |
| MHL122 | 4,75 | 32 | 51 | 19.1 | 48 | 22 | 71 | 1.06 |
| MHL125 | 6,50 | 37 | 58 | 22.2 | 54 | 25 | 84 | 1.69 |
| MHL128 | 8,50 | 43 | 68 | 25 | 60 | 28 | 95 | 2.27 |
| MHL132 | 9,50 | 46 | 74 | 28 | 66 | 32 | 108 | 3.32 |
| MHL135 | 12,00 | 51 | 82 | 32 | 76 | 35 | 119 | 4.84 |
| MHL138 | 13,50 | 57 | 90 | 36 | 84 | 38 | 132 | 6.30 |
| MHL142 | 17,00 | 60 | 98 | 38 | 92 | 42 | 146 | 7.85 |
| MHL150 | 25,00 | 73 | 127 | 45 | 105 | 50 | 178 | 13.46 |
| MHL157 | 35,00 | 82.5 | 146 | 51 | 127 | 57 | 197 | 18.90 |
| MHL170 | 55,00 | 105 | 184 | 63.5 | 145 | 70 | 267 | 35.98 |
