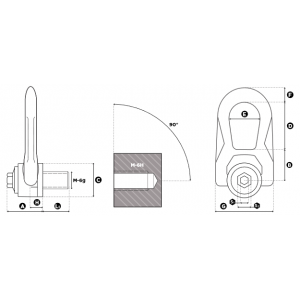

^The SS.DSR lifting eye is a double jointed lifting eye. The lifting ring is specially designed for lifting operations with load rotation. Its double articulation ensures a perfect alignment with the sling.
The SS.DSR lifting ring is made of a stainless steel ring that ensures maximum resistance to corrosion. The ring allows a 160° rotation. The SS.DSR lifting rings have a safety coefficient of 5.
The DSR ring is available in male and female versions (SS.FE.DSR)
Product details
^| Référence | CMU | Diamètre | L1 standard | Couple de serrage | S1 | S2 | A | B | C | D | E | F | G | H | Poids |
| [t]/[LBS] | [mm] | [N.m]/[FootLBS] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| SS.DSR M 6 | 0.3 t | M6 (x1) | 15 | 4 N.m | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR M 8 | 0.3 t | M8 (x1.25) | 16 | 6 N.m | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR M 10 | 0.3 t | M10 (x1.5) | 16 | 10 N.m | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR M 12 | 0.3 t | M12 (x1.75) | 19 | 15 N.m | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR M 14 | 0.9 t | M14 (x2) | 29 | 30 N.m | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 |
| SS.DSR M 16 | 0.9 t | M16 (x2) | 26 | 50 N.m | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 |
| SS.DSR M 18 | 1 t | M18 (x2.5) | 30 | 70 N.m | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 1 |
| SS.DSR M 20 | 1 t | M20 (x2.5) | 30 | 100 N.m | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 1 |
| SS.DSR M 22 | 2.5 t | M22 (x2.5) | 42 | 120 N.m | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.5 |
| SS.DSR M 24 | 2.6 t | M24 (x3) | 42 | 160 N.m | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.6 |
| SS.DSR M 27 | 2.7 t | M27 (x3) | 42 | 200 N.m | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.7 |
| SS.DSR M 30 | 2.8 t | M30 (x3.5) | 47 | 250 N.m | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.8 |
| SS.DSR U 025 | 500 LBS | UNC 1/4"- 20 | 13 | 3 F.L | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR U 516 | 650 LBS | UNC 5/16"- 18 | 15 | 5 F.L | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR U 038 | 1000 LBS | UNC 3/8" – 16 | 17 | 8 F.L | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR U 050 | 1850 LBS | UNC 1/2" – 13 | 21 | 12 F.L | 8 | 16 | 32 | 30 | 30 | 39 | 28 | 13 | 53 | 9.5 | 0.3 |
| SS.DSR U 058 | 3000 LBS | UNC 5/8" – 11 | 27 | 40 F.L | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 |
| SS.DSR U 075 | 3800 LBS | UNC 3/4" – 10 | 30 | 80 F.L | 8 | 20 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 |
| SS.DSR U 078 | 5100 LBS | UNC 7/8" – 9 | 33 | 100 F.L | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.5 |
| SS.DSR U 100 | 6000 LBS | UNC 1" – 8 | 36 | 125 F.L | 14 | 24 | 62 | 55 | 58 | 83 | 56 | 25 | 115 | 19 | 2.6 |
