Product description

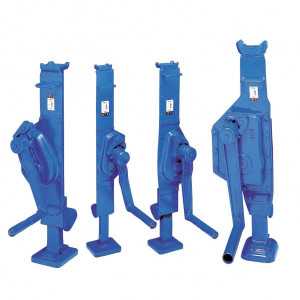

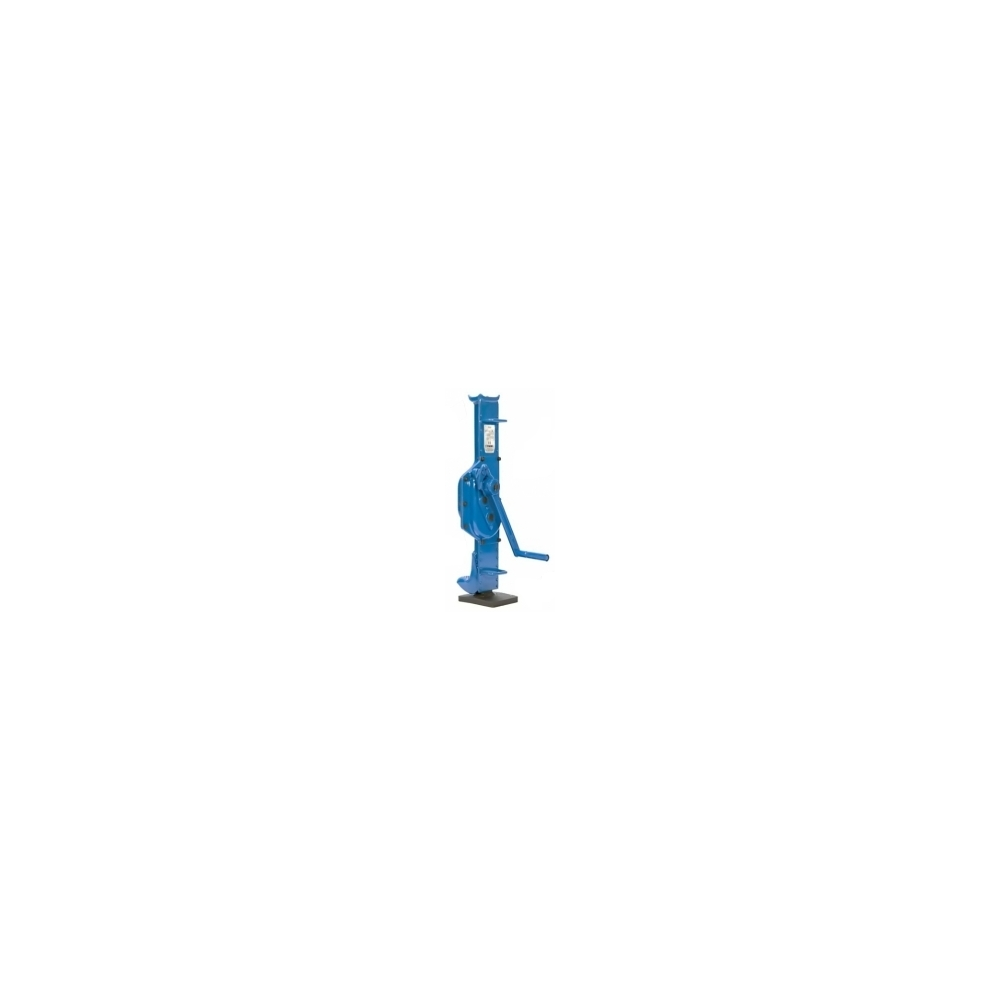

^The BT post jack is a lifting device. Thanks to its robust and compact construction, the jack allows to lift and support loads in full safety. The lifting is done by means of a crank with a folding handle, thus reducing the size of the jack during transport. It can be used both vertically and horizontally.
The lifting device is available in several versions with a GVW on the head and on the foot from 1 500 to 10 000 kg. The crank force is between 30 and 46 daN depending on the selected GVWR.
For more information on this lifting product, please consult our customer service.
Product details

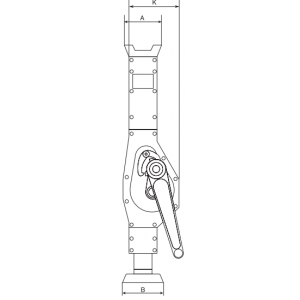

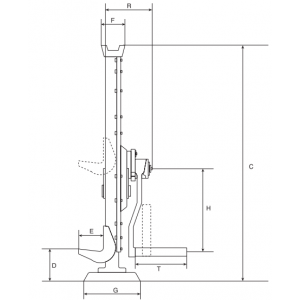

^| Référence | CMU (t) Sur tête | CMU (t) Sur patte | Course de levage mm | Effort sur manivelle daN | Poids kg | A mm | B mm | C mini mm | D mini mm | E mm | F mm | G mm | H mm | K mm | R mm | T mm |
| BT 1.5 | 1,5 | 1,5 | 300 | 30 | 18 | 81 | 100 | 600 | 70 | 55 | 46 | 110 | 225 | 147 | 119 | 113 |
| BT 3 | 3 | 3 | 355 | 35 | 20 | 83 | 130 | 735 | 70 | 60 | 45 | 138 | 249 | 168 | 129 | 130 |
| BT 5 | 5 | 5 | 345 | 40 | 28 | 108 | 140 | 735 | 80 | 71 | 68 | 170 | 249 | 190 | 149 | 130 |
| BT 10 | 10 | 10 | 390 | 58 | 46 | 124 | 140 | 800 | 100 | 86 | 76 | 170 | 300 | 250 | 168 | 239 |
