Product description

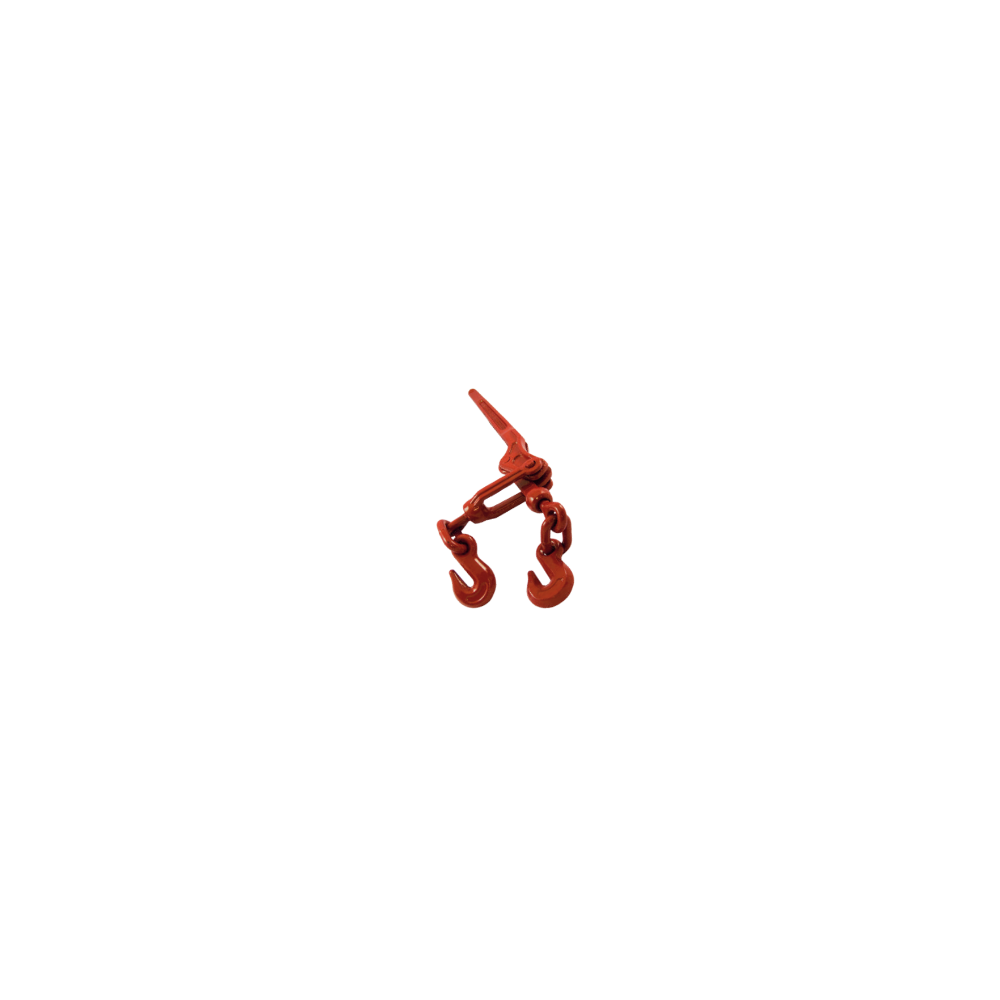

^The TCQA asymmetrical lashing tensioner for chain (high resistance) ensures a solid lashing for heavy loads, industry, transport or construction sites.
The lashing tensioners cannot be used for lifting operations.
The TCQA turnbuckle is made of C45 material for the cage and the hook in 20CrMnTi. The lashing tensioner is finished in red. The breaking load of the tensioner is 8,04 daN to 12,6 daN depending on the chosen tensioner. A marking with the diameter of the useful chain is present on the tensioner.
Product details

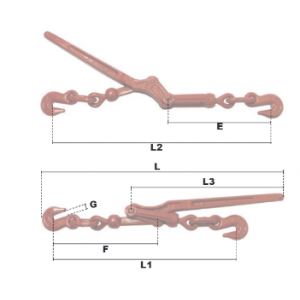

^| Référence | Capacité d’arrimage (daN) | Charge de rupture (daN) | Ø (mm) | E (mm) | F (mm) | G (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Poids (kg) |
| TCQA0810 | 4,000 | 8,040 | 8 | 287 | 285 | 12,7 | 598 | 503 | 607 | 328 | 353,00 |
| TCQA1013 | 6,300 | 12,600 | 10 | 325 | 324 | 16,5 | 758 | 565 | 695 | 419 | 559,00 |
The TCQA asymmetrical lashing tensioner for chain (high resistance) ensures a solid lashing for heavy loads, industry, transport or construction sites.
The lashing tensioners cannot be used for lifting operations.
The TCQA turnbuckle is made of C45 material for the cage and the hook in 20CrMnTi. The lashing tensioner is finished in red. The breaking load of the tensioner is 8,04 daN to 12,6 daN depending on the chosen tensioner. A marking with the diameter of the useful chain is present on the tensioner.
