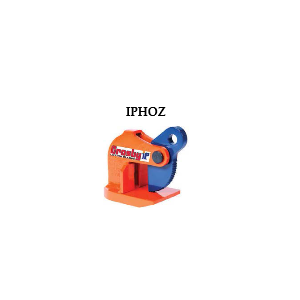

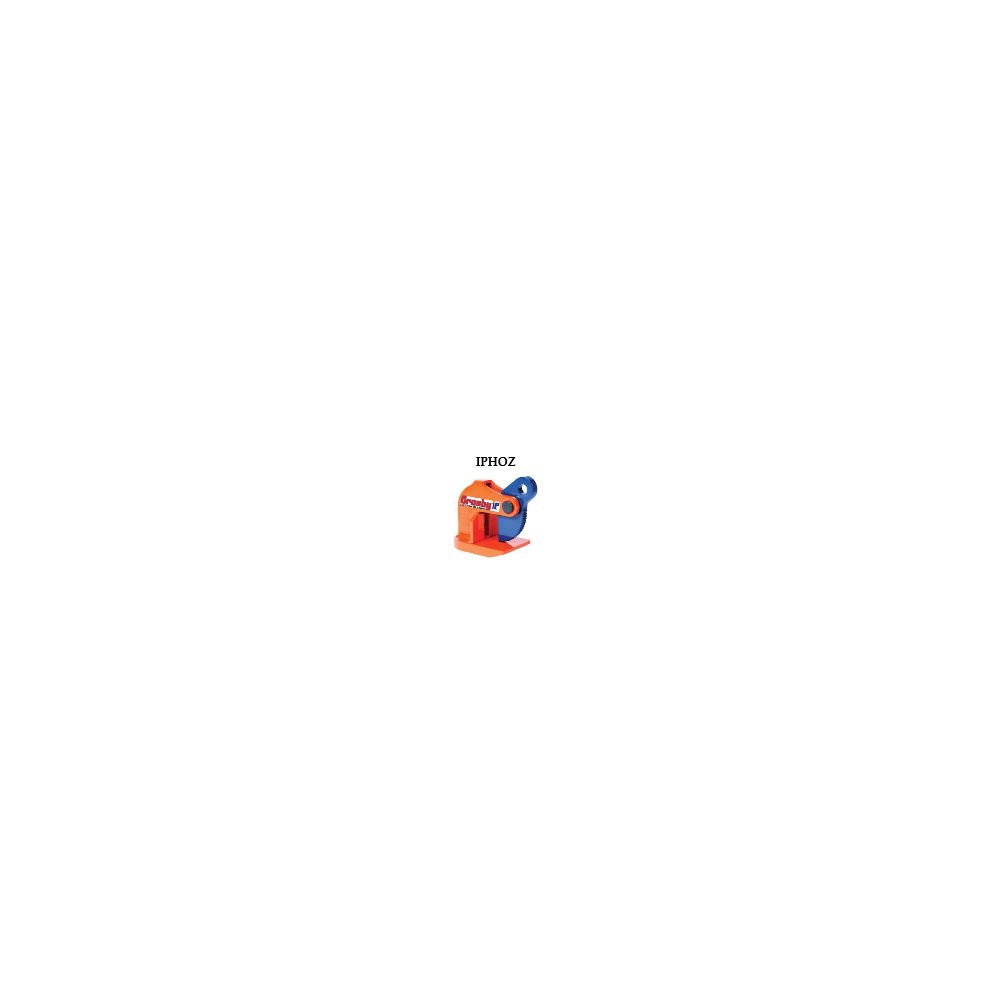

This lifting and horizontal plate clamp with a welded alloy steel body, part number IPHOZ, is extremely strong. Ideal for horizontal plates or sheet metal spans, this toggle lever clamp ensures that the load is clamped. In addition, its size makes it very compact. Finally, the clamping of this clamp is done by lifting.
For those who wish it, it is possible to have this pliers in forged steel. This product will meet all your expectations, this pliers is also composed of the RFID system, that is to say a chip that ensures its traceability.
You will find it in several variations with a CMU ranging from 750 to 12 000 kg.

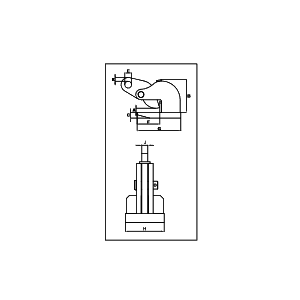

Référence | CMU t | Poids kg | Mâchoire A mm | B mm | C mm | E mm | F mm | G mm | H mm | J mm | K mm |
IPHOZ-2705401 | 0.75 | 3.0 | 0-30 | 94 | 16 | 16 | 70 | 118 | 81 | 12 | 12 |
IPHOZ-2705402 | 1.5 | 5.5 | 0-45 | 133 | 16 | 22 | 125 | 192 | 100 | 16 | 12 |
IPHOZ-2705403 | 3 | 8.0 | 0-45 | 137 | 20 | 26 | 125 | 200 | 120 | 20 | 10 |
IPHOZ-2705404 | 4.5 | 8.5 | 0-45 | 138 | 25 | 30 | 126 | 220 | 120 | 20 | 10 |
IPHOZ-27054015 | 6 | 15.5 | 0-60 | 171 | 30 | 36 | 135 | 235 | 130 | 20 | 20 |
IPHOZ-2705406 | 9 | 20.5 | 0-60 | 211 | 30 | 43 | 166 | 276 | 160 | 25 | 20 |
IPHOZ-2705407 | 12 | 38.0 | 0-60 | 217 | 40 | 47 | 168 | 294 | 190 | 25 | 19 |
IPHOZ-27054018 | 15 | 38.0 | 0-60 | 220 | 40 | 47 | 183 | 317 | 250 | 25 | 22 |
