Product description
^NEW PRODUCT - HADEF innovation for your safety!

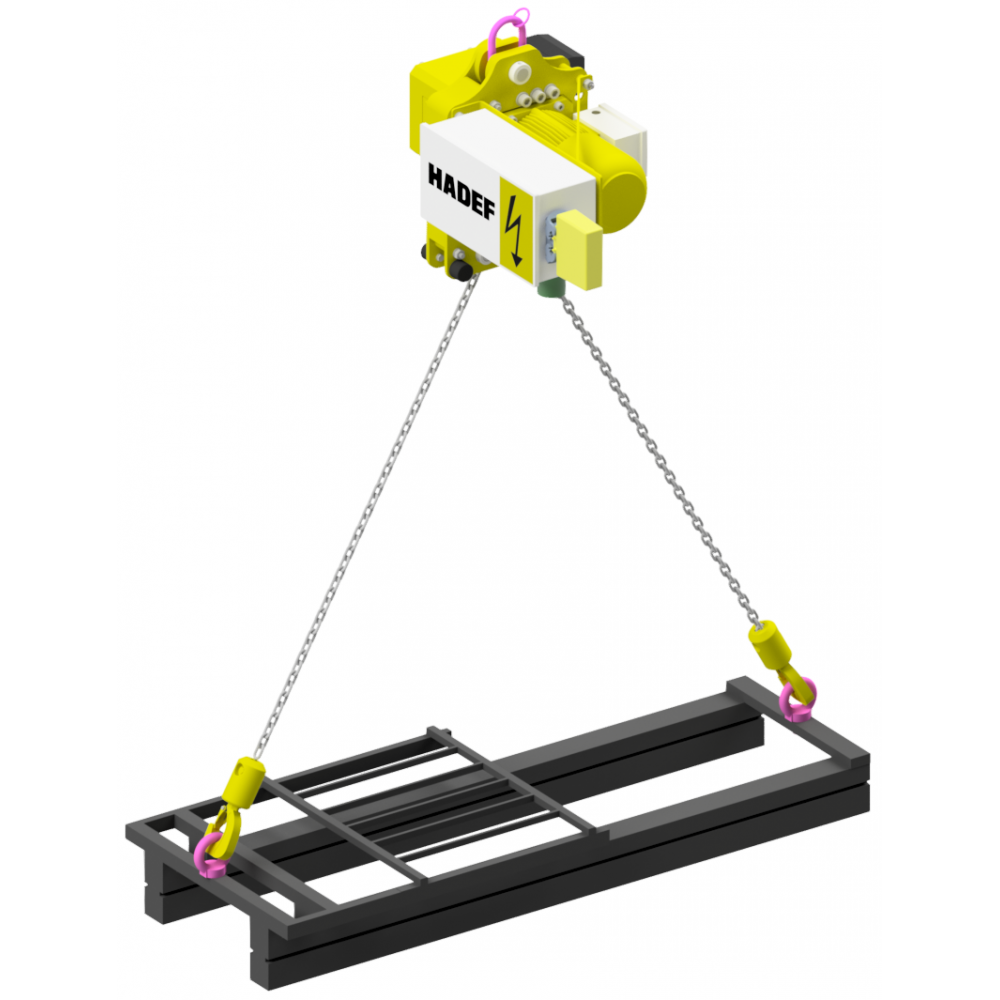

Discover the new load compensation device and through-chain device by HADEF. The device has a connector for connection to the mains and a control box. You will also find a 48V low voltage control, a phase reversal relay, a thermal sensor for the lifting motor and an hour meter. There is also a friction and electric load limiter (AK 4-8), an electric load limiter (AT 9-10) and a stroke limiter for high and low stops. This lifting device is painted with HADEF C2 paint, colour RAL 1006, and has an IP55 and optional IP66 protection against dust and strong water jets.
Options on request : other voltages, radio remote control, frequency converter, special paintwork, stainless steel control cabinet, transport trolley
Product details

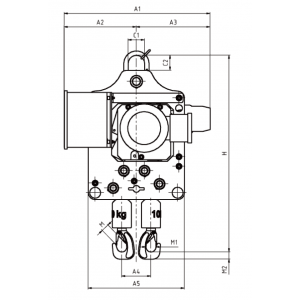

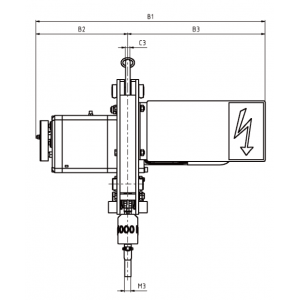

^Type | Capacity | Capacity | Suspension ring | Adjustment speed | Chain dimension | Available length per chain fall | Total chain length | Weight | Weigth +1m lift | ||
0° | max. 45° | 0° | max 45° | ||||||||
[kg] | [kg] | [kg] | [kg] | [mm] | [m/min] | [mm] | [m] | [m] | [kg] | [kg] | |
AT 4 | 500 (250/250) | 500 (250/250) | 500 (10/490) | 500 (150/350) | 13x60x110 | 9,4/2,6 | 5x15 | 2 | 4,4 | 105 | 1,2 |
AT 6 | 1000 (500/500) | 1000 (500/500) | 1000 (10/990) | 1000 (300/700) | 16x60x110 | 8,0/2,0 | 7x21 | 2 | 4,5 | 205 | 2,2 |
AT 8 | 2000 (1000/1000) | 2000 (1000/1000) | 2000 (10/1990) | 2000 (600/400) | 18x75x135 | 10,0/2,5 | 11,3x31 | 3 | 6,9 | 330 | 5,8 |
AT 9 | 5000 (2500/2500) | 5000 (2500/2500) | 5000 (10/4990) | 5000 (1500/3500) | 22x90x160 | 5,4/1,35 | 16x45 | 3 | 7,3 | 425 | 11,4 |
AT 10 | 10000 (5000/5000) | 10000 (5000/5000) | 10000 (10/9990) | 10000 (3000/7000) | 36x140x260 | 5,8/1,4 | 23,5x66 | 5 | 11,8 | 1020 | 24,4 |
