Product description

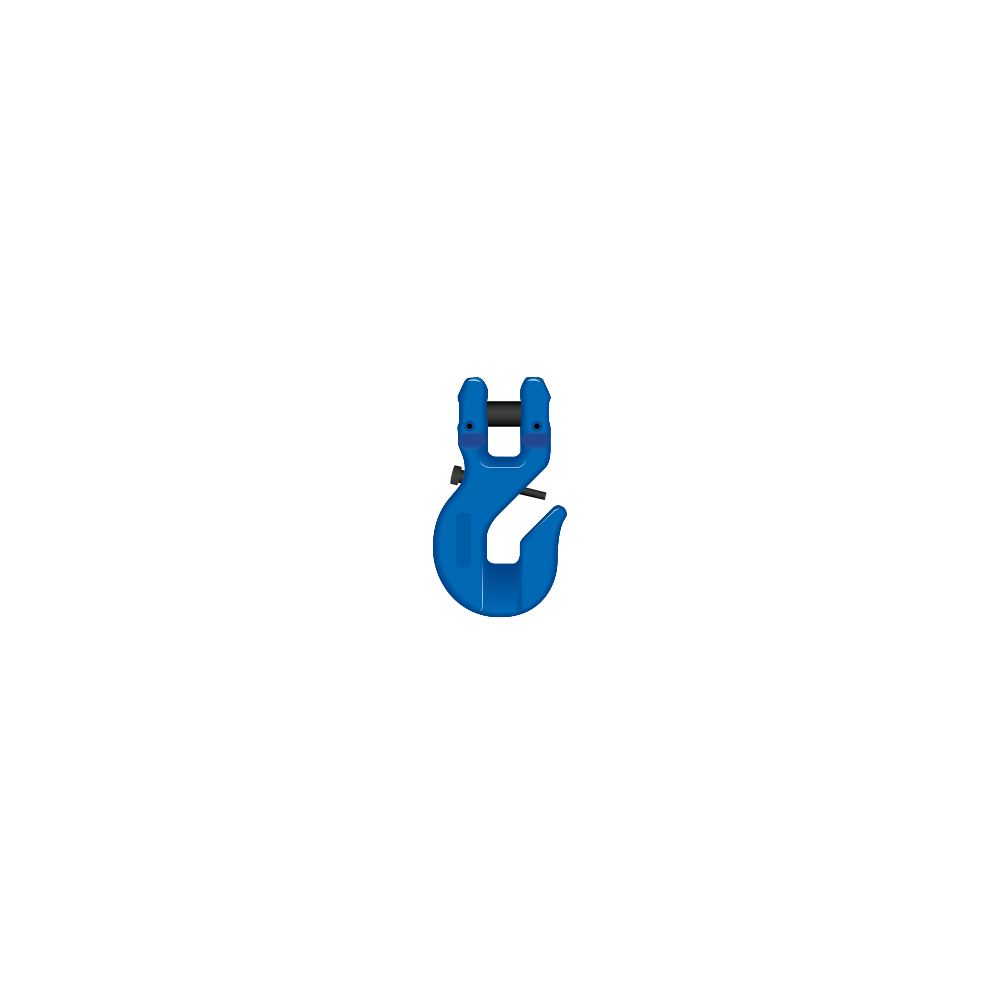

^Levagemanutention.com offers you a Tycan Green Pin cl100 grade 100 shortening hook made of alloy steel, hardened and tempered.
Its safety coefficient is 4 times its CMU and 2 times its lashing capacity.
It is compatible as a shortening hook for lifting and connect to the ratchet tensioner for lashing.
This product exists in several possible variations with a CMU ranging from 2 600 to 6 800 kg. Moreover, the finish is in blue.
Product details

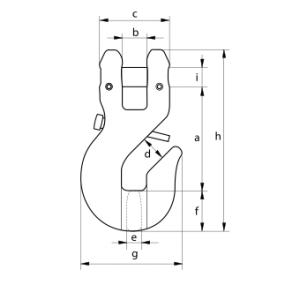

^| Référence | Pour chaîne diamètre mm | CMU en T | Capacité d’arrimage en t | Longueur En mm | Largeur en mm | Largeur extérieure En mm | Ouverture en mm | Épaisseur en mm | Largeur en mm | Largeur extérieure en mm | Longueur extérieure en mm | Dia axe en mm | Poids unitaire en kg |
| A | B | C | D | E | F | G | H | I | |||||
| GPUCRCT15 | 11x15 | 2,6 | 87 | 17 | 44 | 15 | 13 | 23 | 65 | 109 | 13 | 0,55 | |
| GPUCRCT20 | 11x20 | 4 | 110 | 22 | 57 | 20 | 16 | 29 | 85 | 138 | 16 | 1,03 | |
| GPUCRCT25 | 15x25 | 5 | 10 | 102 | 24 | 68 | 25 | 16 | 40 | 99 | 178 | 20 | 2 |
| GPUCRCT30 | 13x30 | 6,8 | 140 | 32 | 74 | 30 | 20 | 40 | 102 | 177 | 20 | 1,92 |
Advices
Levagemanutention.com offers you a Tycan Green Pin cl100 grade 100 shortening hook made of alloy steel, hardened and tempered.
Its safety coefficient is 4 times its CMU and 2 times its lashing capacity.
It is compatible as a shortening hook for lifting and connect to the ratchet tensioner for lashing.
This product exists in several possible variations with a CMU ranging from 2 600 to 6 800 kg. Moreover, the finish is in blue.
