Product description

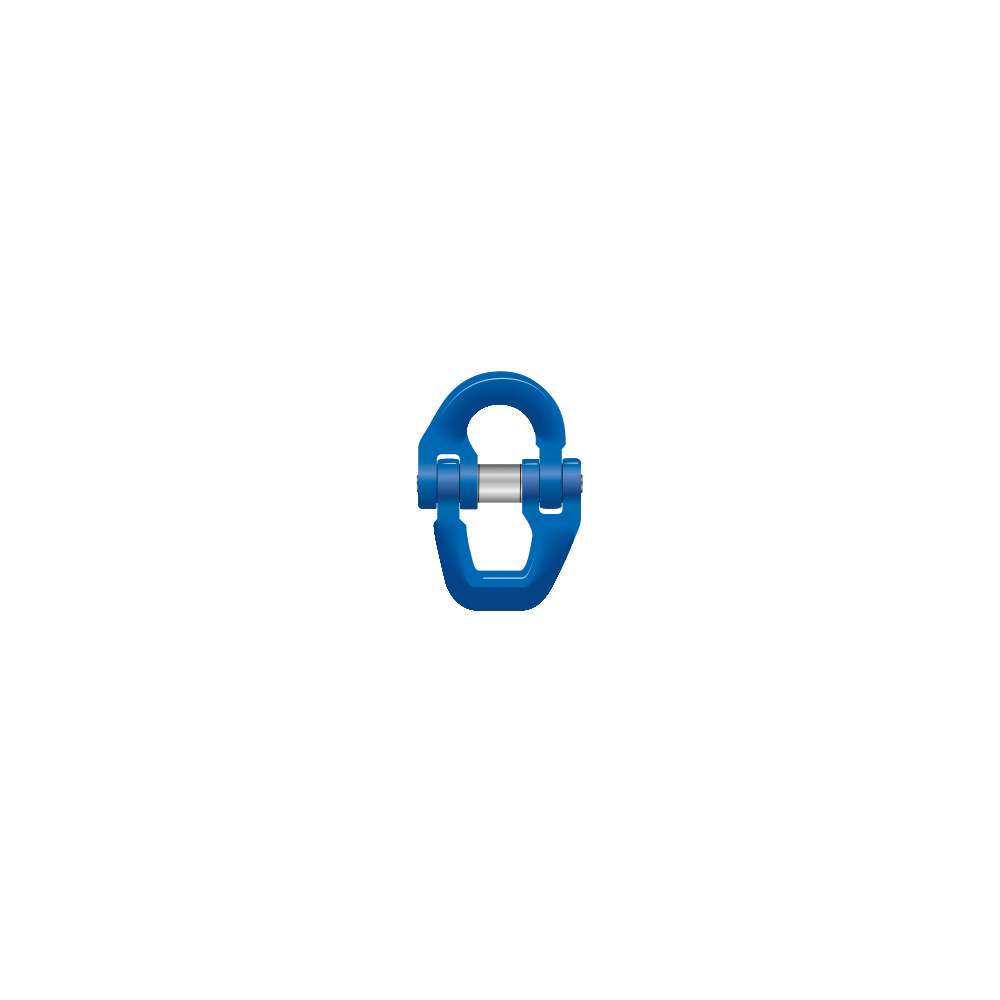

^The UMJT Green Pin Tycan connecting link is used for grade 100 Tycan slings. The GR100 connecting link is made of alloy steel, hardened and tempered with a blue finish.
The connecting link is a lifting accessory designed to connect sling accessories to the chain or rope. The connecting link can be used on chain slings or textile slings.
The safety coefficient of the head link is 4 times the WLL.
Product details

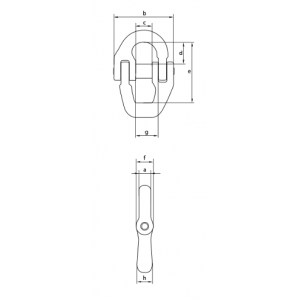

^| Référence | Pour chaîne diamètre | CMU en T | Diamètre En mm | Largeur extérieure en mm | Largeur intérieure en mm | Longueur intérieure en mm | Longueur intérieure en mm | Dia œil en mm | Largeur intérieure en mm | Dia en mm | Poids unitaire en kg |
| A | B | C | D | E | F | G | H | ||||
| GPUMJT15 | 11x15 | 2,6 | 9 | 57 | 14 | 20 | 55 | 16 | 19 | 13 | 0,21 |
| GPUMJT20 | 11x20 | 4 | 12 | 66 | 18 | 23 | 64 | 18 | 23 | 16 | 0,36 |
| GPUMJT30 | 13x30 | 6,8 | 16 | 83 | 21 | 32 | 85 | 24 | 28 | 20 | 0,75 |
Advices
The UMJT Green Pin Tycan connecting link is used for grade 100 Tycan slings. The GR100 connecting link is made of alloy steel, hardened and tempered with a blue finish.
The connecting link is a lifting accessory designed to connect sling accessories to the chain or rope. The connecting link can be used on chain slings or textile slings.
The safety coefficient of the head link is 4 times the WLL.
