Product description

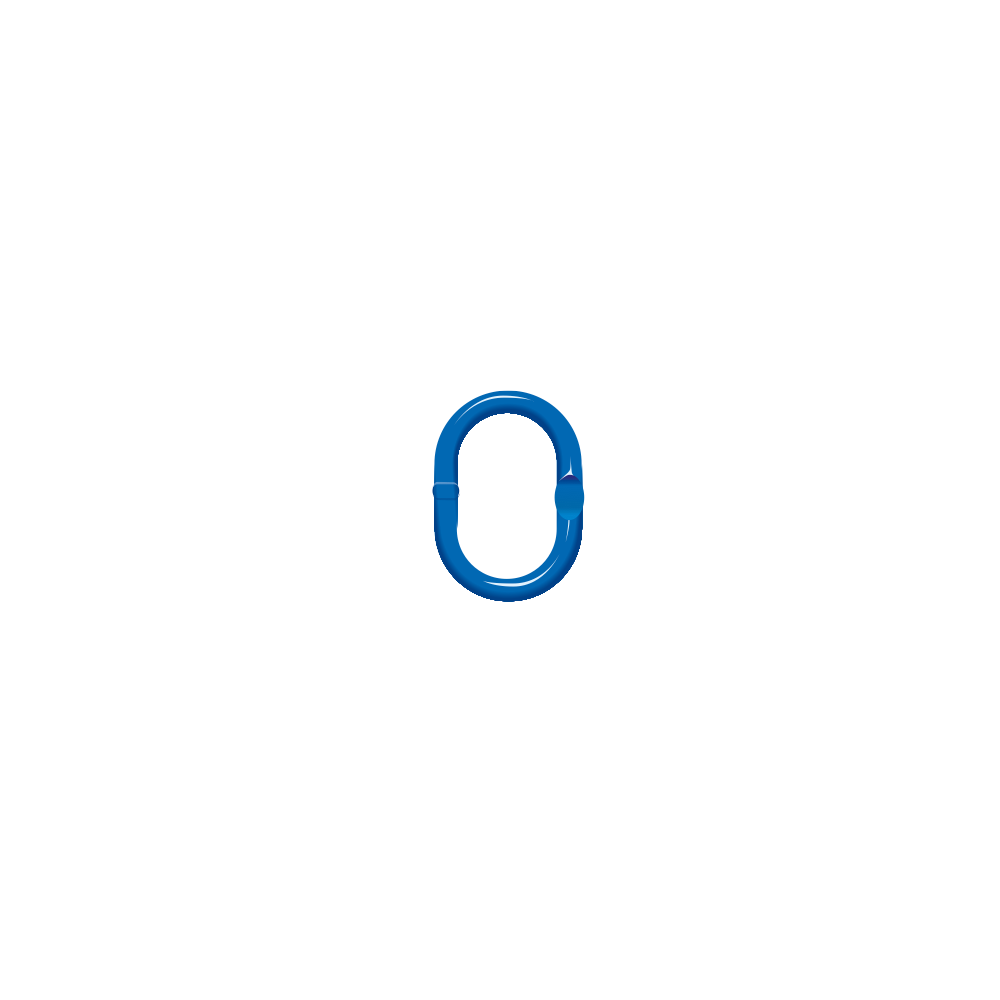

^UMS Green Pin Tycan single head link is used for Grade 100 slings. The GR100 head link is manufactured from alloy steel, hardened and tempered with a blue finish.
The head link is a lifting accessory designed to accompany chain slings, rope slings or textile slings.
The safety coefficient of the head link is 4 times the WLL.
This product exists in several variations with a CMU ranging from 5 400 to 11 200 kg.
Moreover the finishing of the mesh is in blue. Possible to integrate it on textile.
Product details

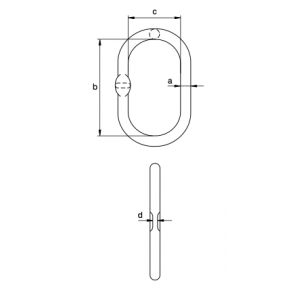

^| Référence | Diamètre en mm | Diamètre chaine 1 brin en mm | Diamètre chaîne 2 brins en mm | CMU en T | Longueur intérieure en mm | Largeur intérieure en mm | Épaisseur en mm | Poids unitaire en kg | |
| A | ≤ 45° | ≤60° | B | C | D | ||||
| UMS18 | 18 | 10 | 8 | 10 | 5,4 | 135 | 75 | 9 | 0,8 |
| UMS22 | 22 | 13 | 10 | 13 | 8,2 | 170 | 90 | 11 | 1,47 |
| UMS25 | 25 | 16 | 13 | 16 | 11,2 | 190 | 105 | 13 | 2,17 |
Advices
UMS Green Pin Tycan single head link is used for Grade 100 slings. The GR100 head link is manufactured from alloy steel, hardened and tempered with a blue finish.
The head link is a lifting accessory designed to accompany chain slings, rope slings or textile slings.
The safety coefficient of the head link is 4 times the WLL.
This product exists in several variations with a CMU ranging from 5 400 to 11 200 kg.
Moreover the finishing of the mesh is in blue. Possible to integrate it on textile.
