PRIMO WINCH STAINLESS STEEL RANGE 250 TO 1000KG
PRIMO INOX BT 251
Product description

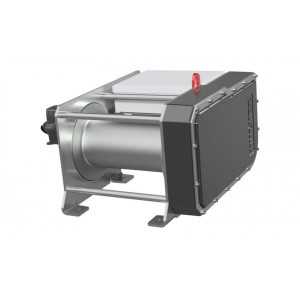

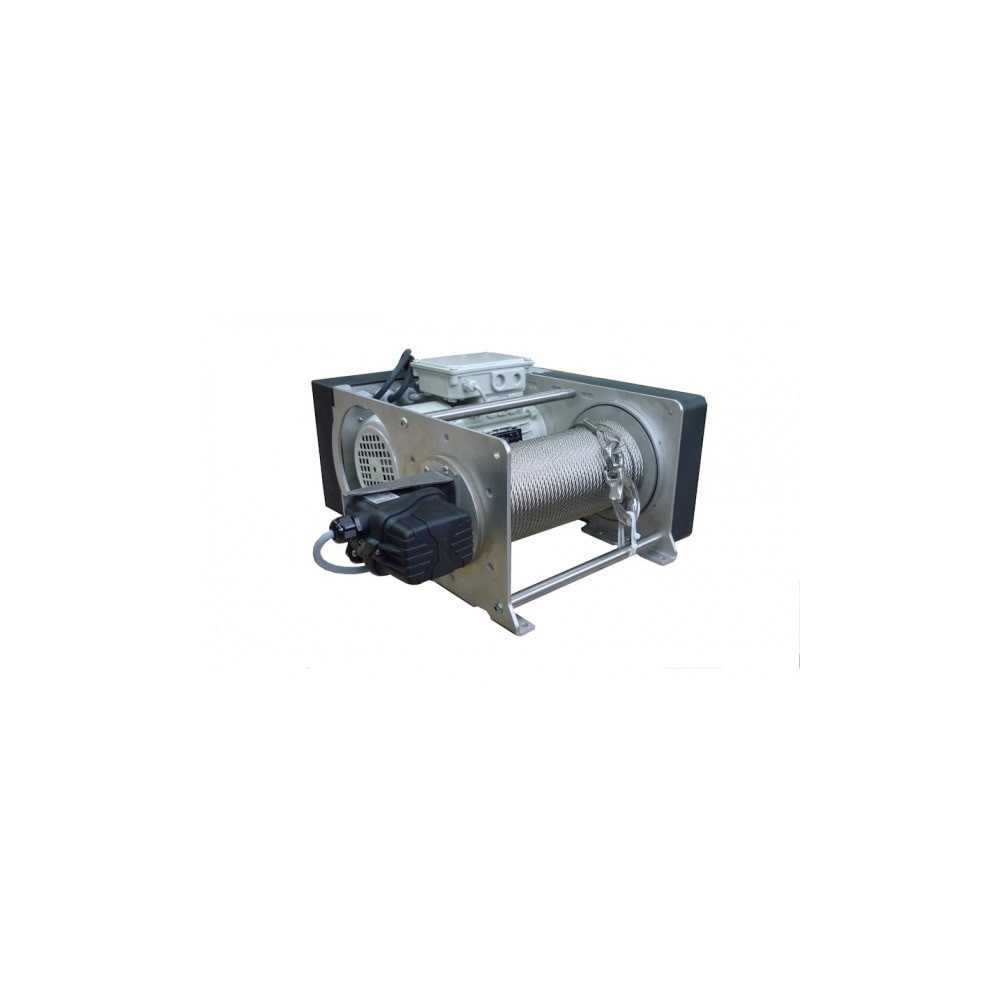

^The primo inox winch with electric motorization of the brand HUCHEZ is a lifting device which has a frame and a drum in mechanically welded stainless steel 316L.
This lifting product works with electricity in single-phase (230 V - 50 hz) or three-phase (230/400 V-50 hz) supply according to model. The limit switch of the winch is included (IP 66/67). It also has a safe cable clamp with good cable winding guidance. Moreover, this hoist can be used with a very low voltage control ensuring the protection of users against electrical and weather risks.
Finally, the primo winch is available with a GVW of 250 to 990 kg and either a single or three-phase power supply.
For more information, please contact our customer service.
Product details
^| Référence | Force couche supérieur kg | Force 1ère couche kg | Nb de couches | Capacité tambour max. m | Capacité tambour 1ère couche m | Câble ø mm | Vitesse m/min | FEM | Moteur kW | Alimentation (Ph-V) | Poids |
| PRIMO INOX BT 251 | 250 | 300 | 4 | 63 | 13 | 5 | 10,3 | 1Bm | 0,75 | 1 P-230V | 40 |
| PRIMO INOX BT 253 | 250 | 300 | 4 | 63 | 13 | 5 | 10,3 | 1Bm | 0,75 | 3 Ph-230V/400 | 40 |
| PRIMO INOX BT 401 | 400 | 400 | 3 | 39 | 11 | 6 | 8 | 1Bm | 0,75 | 1 Ph-230V | 40 |
| PRIMO INOX BT 403 | 400 | 400 | 3 | 39 | 11 | 6 | 8 | 1Bm | 0,75 | 3 Ph-230V/400 | 40 |
| PRIMO INOX BT 993 | 990 | 990 | 3 | 42 | 11 | 10 | 5,2 | 1Bm | 1,1 | 3 Ph-230V/400 | 90 |

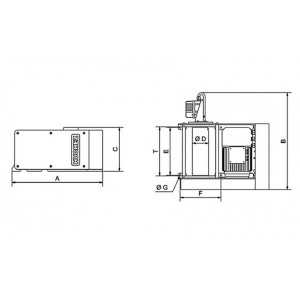

| Référence | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G Ø (mm) | I (mm) |
| PRIMO BT 250 | 476 | 528 | 244 | 85 | 250 | 214 | 9 | 257 |
| PRIMO BT 400 | 476 | 528 | 244 | 85 | 250 | 214 | 9 | 257 |
| PRIMO BT 990 | 580 | 615 | 326 | 140 | 260 | 280 | 17 | 280 |
Advices
The primo inox winch with electric motorization of the brand HUCHEZ is a lifting device which has a frame and a drum in mechanically welded stainless steel 316L.
This lifting product works with electricity in single-phase (230 V - 50 hz) or three-phase (230/400 V-50 hz) supply according to model. The limit switch of the winch is included (IP 66/67). It also has a safe cable clamp with good cable winding guidance. Moreover, this hoist can be used with a very low voltage control ensuring the protection of users against electrical and weather risks.
Finally, the primo winch is available with a GVW of 250 to 990 kg and either a single or three-phase power supply.
For more information, please contact our customer service.
